Adjustment of Rear Springs
Adjustment of Rear Springs

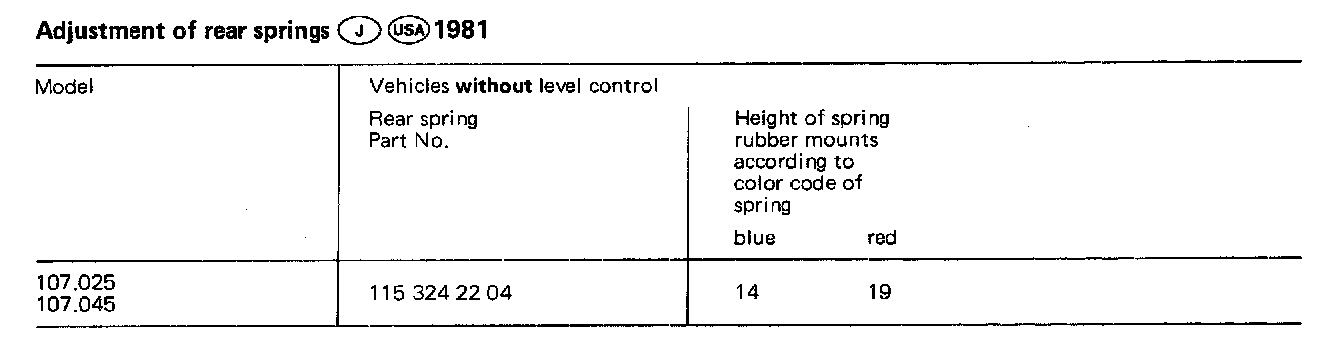

Adjustment of rear springs
A.

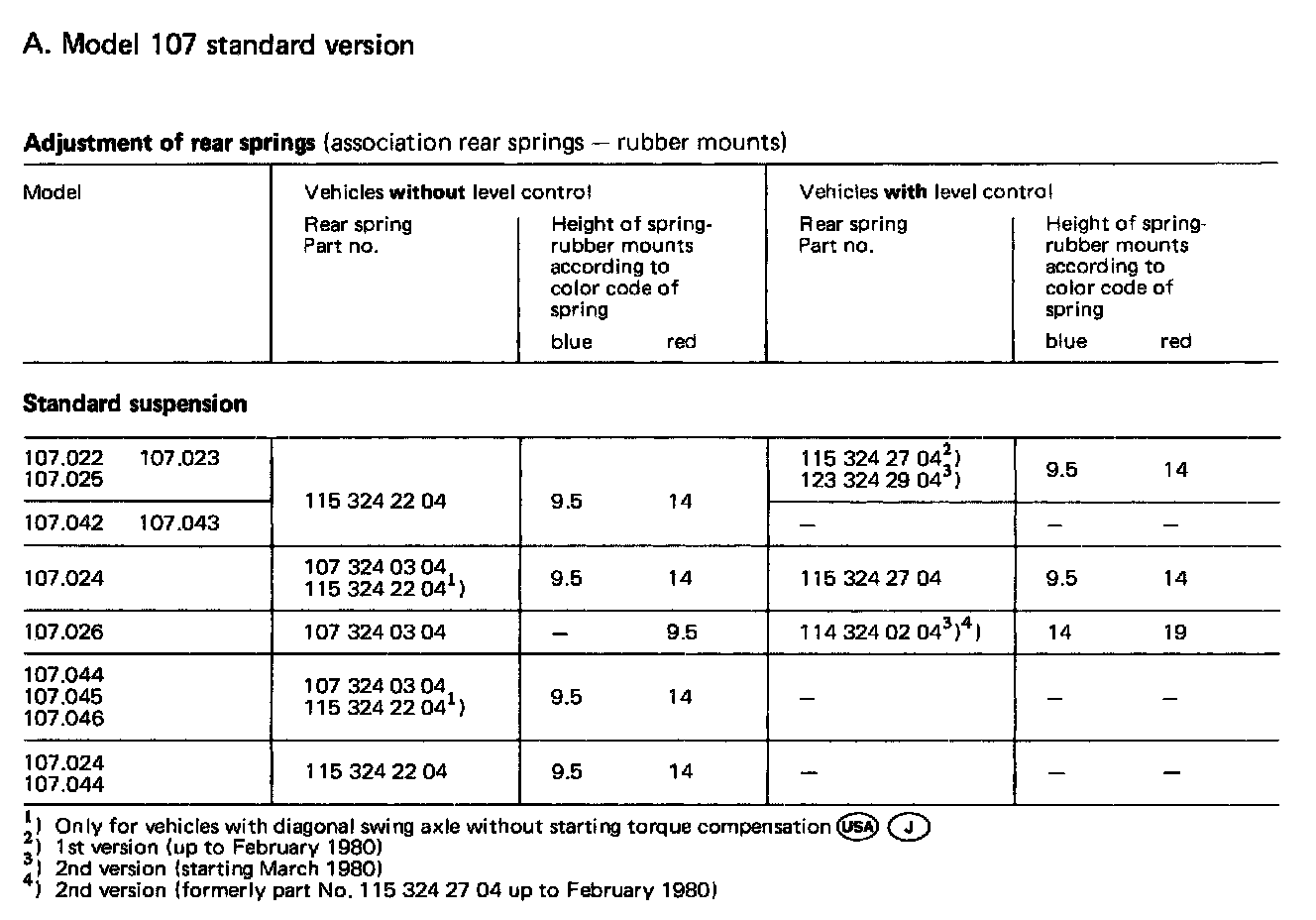

Model 107 standard version
C.
Model 107 national versions

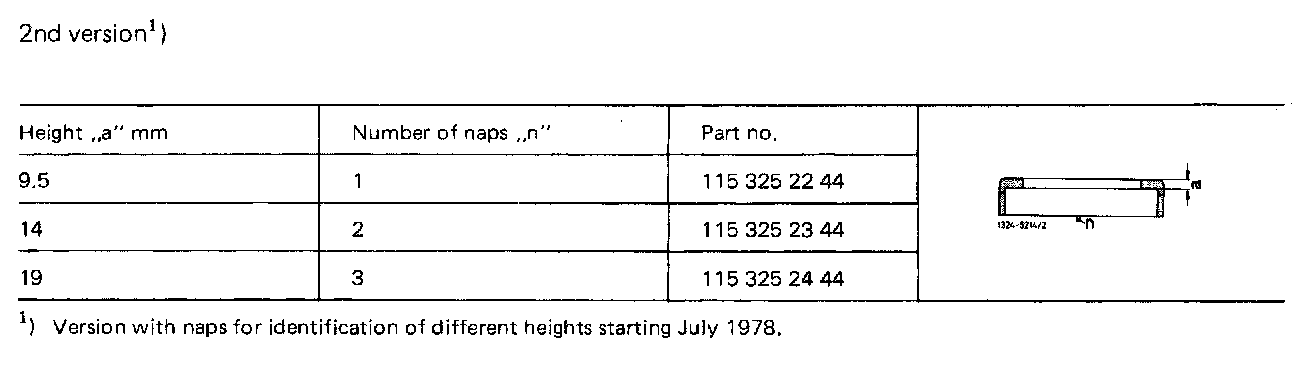

Rubber mounts for rear springs
