Exhaust Gas Recirculation/Idle Speed Control

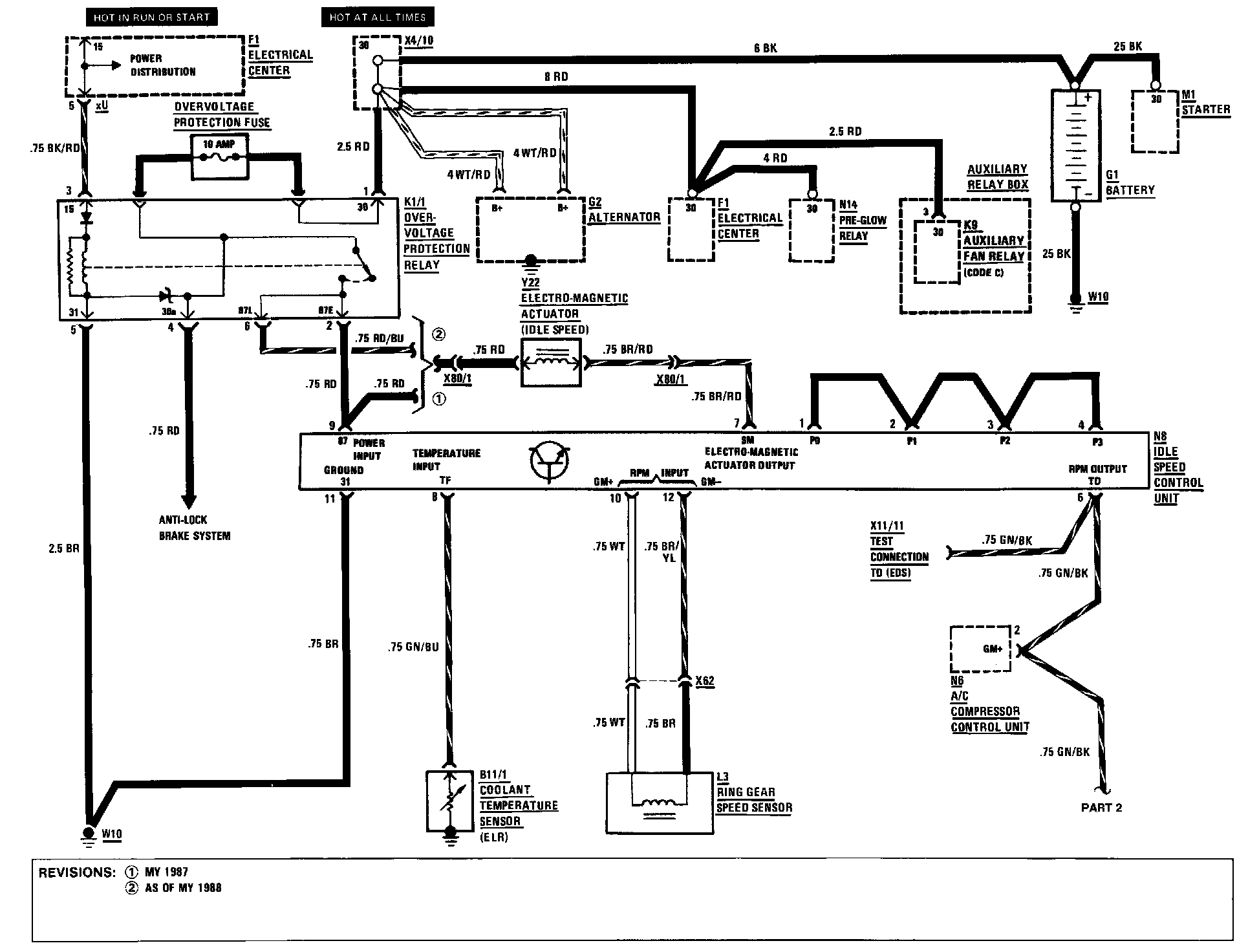

Part 1, Exhaust Gas Recirculation/Idle Speed Control:

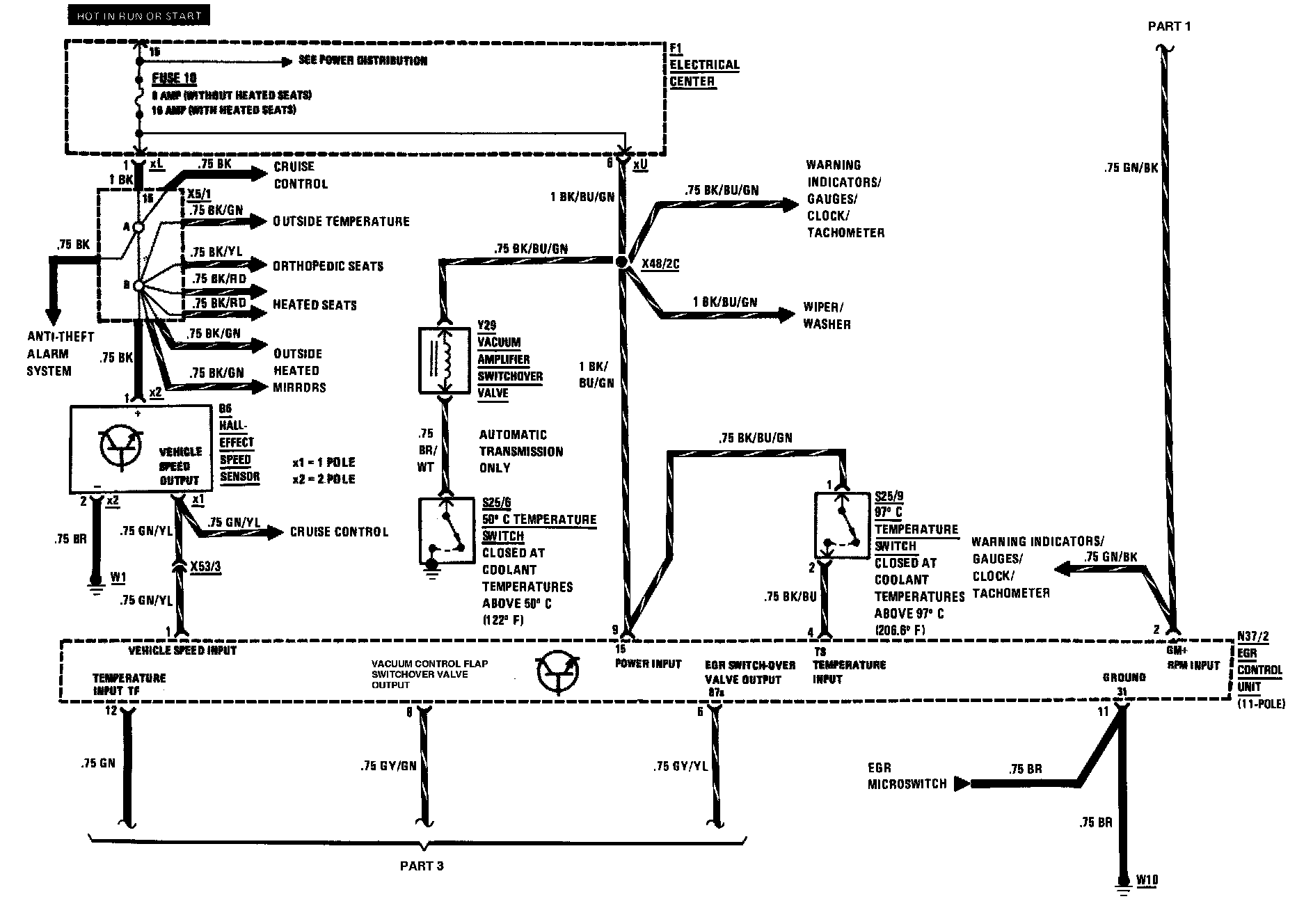

Part 2, Exhaust Gas Recirculation/Idle Speed Control:

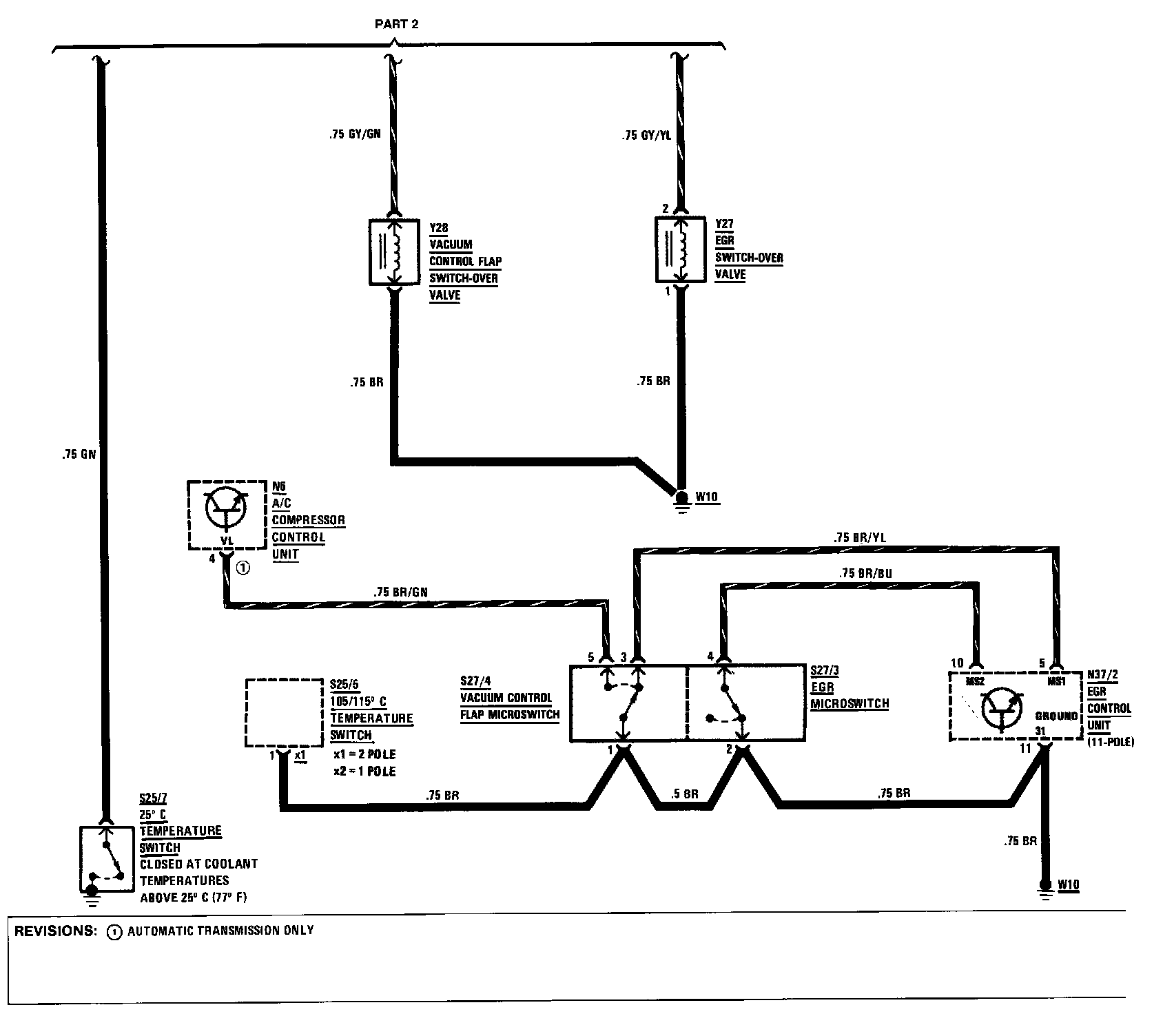

Part 3, Exhaust Gas Recirculation/Idle Speed Control:
