Fan Clutch

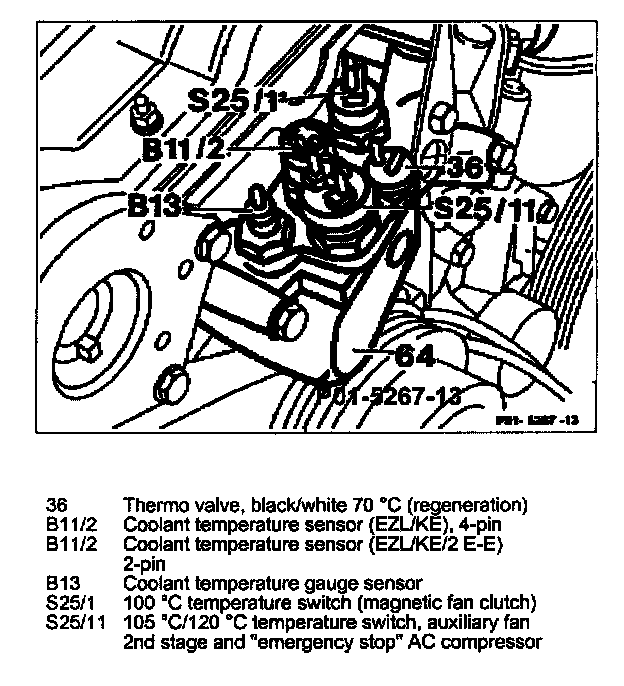

Electromagnetic Fan Clutch

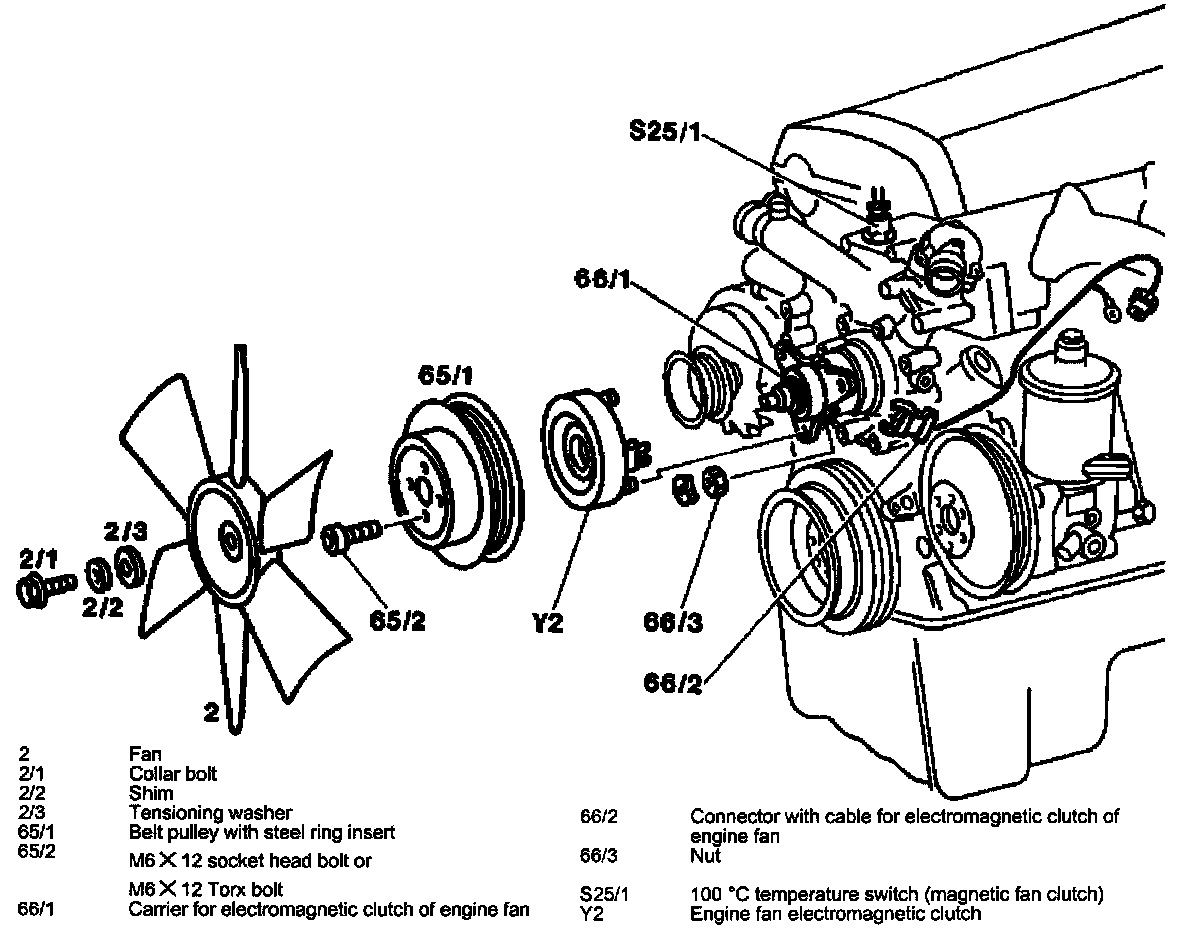

The electric cable is connected to the engine fan electromagnetic clutch (Y2) by a cable connector (66/2)






The belt pulley (65/1) on the coolant pump shaft is located in front of the engine fan electromagnetic clutch.

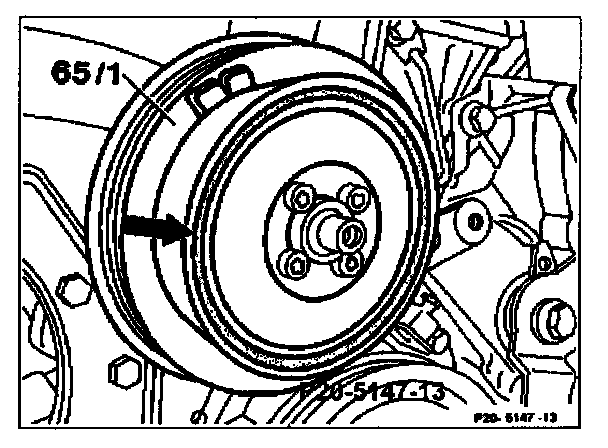

A steel ring is inserted in the belt pulley which tightens the anchor ring of the fan when the fan clutch is engaged (arrow).

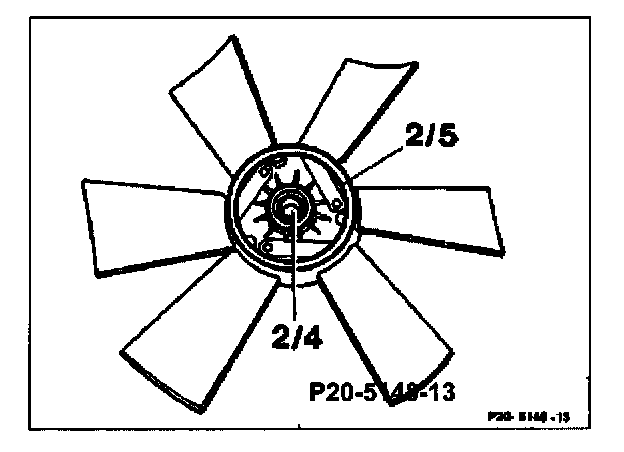

The anchor ring (2/5) and the angular-contact ball bearing (2/4) are fitted to or in the fan respectively.
