A/C Hose Assembly - Replacement: Overview

REF. NO. MBNA 83/32

TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE: October 1989

SUBJECT:
REPLACING A/C HOSE ASSEMBLY (ONE-PIECE) ON COMPRESSOR
MODEL 201.034 (190E 2.3-16) M.Y. 1986-1987

A new A/C hose assembly has been developed.

The one-piece assembly now incorporates a muffler to reduce compressor-refrigerant noises.

The procedure for installing this new version in the above-listed model is described in the attached Work Instructions # 244.

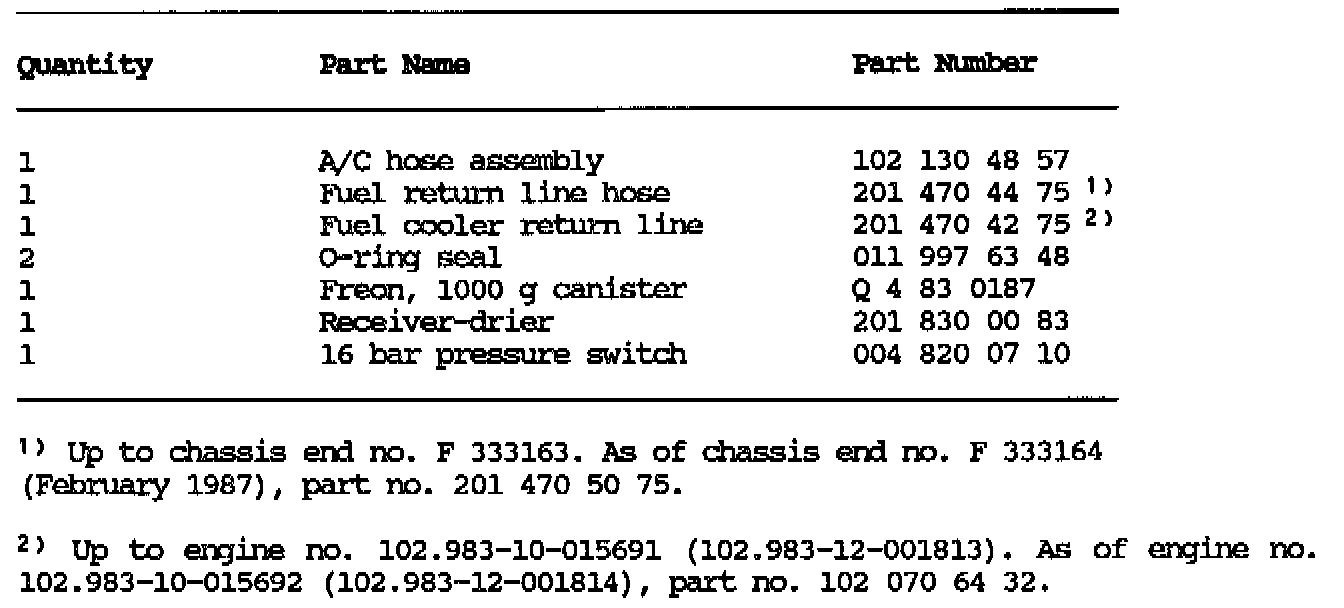

Parts Information





In Case of Warranty
