Speedometer Replacement

Removal, reinstallation of speedometer

Preceding operation:
- Remove instrument cluster. Remove/Install Instrument Cluster

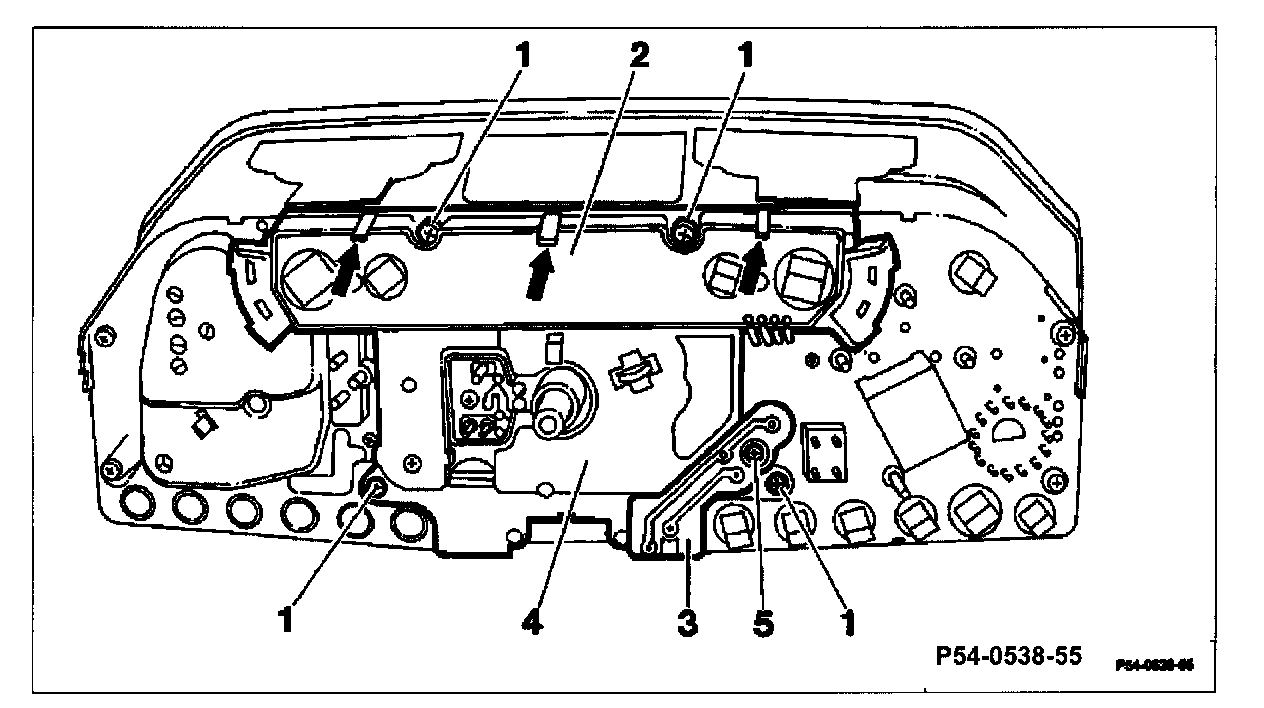

A. Speedometer with lamp holders 1st and 2nd versions




1. Unscrew phillips screw (5).
2. Remove regulating resistor (3).
3. Unclip bulb holder (2).
4. Unscrew phillips screws (1).
5. Remove speedometer (4).

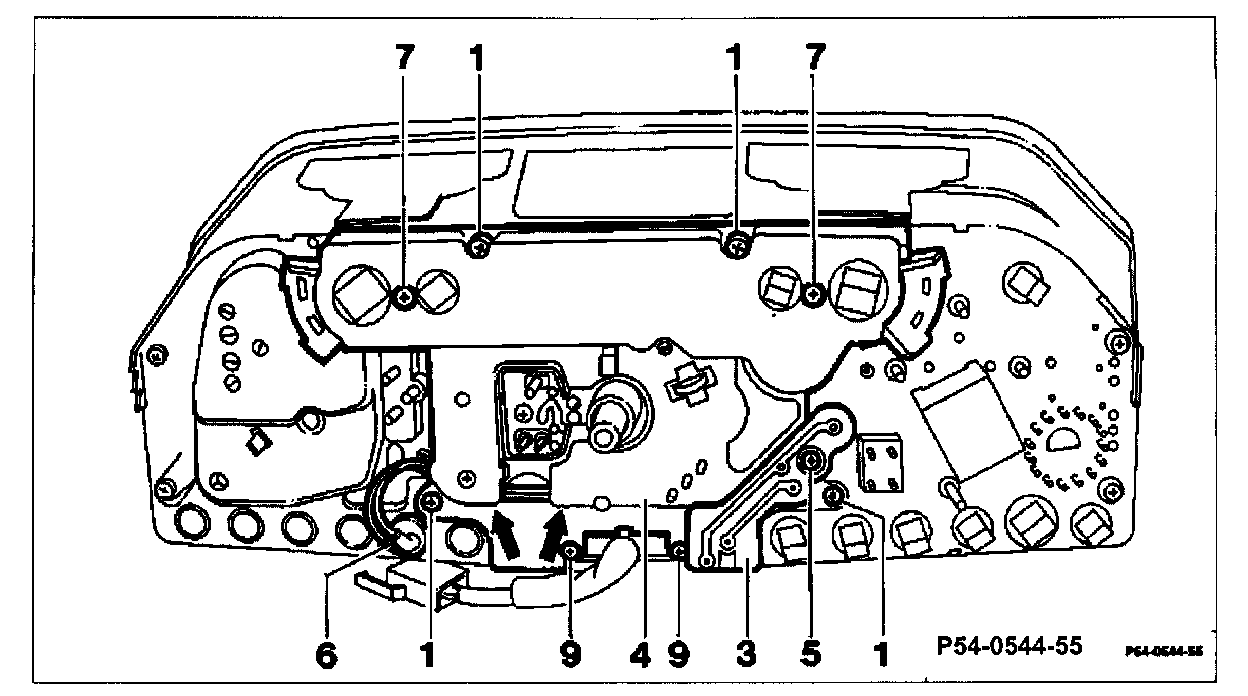

B. Speedometer with lamp holder 3rd version




1. Uncrew phillips screw (5).
2. Remove regulating resistor (3).
3. Unscrew phillips screws (9) (vehicles with outside temperature gauge).
4. Pull out indicator lamp (6) for windshield washing water level.
5. Unclip line (arrows).
6. Unscrew screws (7).
7. Pull off lamp holder (2).
8. Unscrew phillips screws (1).
9. Remove speedometer (4).
