GF00.19-P-7000A Female Contacts and Contact Pins, Installation Survey, As-Built Configuration

GF00.19-P-7000A Female Contacts And Contact Pins, Installation Survey, As-built Configuration
- MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 204, 208, 209, 210, 211, 215, 216, 219, 220, 221, 230, 240, 245, 251, 414, 461, 463

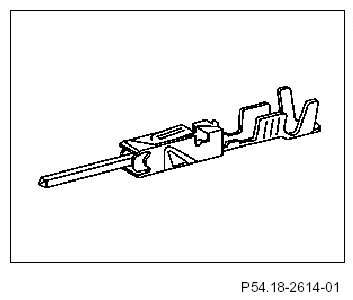

Junior power timer (JPT) pin

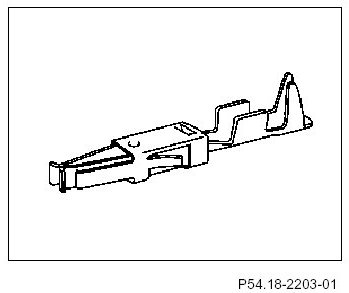

Junior power timer (JPT) bushing

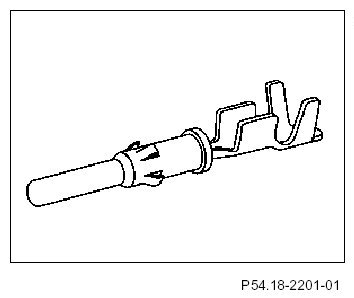

Standard power timer SPT) pin

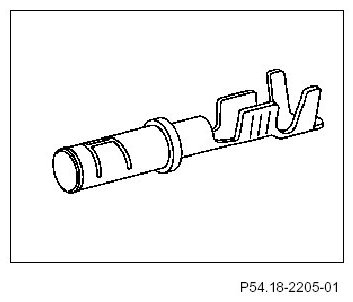

Standard power timer (SPT) bushing

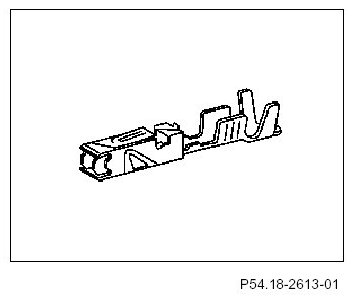

Micro-Timer (MT) 3 bushing

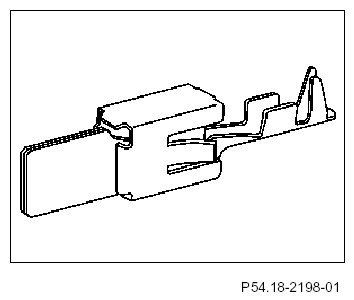

Maxi-power timer (MPT) bushing







E95, female







Multi-contact point (MCP) bushing







Micro quadlock system (MQS) male contact







Micro quadlock system (MQS) female contact







Sensor spade-type contact (SLC) pin







Sensor spade-type contact (SLC) bushing







Spade-type sensor contact (LSC) pin







Spade-type sensor contact (LSC) bushing







Siemens ELO pin







Siemens ELO bushing







Round plug contact RK)-2.5 solder male contact







Round plug contact (RK)-2.5 solder female contact







Round plug contact RK)-2.5 variant-1-pin







Round plug contact (RK)-2.5 variant-1 bushing







Spade-type contact system (LKS)-1.5-pin







Spade-type contact system (LKS)-1.5 bushing







Angled-flat contact with auxiliary spring







Mini spade-type contact (MLC)-1.2-pin







Mini spade-type contact (MLC)-1.2 bushing







Mini spade-type contact (MLC)-1.2- USC bushing







YAZAKI 1.5 system







YAZAKI 6.3 system







Micro quadlock system MQS) male contact for flat conductor model FFC







Micro quadlock system (MQS) female contact for flat conductor model FFC







Micro quadlock system (MQS) male contact for flat conductor model FPC







Micro quadlock system (MQS) female contact for flat conductor model FPC







Miniature double flat spring contact (MDK) female connector







Double flat spring female contact (DFK)
