Outside Temperature Gauge - Replacement

REF. NO. MBNA 54/28

To: OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE: July 1989

SUBJECT:
OUTSIDE TEMPERATURE GAUGE REPLACEMENT
MODEL 124, M.Y. 1986 - 1987

When replacing the outside temperature gauge in the subject vehicles, the harness connector must be changed to accommodate the replacement gauge.

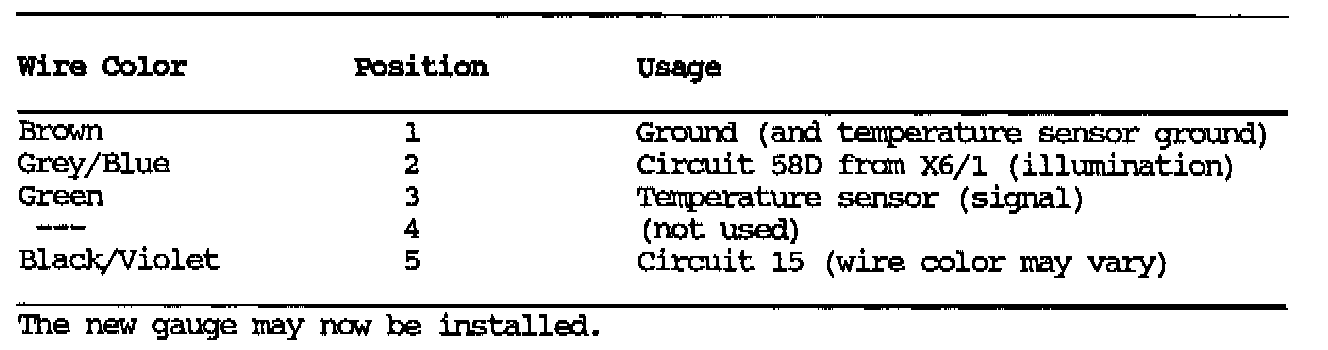

Remove the four 2.5 mm diameter contacts from the existing four-pole harness connector and insert them into the new five-pole harness connector as listed.

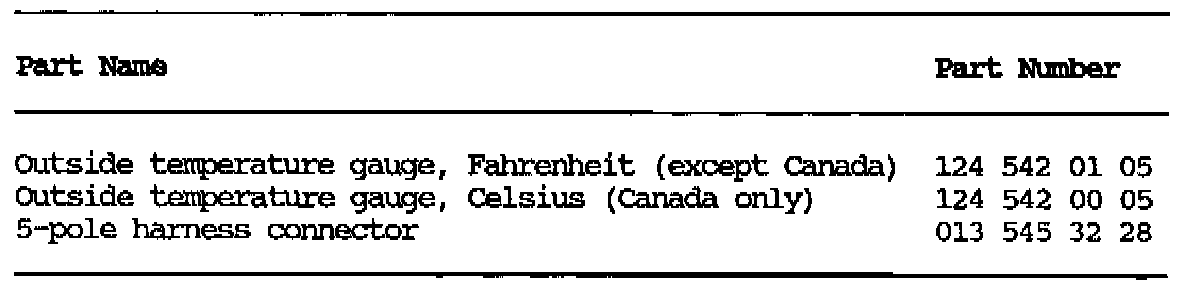

Parts Information

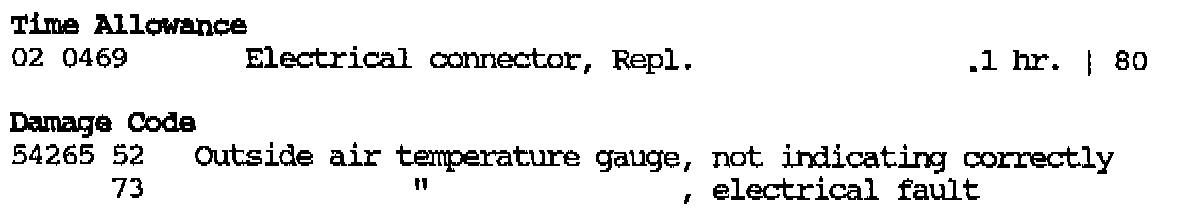

In Case of Warranty:
