87mercedes03TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS
DATE: January 1987 (supersedes MBNA 91/4a, Aug. 1986) REF. NO. MBNA 91/4b
SUBJECT: SUBSEQUENT INSTALLATION OF ANCHOR AND/OR LATCH PLATES FOR TETHER STRAP (TO SECURE CHILD RESTRAINTS ONLY) MODELS 107, 123, 124, 126 AND 201
Please discard your copy of MBNA 91/4a, August 1986. Do not discard the Work Instructions.
To help reduce the risk of injury in collisions or sudden maneuvers, MercedesBenz recommends that all vehicle occupants, especially infants and children, be restrained whenever riding in cars. Since all states and Canadian provinces have laws requiring the use of restraints, you may be approached by customers with certain types of child restraints, having a top tether strap, who require assistance in anchoring these restraints.
Child Restraints are typically designed for children weighing between 18 to 40 pounds and whose height is 40 inches or less. Infant Restraints are typically designed for children weighing 20 pounds or less and whose height is 26 inches or less.
Please make your customers aware that they should use only those restraints that conform to U.S. or Canadian Motor Vehicle Safety Standard 213. Compliance with this standard would be indicated cn the label affixed to the restraint, and in the instruction manual provided with the restraint.
Customers should further be reminded to carefully follow the instructions included with their infant/child restraints and be advised that when available, the rear center seating position is the safest position for placement of the restraint.
Please also advise customers, THAT UNDER NO CIRCUMSTANCES MAY ANY RESTRAINT BE USED IN THE CARGO AREA BEHIND THE DRIVER'S AND PASSENGER'S SEATING POSITIONS IN MODEL 107 VEHICLES, AS THIS LOCATION IS NOT A DESIGNATED SEATING POSITION FURTHER, CUSTOMERS SHOULD BE MADE AWARE THAT INFANT AND CHILD RESTRAINTS ARE INTENDED ONLY FOR USE IN DESIGNATED FORWARD FACING SEATING POSITIONS. THIS PRECLUDES THEIR USE WITH THE OPTIONAL REAR FACING BENCH SEAT IN MODELS 123.193 AND 124.193.
Subsequent Installation of Anchor and/or Latch Plates for Tether Strap (To Secure Child Restraints Only)
Models 107, 123 and 126 Model Year 1983 and Prior
On these models, both the anchor and latch plates must be installed. Refer to Work Instructions, No. 159a for procedure.
Models 107, 123, 126 and 201 As of M.Y. 1984 Model 124 As of Model Year 1986
As of model year 1984 (refer to Introduction Manual), all models are equipped with anchorages for the tether strap latch plate. Refer to Work Instructions. No. 160a for latch plate installation.
NO. 159a
DATE: August 1986 (Supersedes W.I. 159, October 1985) GRP. 91
SUBJECT: SUBSEQUENT INSTALLATION OF ANCHOR AND LATCH PLATES FOR TETHER STRAP (TO SECURE CHILD RESTRAINTS ONLY) MODELS 107,123,126 MODEL YEAR 1983 AND PRIOR
NOTE: All dimensions are in millimeters.
Model 107
Figure 1 - Remove Carpeting on Rear Wall:
1. Open the soft top storage compartment cover and unfold the top forward.
2. Carefully remove carpeting on rear wall (Figure 1).

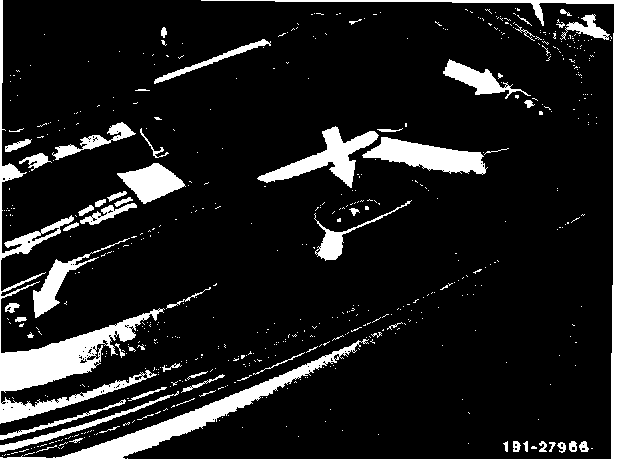

Figure 2 - Anchorage Point Location in Model 107 (Use Passenger Side Only):
3. Mark installation location (arrow) for anchor plate on back side of rear wall (directly behind the passenger seat) (Figure 2).
4. Using the anchor plate (part no. 123 860 00 11) as a template, mark hole locations for pop rivets and mounting screw.
5. Drill 4.2 mm holes for the pop rivets and a 12 mm hole for the mounting screw.
Figure 3 - Fasten Anchor Plate and Cement Protective Cover:
6. Fasten the anchor plate with pop rivets (4 mm diameter) to the inside of the soft top compartment wall (Figure 3).
7. Cement protective cover (arrow) over the anchor plate to avoid damage to soft top (Figure 3).
8. Place carpeting against rear wall, locate hole for mounting screw and cut carpeting as required.
9. Cement carpeting to rear wall.
10. Fasten latch plate with mounting, screw to anchor plate.
11. Lower soft top and close storage compartment cover.
Models 123.133/153
1. Remove shelf below rear window (job no. 68-458).
2. Remove vacuum reservoir for central locking system.

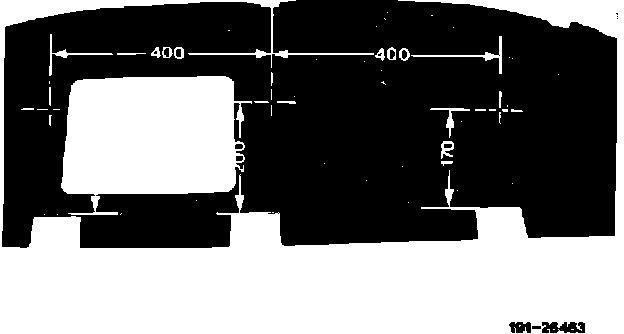

Figure 4 - Anchor Plate Installation Locations:
3. The anchor plate (part no. 123 860 00 11) can be installed at either of the three locations (right, middle, left) shown in Figure 4.

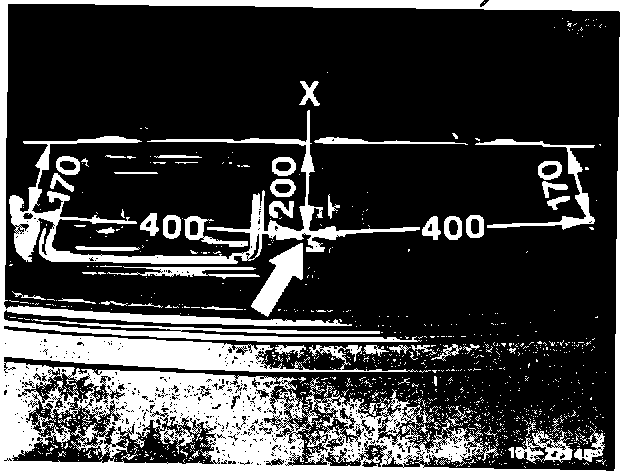

Figure 5 - Punch Out Perforated Cutout:
Middle location:
4. Punch out perforated cutout (a) for the mounting screw from trunk side (Figure 5).
a. Place anchor plate with longer side perpendicular to driving direction, mark holes for pop rivets and drill 4.2 mm holes.
WARNING! Be careful not to damage fuel tank or fuel lines while drilling.
b. Fasten anchor plate with pop rivets (4 mm diameter) to bottom of shelf.
Left or right location:
5. Place anchor plate with the longer side parallel to driving direction and mark holes for pop rivets and mounting screw.
a. Drill 4.2 mm holes for pop rivets and a 12 mm hole for the mounting screw.
b. Fasten anchor plate with pop rivets (4 mm) to bottom of shelf.
Figure 6 - Punch Out a Hole in the Shelf Insulation:
6. Punch out a hole (15 mm diameter) in the shelf insulation, at the selected location (Figure 6).
7. Install shelf carpeting.
8. Fasten spacer (part no. 100 991 04 40) and latch plate with mounting screw.
9. Install and connect vacuum reservoir.
10. Reinstall parts removed in step 1.
Model 123.193

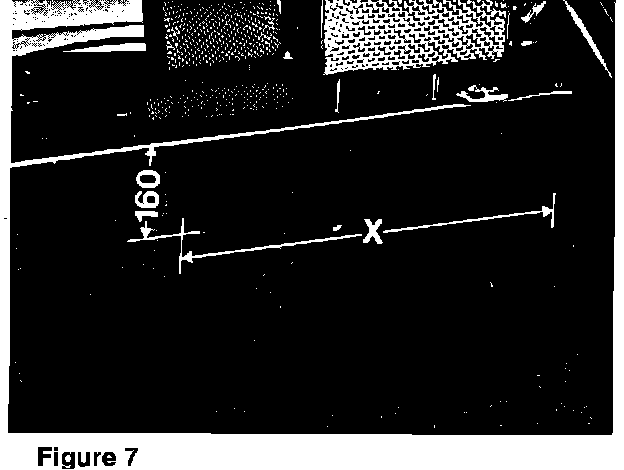

Figure 7 - Locate Existing Anchorage Point on Right Rear Seat Back:
Middle location:
1. Locate existing anchorage point on right rear seat back (x=1/2 width of seat back) and punch a hole in the liner (Figure 7).
2. Enlarge hole in latch plate to 12 mm and fasten latch plate to seat back with mounting screw. Left or right location:
Figure 8 - Remove Seat Belt Link from its Anchorage Point:
1. Loosen wheel housing cover (left or right).
2. Remove seat belt link (5) from its left or right anchorage point (Figure 8).
3. Enlarge hole in latch plate to 12 mm and fasten under the seat belt link.
Model 126
Figure 9 - Fasten Anchor Plate to Bottom of Shelf:
Figure 10 - Three Locations on Bottom of shelf to Fasten Anchor Plate:
1. Remove shelf below rear window (job no. 68-458).
2. Fasten anchor plate (part no. 123 860 00 11) with two 4 mm pop rivets to bottom of shelf (Figure 9) at either of the three locations (left, middle, right) shown in Figure 10.

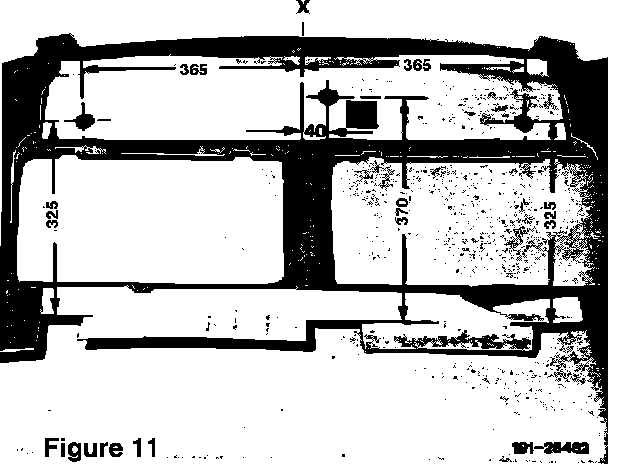

Figure 11 - Punch Out Corresponding Hole in Shelf Carpeting:
3. Punch out corresponding hole in shelf carpeting (Figure 11).
4. Install shelf carpeting, seat back, and rear seat.
5. Fasten latch plate and spacer (part no. 100 991 04 40) with mounting screw.
Parts Information
Parts Information
Part Name Part Number
Anchor plate 123 860 00 11
Spacer 100 991 04 40
Latch plate Supplied with restraint
Mounting screw Supplied with restraint
Screw plug 123 997 00 31*
*To be used when child restraint is no longer required.
