Seat Belts - Installation of Locking Retractors: Overview

88mercedes02

TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE: May 1988
REF. NO.. MBNA 91/10
SUBJECT: SUBSEQUENT INSTALLATION OF AUTOMATIC LOCKING RETRACTORS FRONT SEAT BELTS MODELS 108 AND 109
The original equipment two piece shoulder/lap seat belt for models 108 and 109 is no longer available as a spare part. However, a replacement automatic locking retractor seat belt can be installed.

Note: Vehicles originally not equipped with a seat belt system, can also be equipped with the automatic locking retractor system.


The automatic locking retractor system requires four anchorage points:

- one anchorage at the tunnel for the lock.
- three anchorages at the "B" pillar for the reel.

Note: All existing factory installed anchorages have SAE threads.

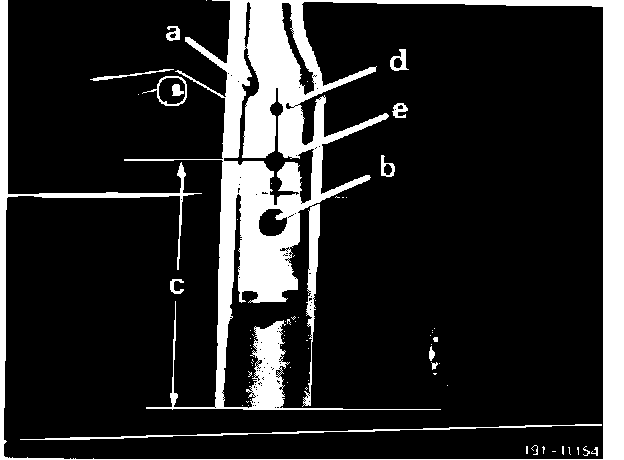

FIGURE 4 - FOURTH ANCHORAGE:

Vehicles With Existing Two Piece shoulder/Lap seat Belt System

The original shoulder/lap seat belt system used only three anchorage points. The fourth anchorage point needed for the automatc inertia reel system already exists in the "B" pillar approximately 255 mm from the base (Fig. 4, 1st version and 2nd version "B" pillar, respectively).

This anchorage point will accept a SAE 7/16"-14 UNC threaded fastener.

Remove the "B" pillar cover to verify the exact location of the fourth anchorage before piercing a hole into the pillar cover for access.
Note: It is believed that the following vehicles are equipped with a threaded fourth anchorage point. However, to guarantee accuracy, remove the "B" pillar cover and visually verify the existance of the fourth anchorage point.


Sales Designation Model As of Chassis End Number


280S 108.016 004915
280SE 108.018 004190
280SEL 108.019 004323
280SE 4.5 108.067 start of production
280SEL 4.5 108.068 start of production

300SEL 109.016 000226
300SEL 6.3 109.018 start of production
300SEL 3.5 109.056 start of production
300SEL 4.5 109.057 start of production

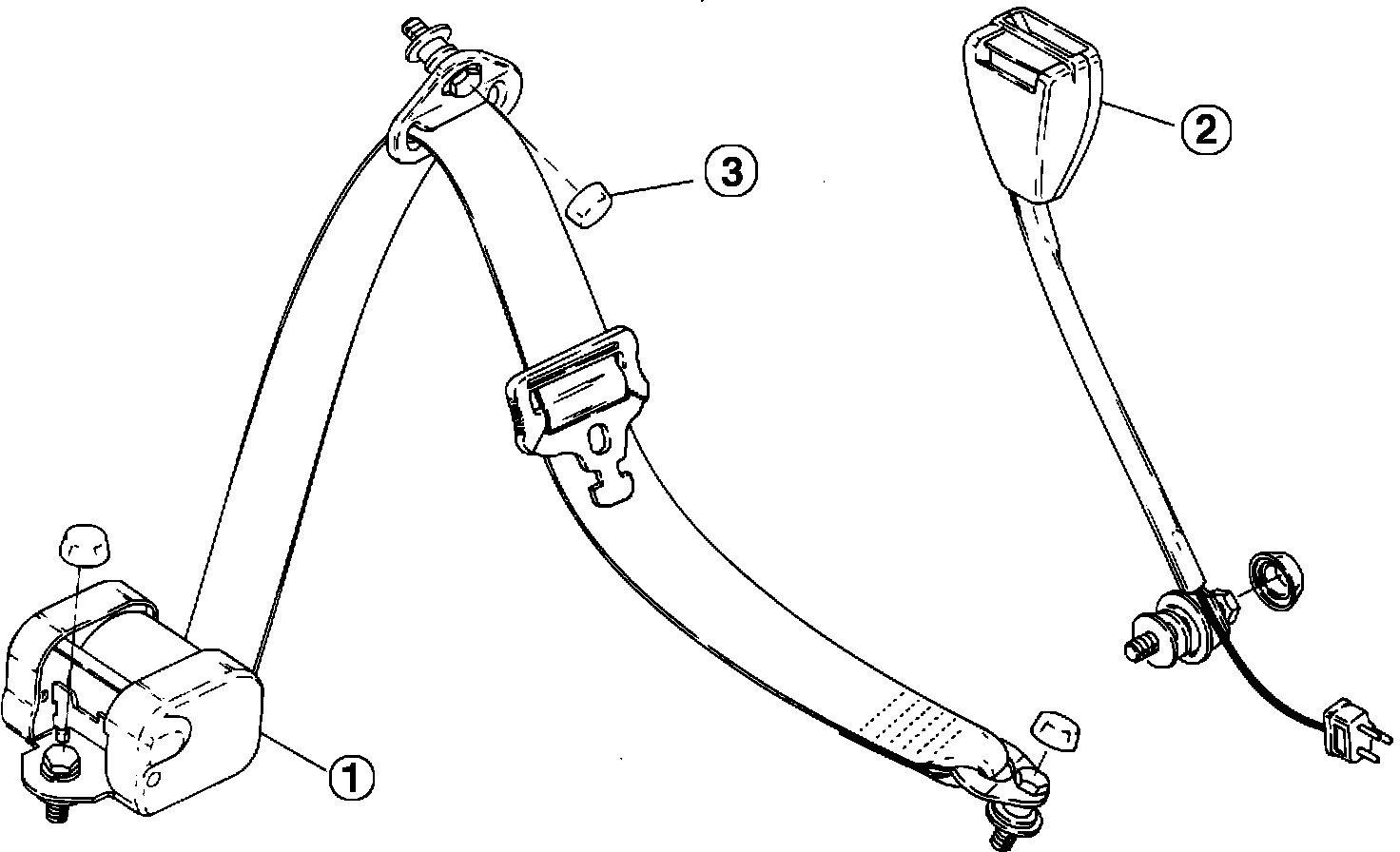

Parts Information


Item Quantity Part Name Part Number


2 per car Seat belt kit 114 860 16 85

Kit includes:

1 1 Retractor assembly (incl. 3 bolts)
2 1 Buckle assembly (incl. 1 bolt)
3 4 Trim cap
