Blower Motor: Service and Repair

Removal
1 Remove cover on right below instrument panel (righthand steering left)

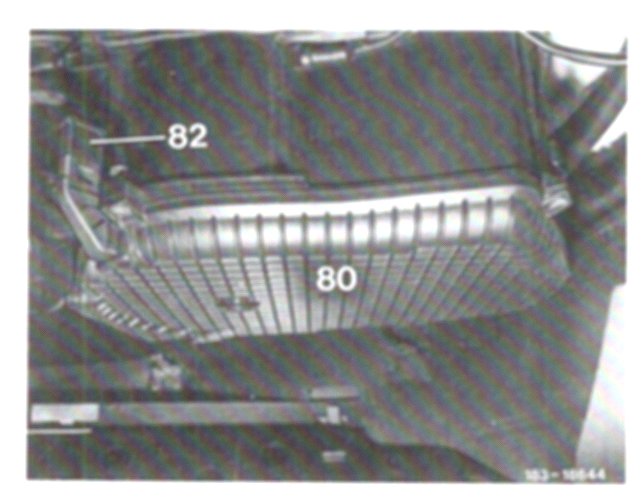

2 Remove cover (80) for blower cover.
3 Disconnect 2-pole coupling (82).







4 Remove bolts (81) on blower motor flange.
5 Remove blower motor (11) from blower housing.

Installation
6 Insert blower motor (11) in blower housing and screw on with bolts (81).
7 Install cover (60) for blower cover.
8 Connect 2-pole coupling (82) and check function of heater blower.
9 Install cover on right below instrument panel (righthand steering left)
