Suspension Spring ( Coil / Leaf )
>>
Adjustment of Rear Springs
Adjustment of Rear Springs
Adjustment of rear springs

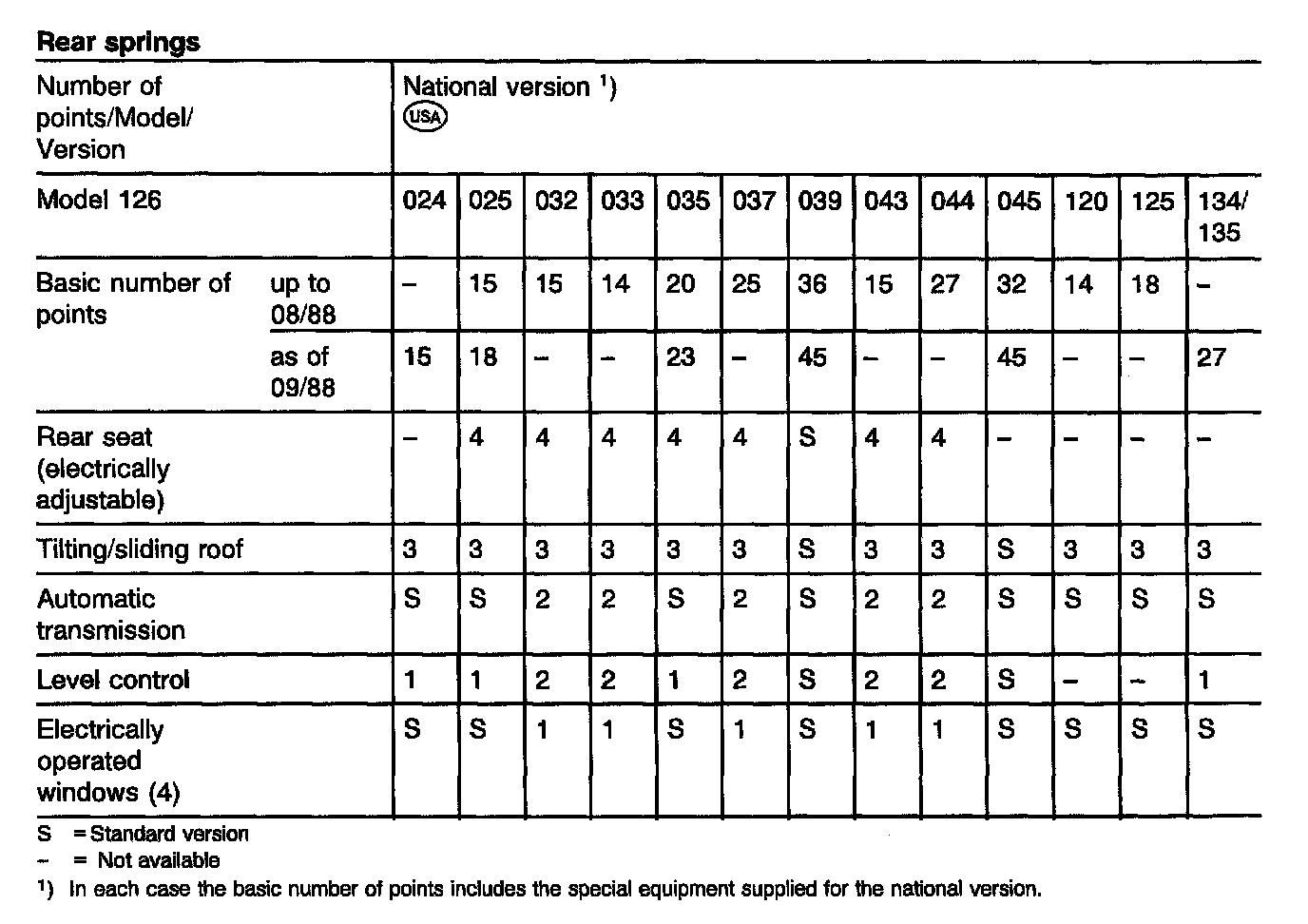

Cross reference of rear springs - rubber spacers
