Condenser Fan: Description and Operation

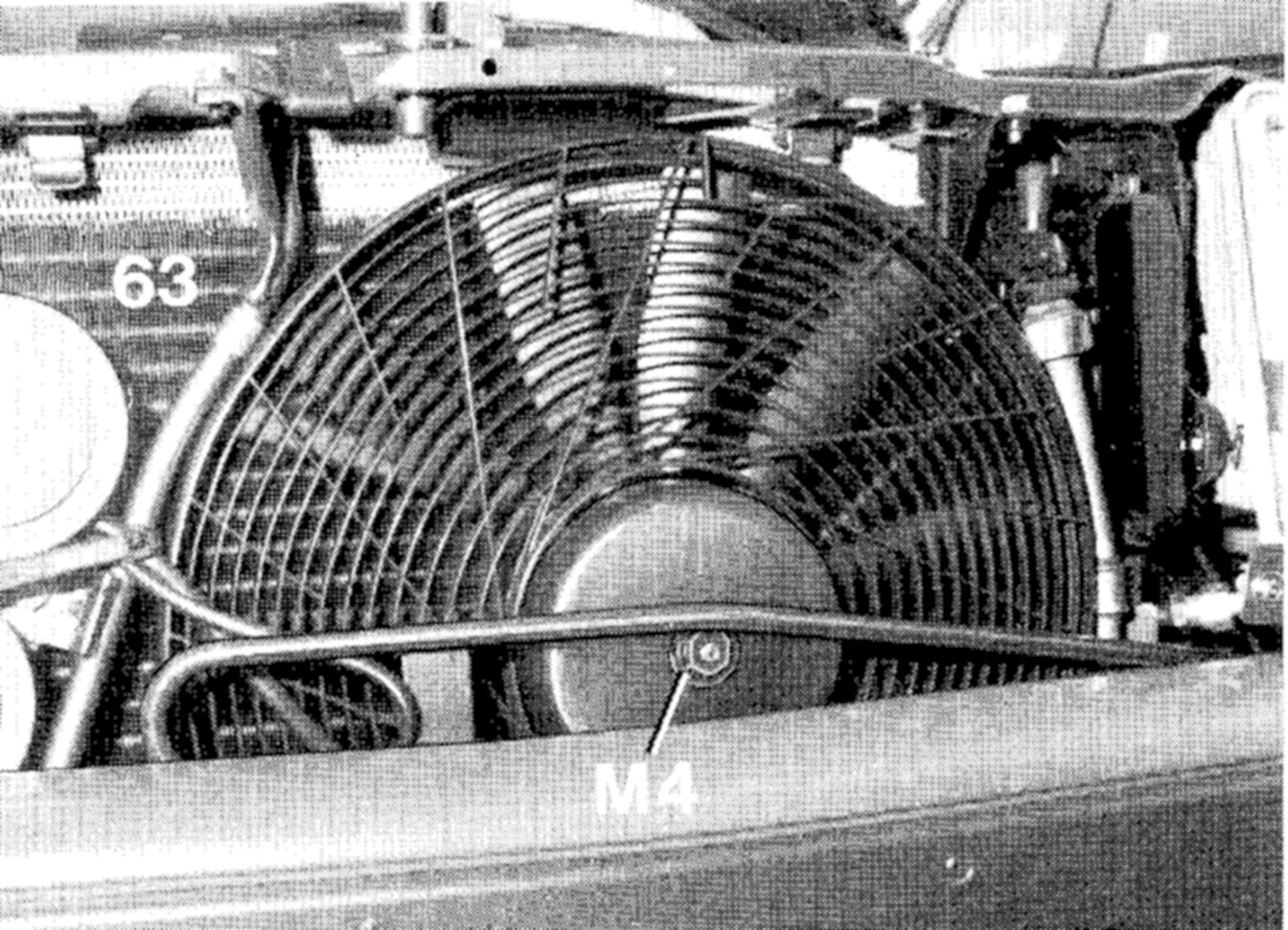

Auxiliary Fan Location:

PURPOSE

The auxiliary cooling fan, which is located in front of the A/C condenser, provides additional air flow across the condenser and radiator to assist during periods of high thermal load.

Relay Location:

OPERATION

Auxiliary fan activation takes place in two stages:

^ Low speed is activated by the dual function pressure switch in the receiver drier at approx. 290 psi (20 bar), via relay K10 and a pre-resistor.

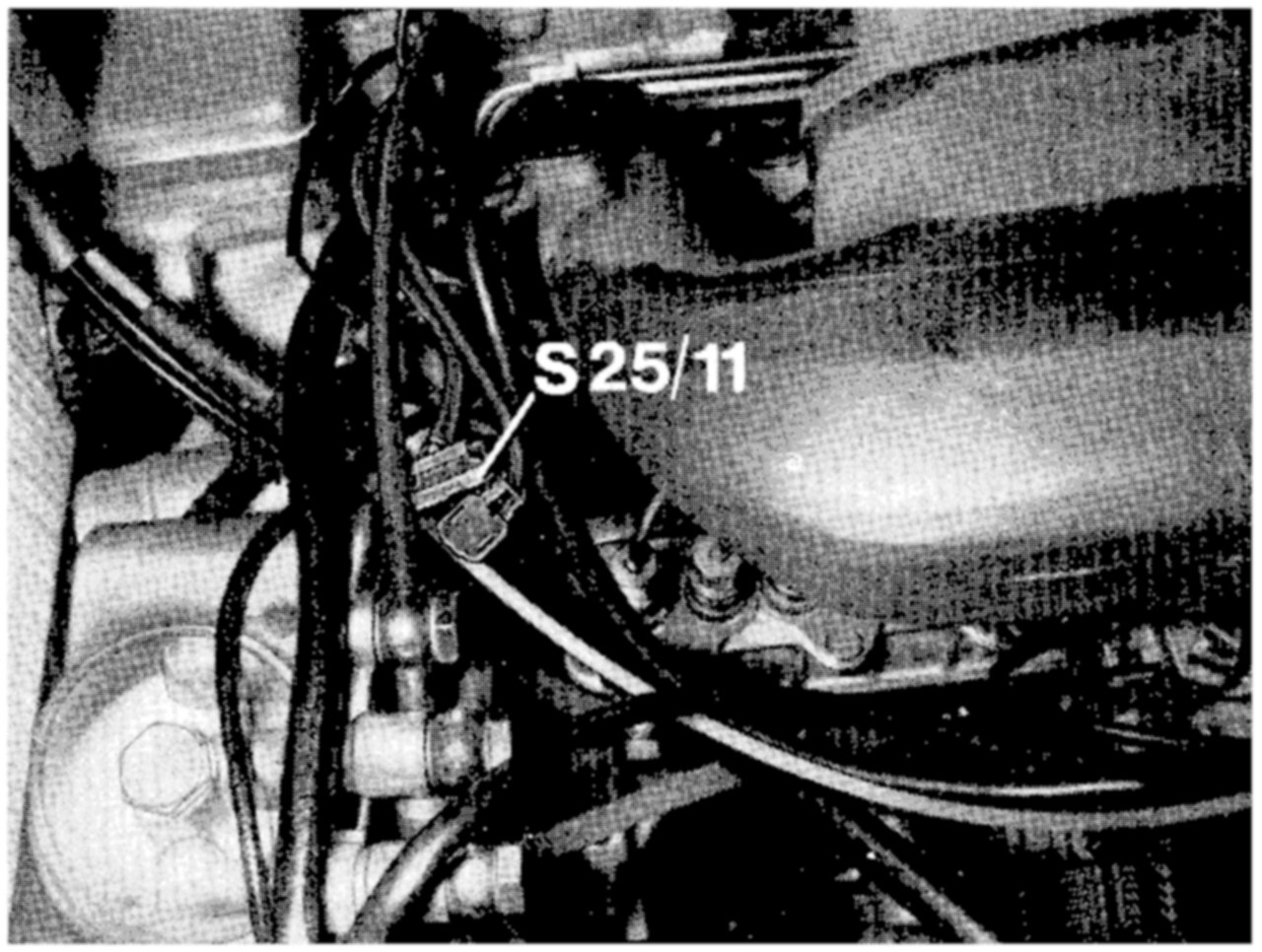

Coolant Temperature Switch (S25/11):

^ High speed is activated by the 105/120°C temperature switch at an engine coolant temperature of approx. 221°F (105°C), via relay K9. When the pressure or temperature drops below preset values, fan operation discontinues.
