Home >> Mercedes Benz >> 1989 >> 190E 2.6 (201.029) L6-2.6L (103.942) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Cigarette Lighter

Cigarette Lighter

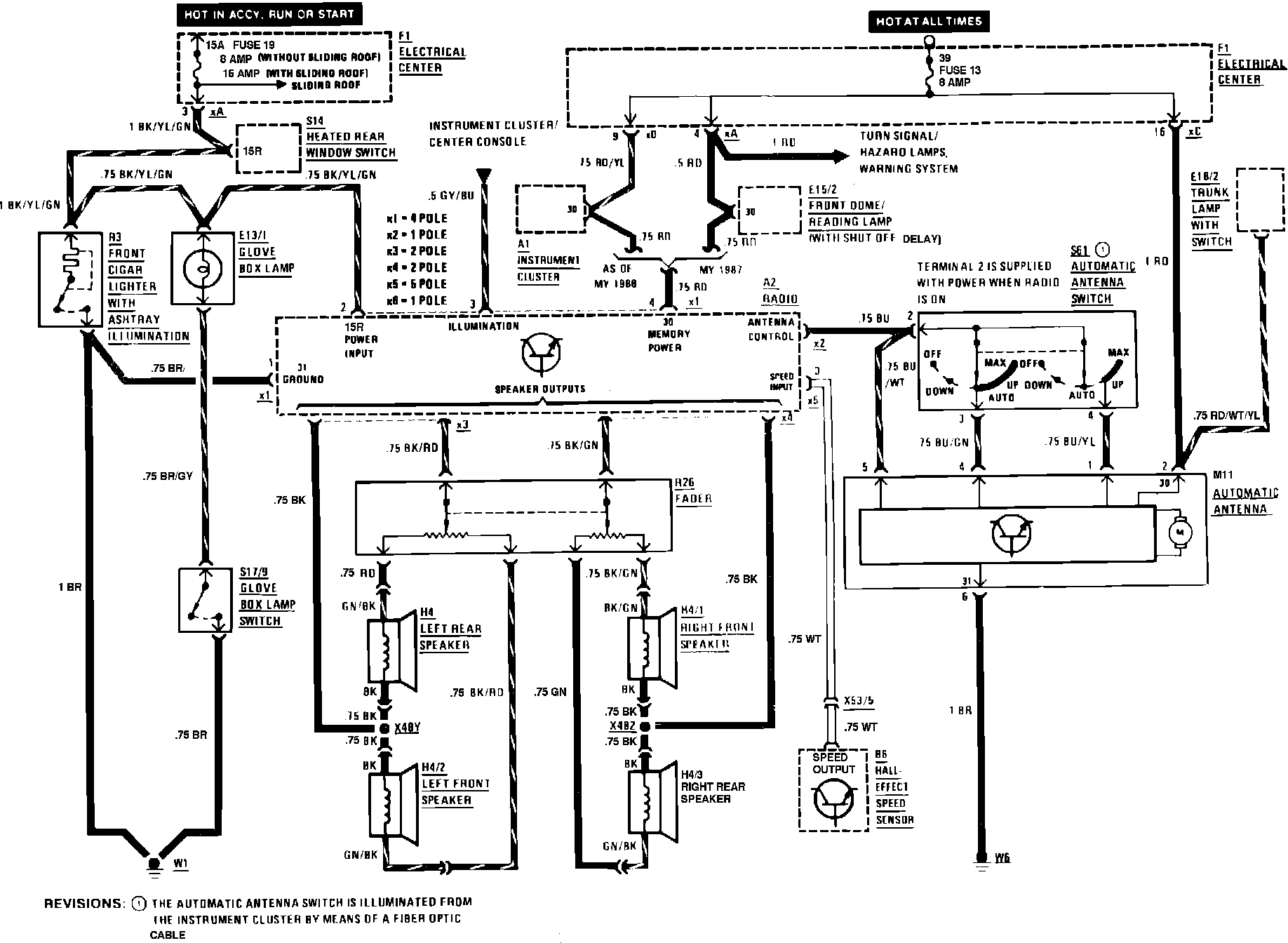

Glove Box Lamp, Cigarette Lighter, Radio, Automatic Antenna:
