Home
>>
Mercedes Benz
>>
1989
>>
190E 2.6 (201.029) L6-2.6L (103.942)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

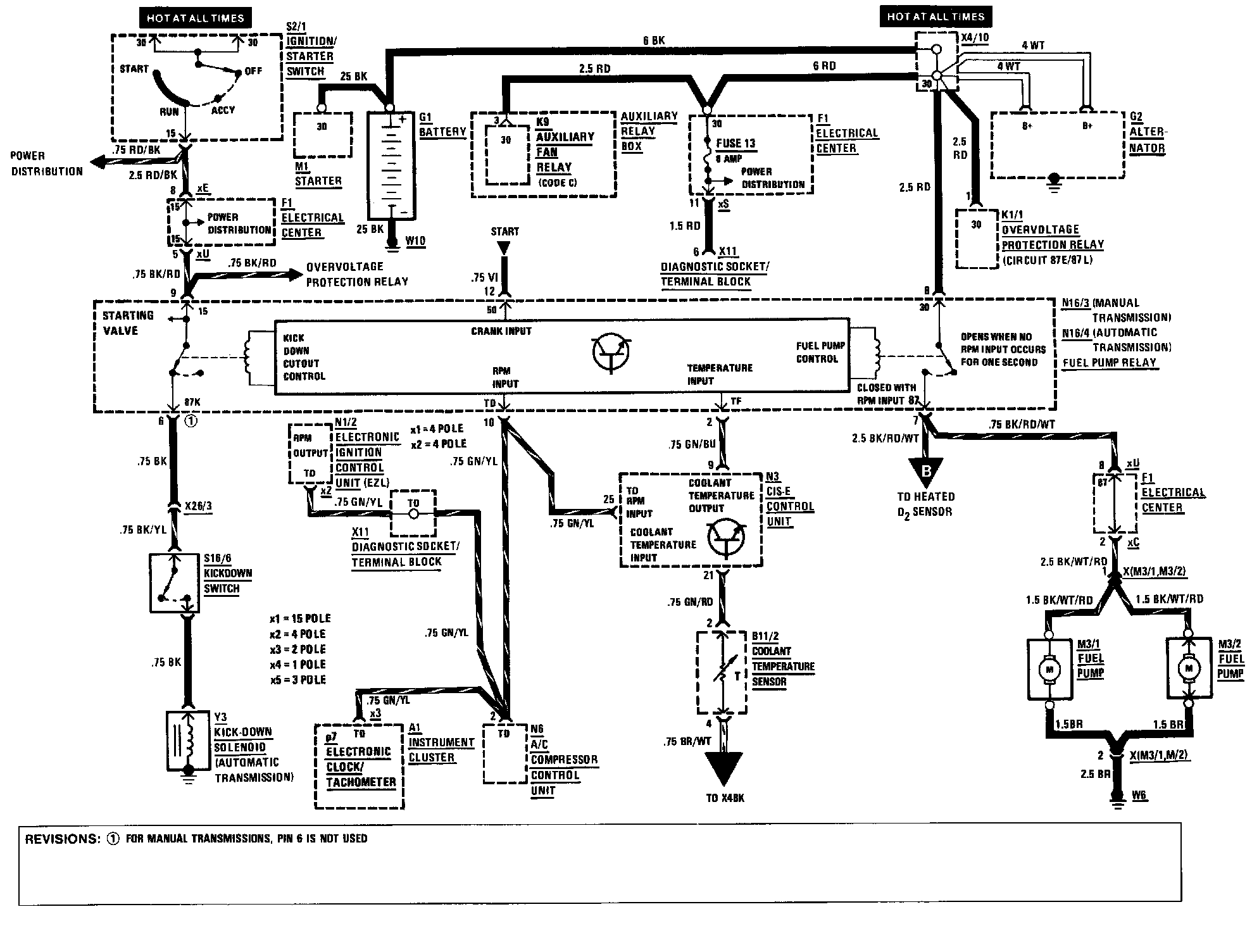

Fuel Delivery (California)
Fuel Delivery (California)
Fuel Delivery (California):
