Removal and Replacement

REMOVAL

Moving Hood Into Vertical Position:

1. Set the hood vertical.
2. Disconnect battery ground cable from the battery.

Firewall Guard:

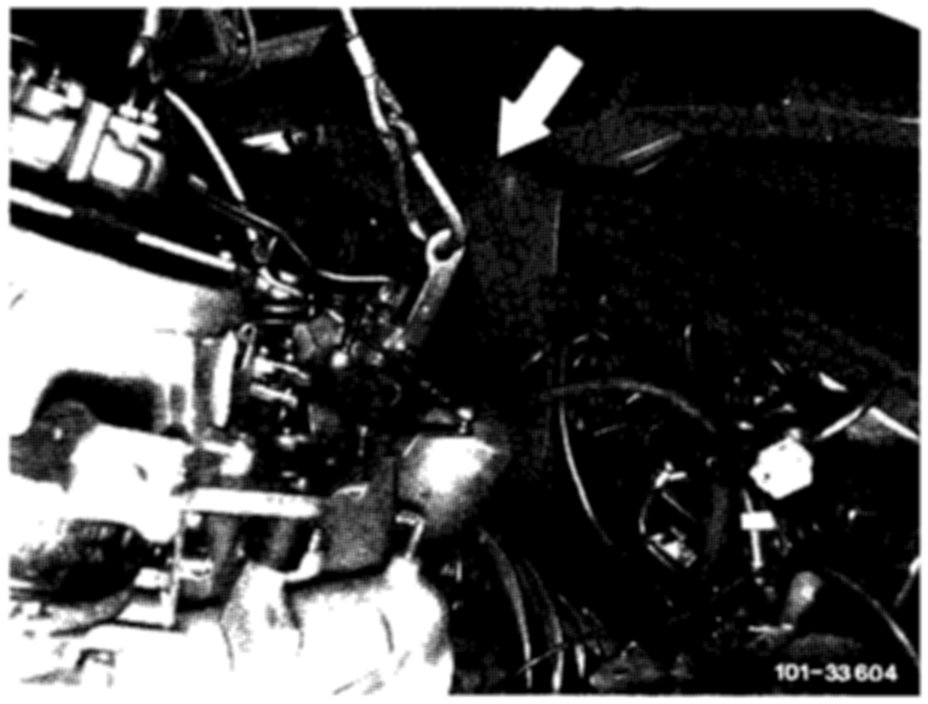

3. Position suitable panel (arrow) between firewall and engine to prevent damage to to firewall.
4. Remove fan with viscous clutch and radiator.

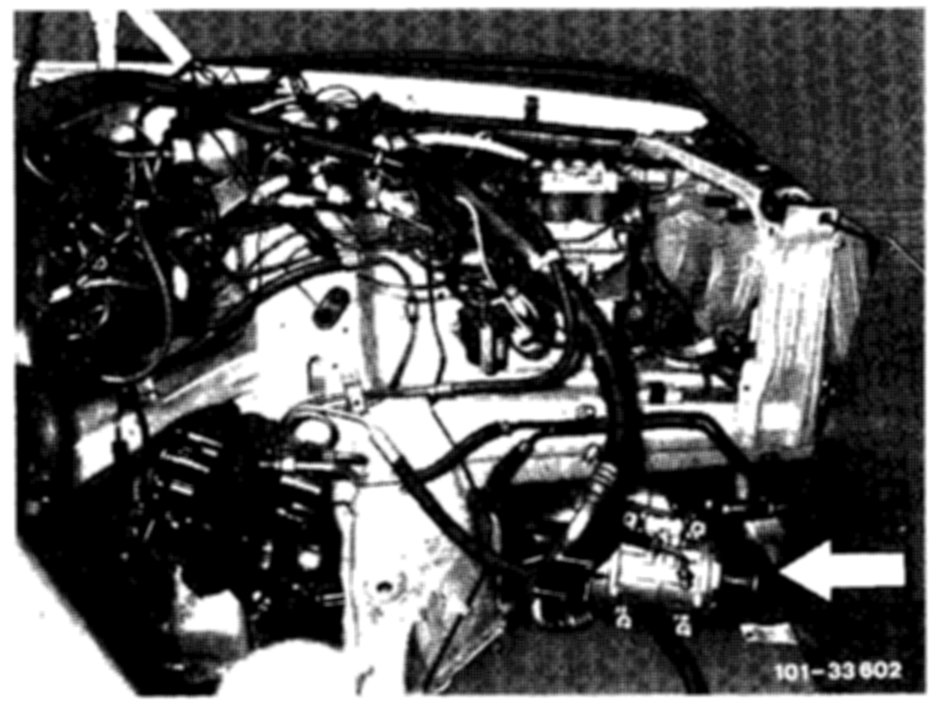

5. Protect condenser with suitable panel. Unbolt holder for refrigerant lines (2 bolts) and compressor (4~bolts). The compressor (arrow) remains in the vehicle with the refrigerant lines connected.

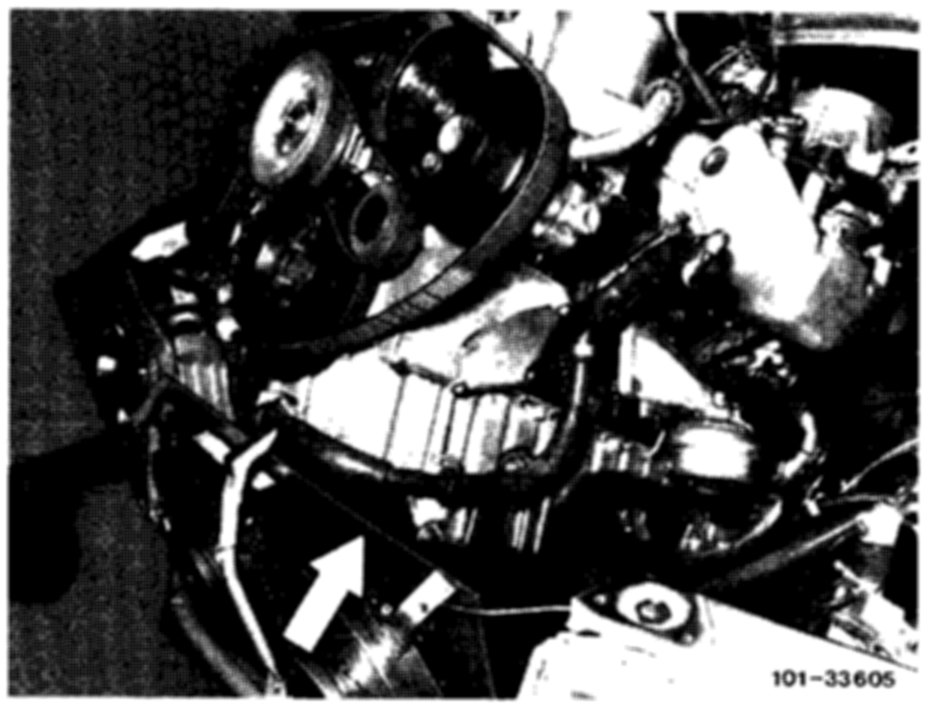

6. Disconnect steering linkage at left.
7. Engine mounts remain on engine.
8. Use new self-locking nut on steering linkage.




9. Lift engine out while altering angle of engine on hoist as necessary.

INSTALLATION
Install in the reverse order.
