High Beam, Instrument Panel, Turn Signal, etc. Indicators
High Beam, Instrument Panel, Turn Signal, etc. Indicators

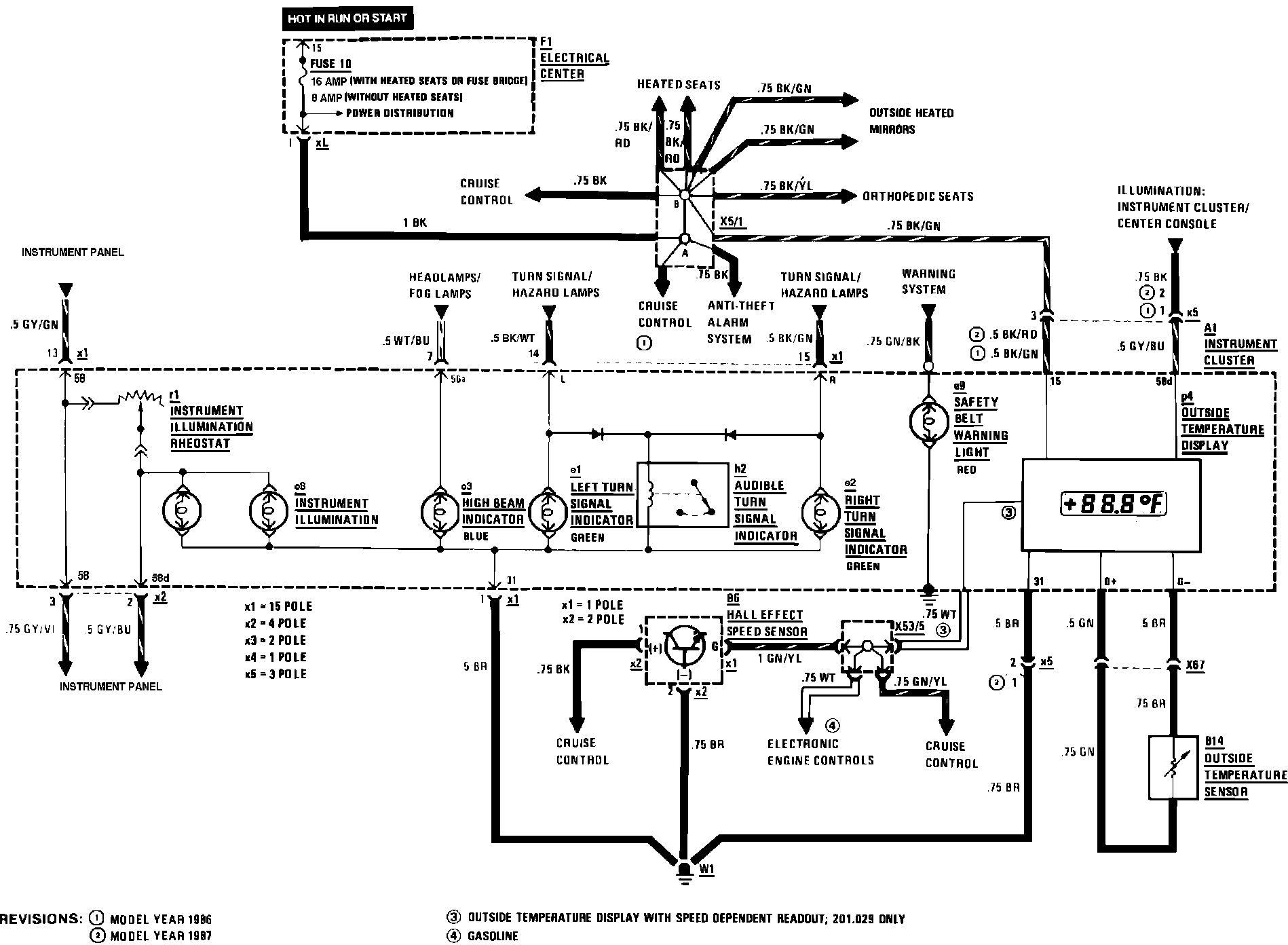

High Beam, Instrument Panel, Turn Signal, Outside Temperature, Seatbelt Indicator Lamps:
