Electronic Engine Control/Upshift Relay/Overvoltage Relay
Electronic Engine Control/Upshift Relay/Overvoltage Relay

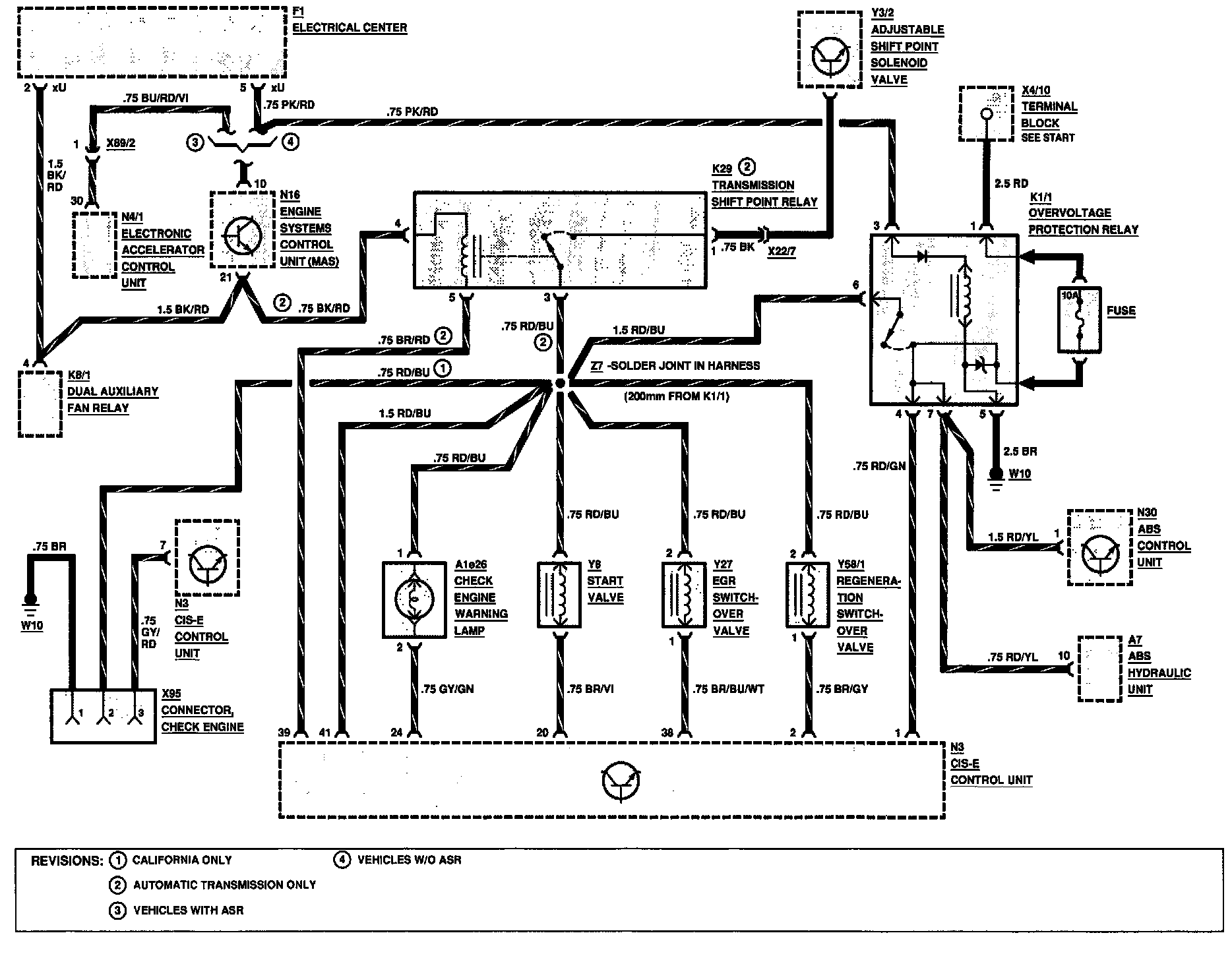

Electronic Engine Control/Upshift Relay/Overvoltage Relay:
