Oil Leak Between Cylinder Head and Gasket

01-85101 Oil Leak at Right Rear Corner In Driving Engine 601, 602, 603 Revised 1/88 10/85
Direction) Between Cylinder Head and
Cylinder Head Gasket

Remedy:
Engines 601, 602

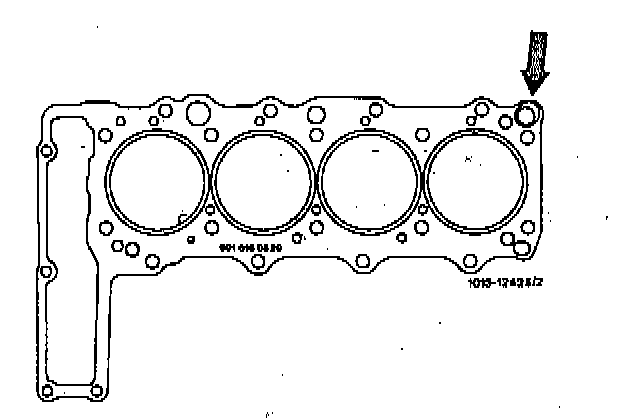

Install new cylinder head gasket with crimped-in metal ring around oil return flow bore (arrow).

Engine 603

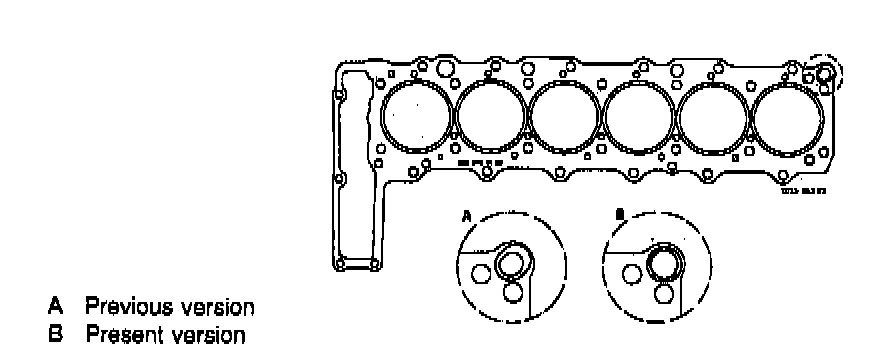

Install new cylinder head gasket with viton seal around oil return flow bore.

Production Phase-In: 4/87

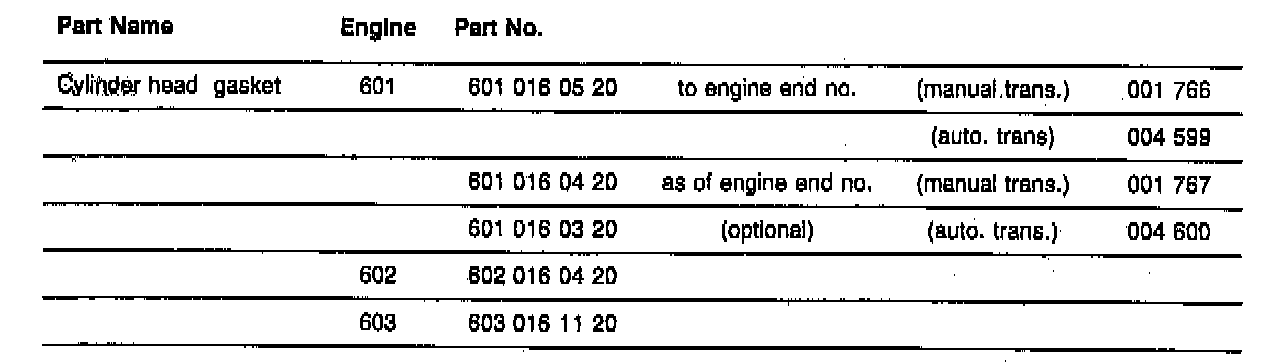

Parts Information
