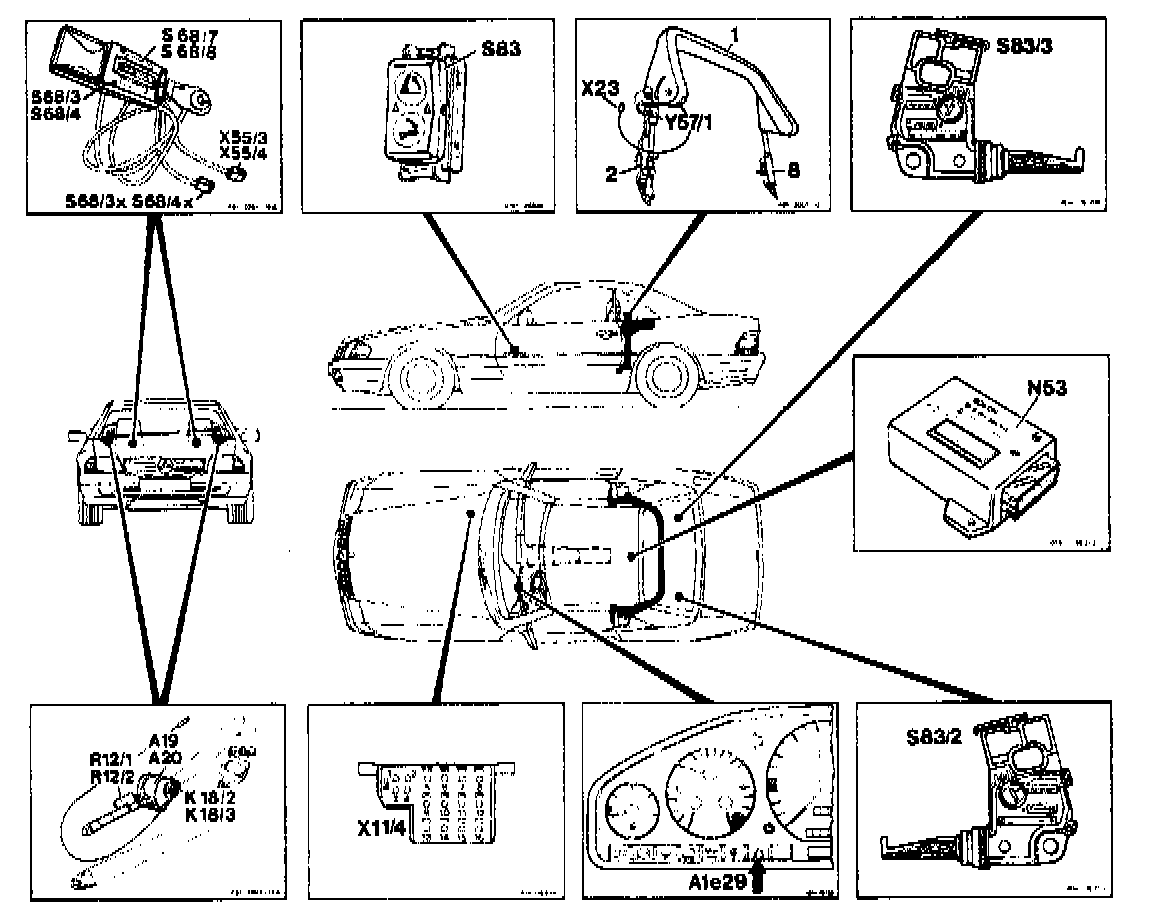

Roll Bar Crash Deployment Components
A1e29 RB MIL
A19 Left seat belt lock
A20 Right seat belt lock
K18/2 Left front seat belt lock relay module
K18/3 Right front seat belt lock relay module
N53 Roll Bar top control module
R12/1 Left front ETR squib
R12/2 Right front ETR squib
S68/7 Left front seat belt buckle/belt lock switch (belt latch)
S68/8 Right front seat belt buckle/belt lock switch (belt latch)
S83 RB (Roll Bar) switch (manual operation)
S83/2 Left rear axle switch, roll bar
S83/3 Right rear axle switch, roll bar
X11/4 Data link connector (impule readout - 16 pole)
X23 RB solenoid valve connector (2-pole)
X55/3 Contact strip, left seat
X55/4 Contact strip, right seat
Y57/1 RB deployment solenoid
