Rear Roof Frame Trim Removal/Installation

Removal and installation of trim on roof frame, rear (T-sedan)






Remove trim on rear pillar left and right, refer to Body and Frame/Interior Trim/Service and Repair/Rear Pillar Trim Removal Rear Pillar Trim, Removal/Installation
Remove screws (5)
Clip trim (1) out in at front left and right (front arrows)
Pull trim (1) out of mount in roof frame toward the rear (rear arrows)

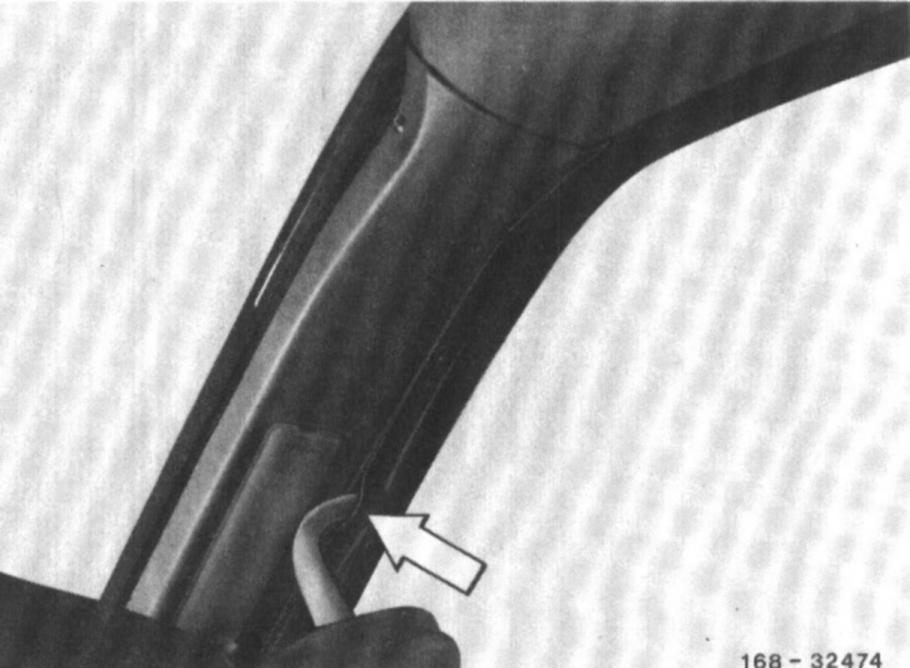

Installation note: Plug trim following installation under rubber lip of sealing frame by means of a plastic wedge.
