Blower Motor Resistor: Service and Repair

Removal

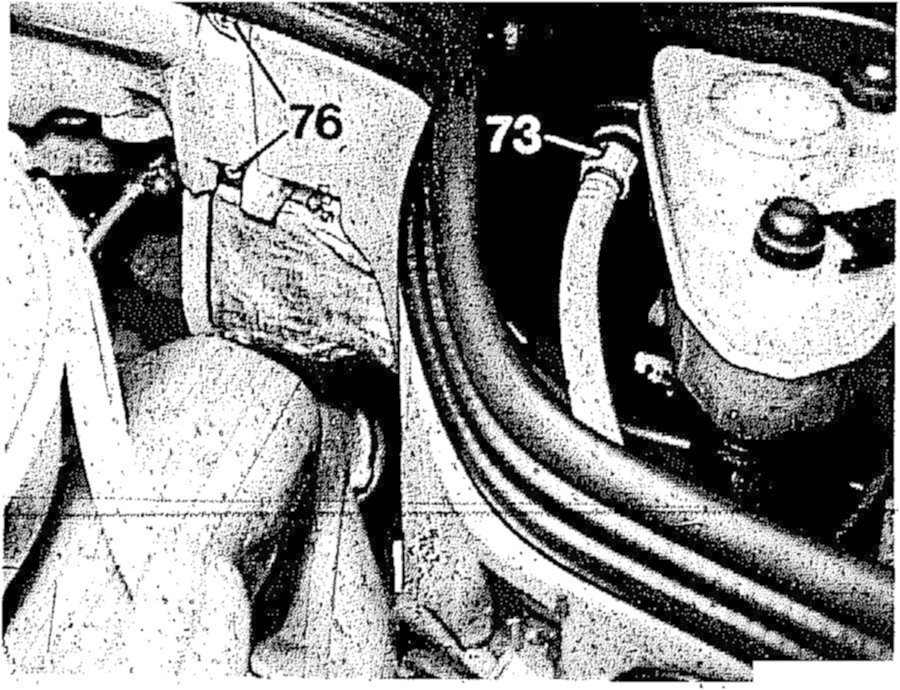

1 Remove vacuum line (73) on brake assembly.

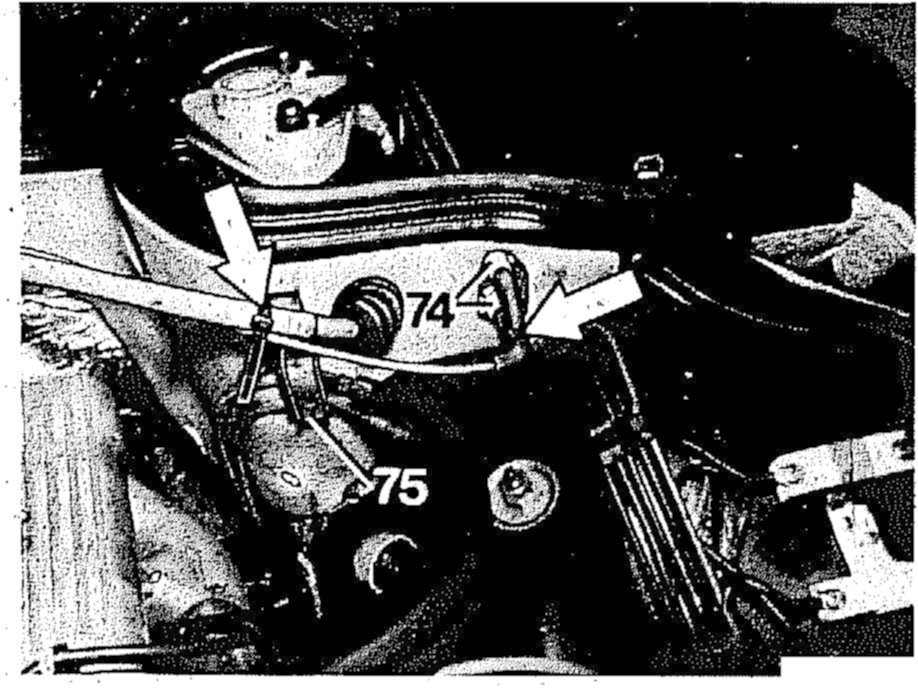

2 Loosen cable strap (arrow) and push vacuum line through bracing wall.
3 Detach vacuum distributor (see arrow) on nonreturn valves (74).
4 Loosen bayonet lock on non-return valves (74) and pull valves out of bracing wall.
5 Unscrew bracket for fuel lines (75) on bracing wall.

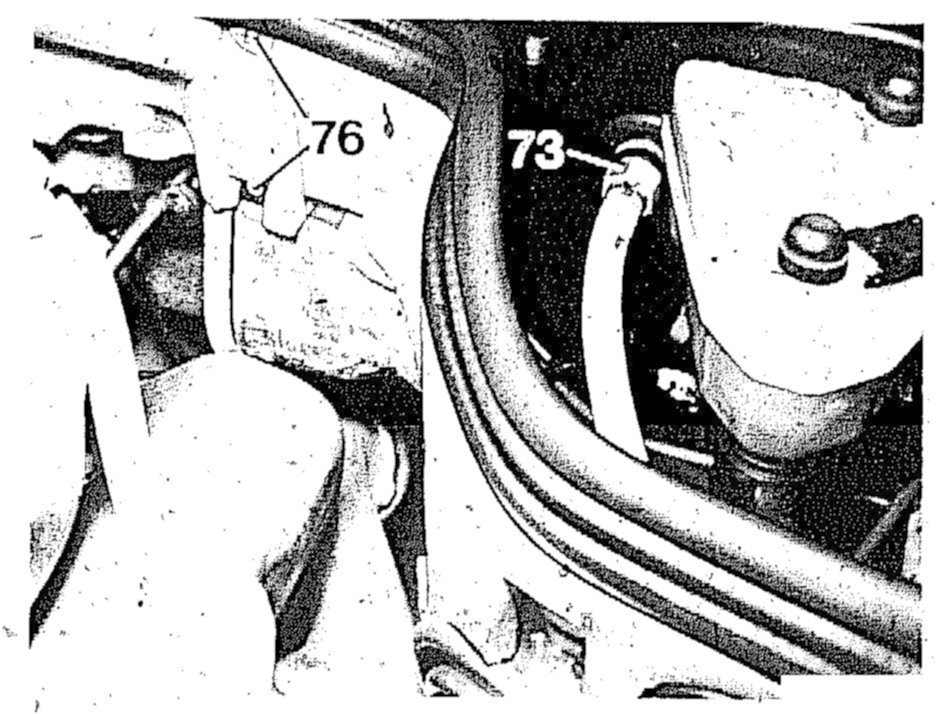

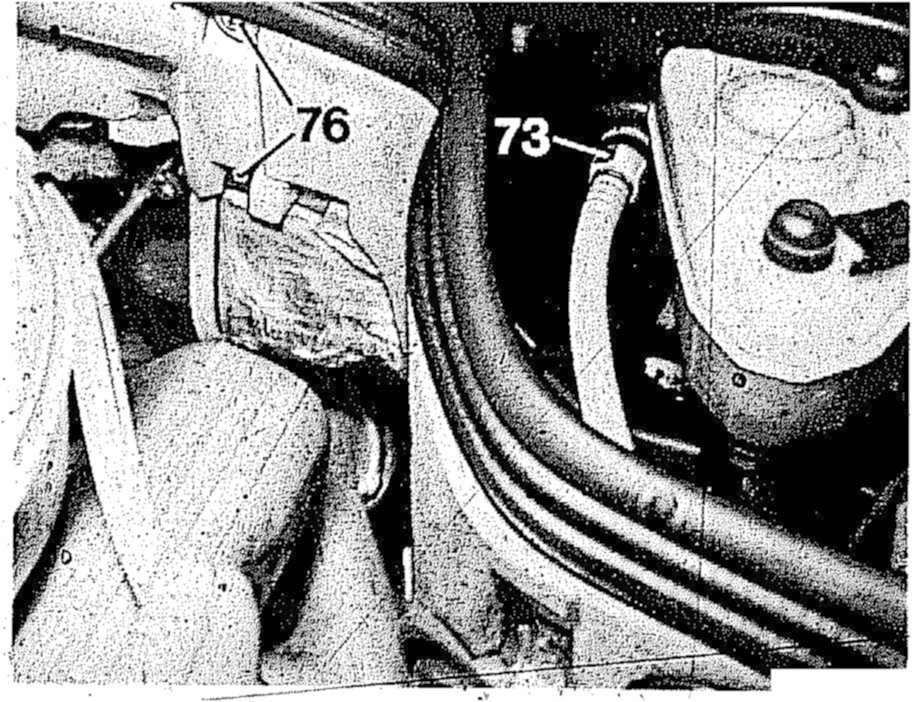

6 Remove fastening bolts (76) on bracing wall and lift off bracing wall upward.

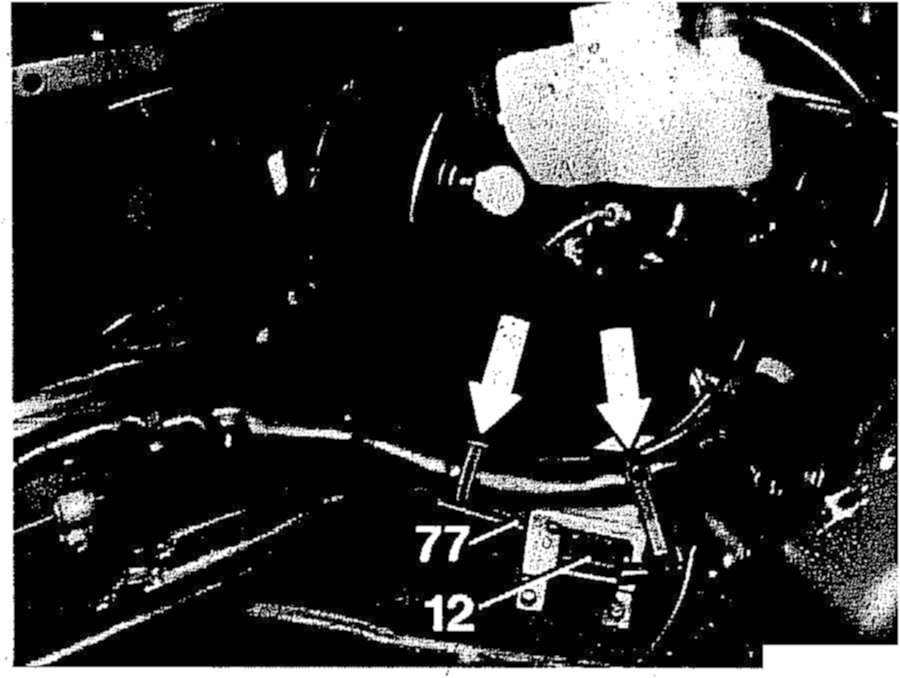

Layout of pre-resistance group, lefthand steering

7 Loosen cable straps (see arrow) on bracket (77).

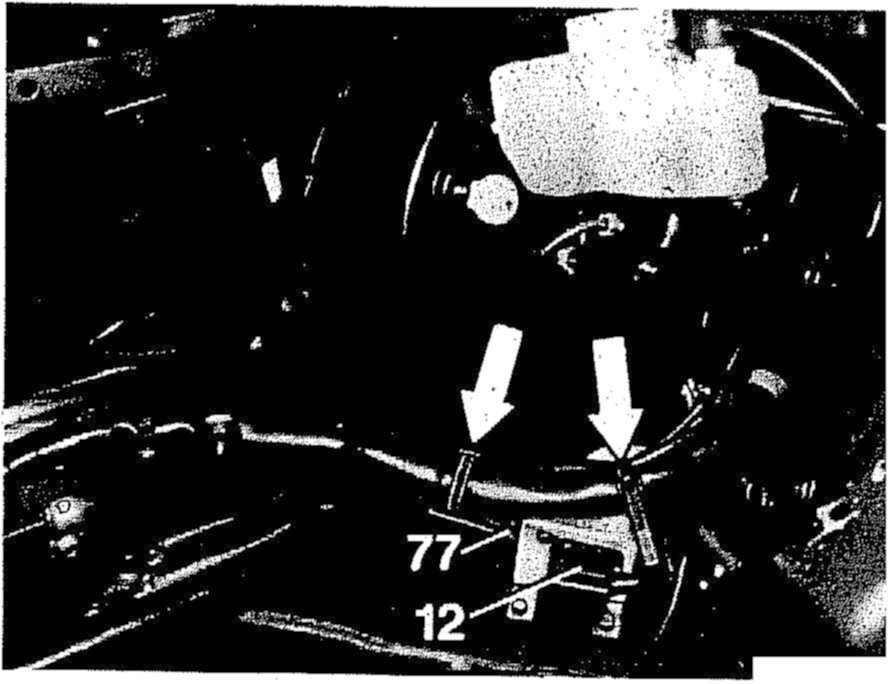

Layout of pre-resistance group, righthand steering (wheel house sheet metal at the right)

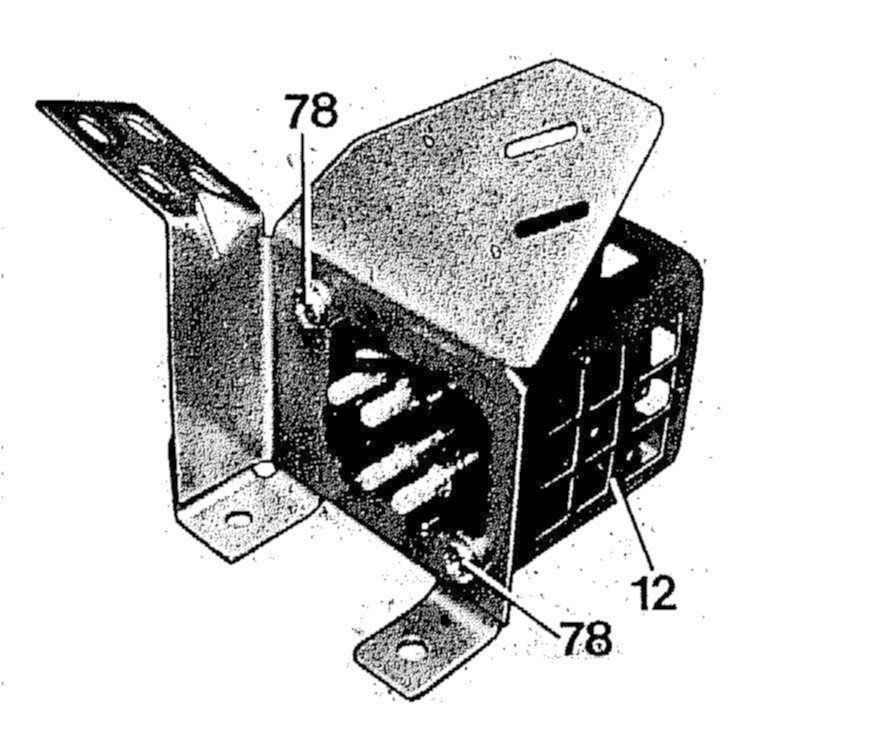

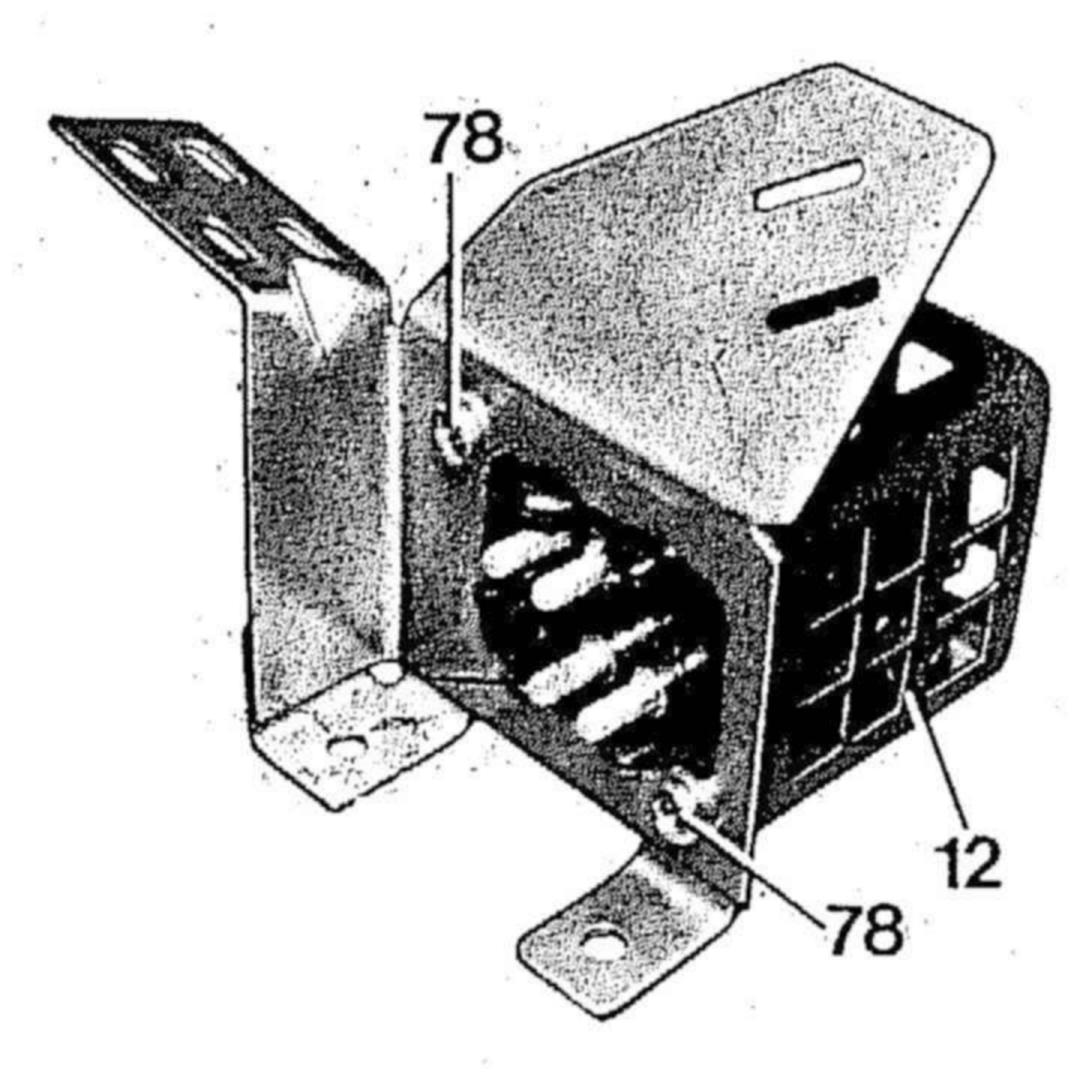

8 Pull 5-pole coupler from pre-resistance group (Fig.) and unscrew holder (77) on side member. Then unscrew screws (78) and remove pre-resistance group (Fig.) from holder.




Installation







9 Screw pre-resistance group onto retaining bracket (77) with bolts (78).







10 Secure retaining bracket (77) with pre-resistance group on side rail (righthand steering on wheel house sheet metal at the right) and connect 5-pole coupler to pre-resistance group.







11 Secure main cable harness with cable straps (see arrow).
