ETP - Test [23] - Step 18.0
>>
Anti-Lock Brake System (ABS)
Anti-Lock Brake System (ABS)
Anti-Lock Brake System (ABS)
Models 129 (CFI Only)
Preliminary Information
Component Locations
Anti-Lock Brake System (ABS)
Preparation for Test
Anti-Lock Brake System (ABS)
Figures
Anti-Lock Brake System (ABS)

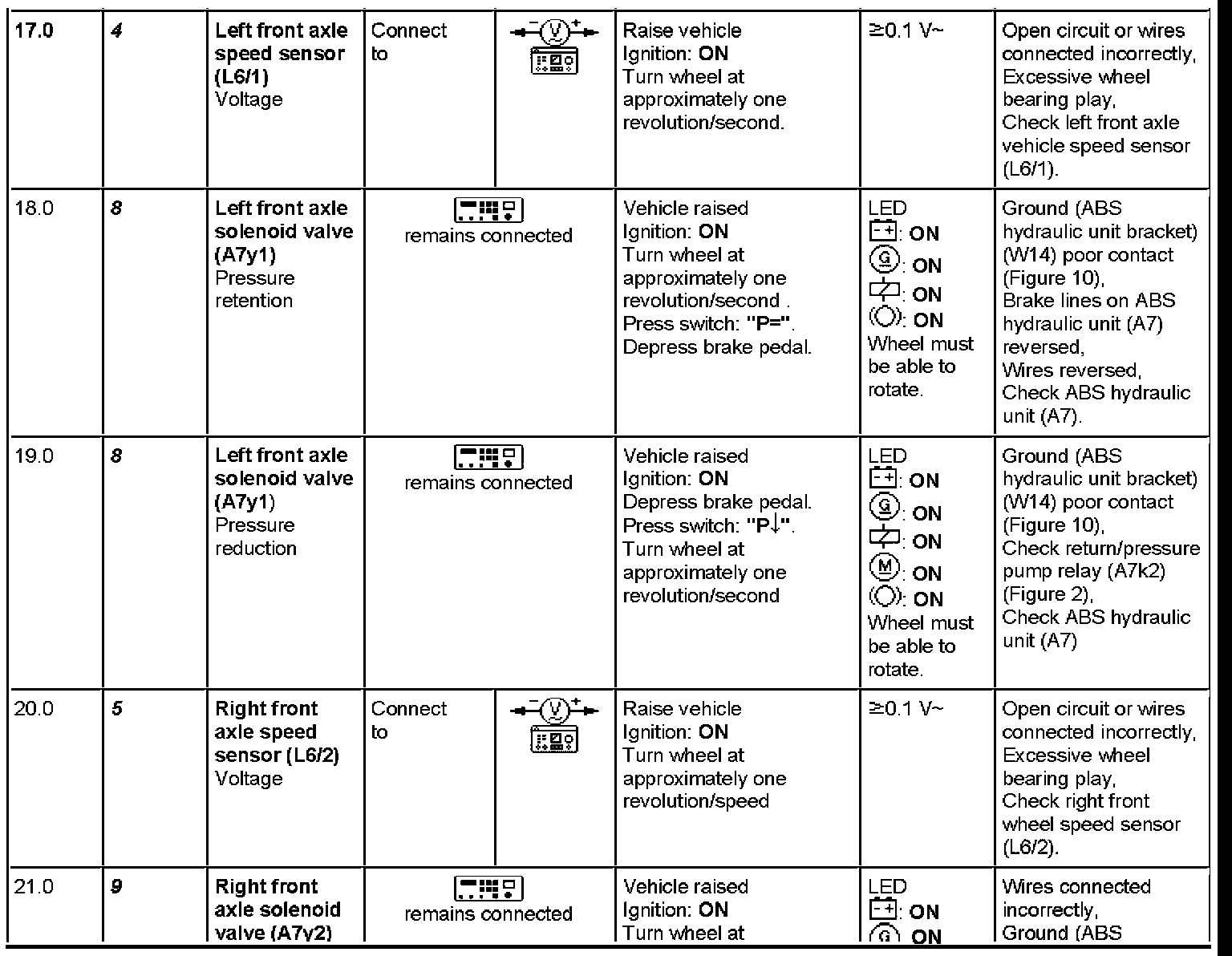

Test Steps 17.0 - 21.0:
