CFI Fuel Injection System PE07.32-U-2000YB

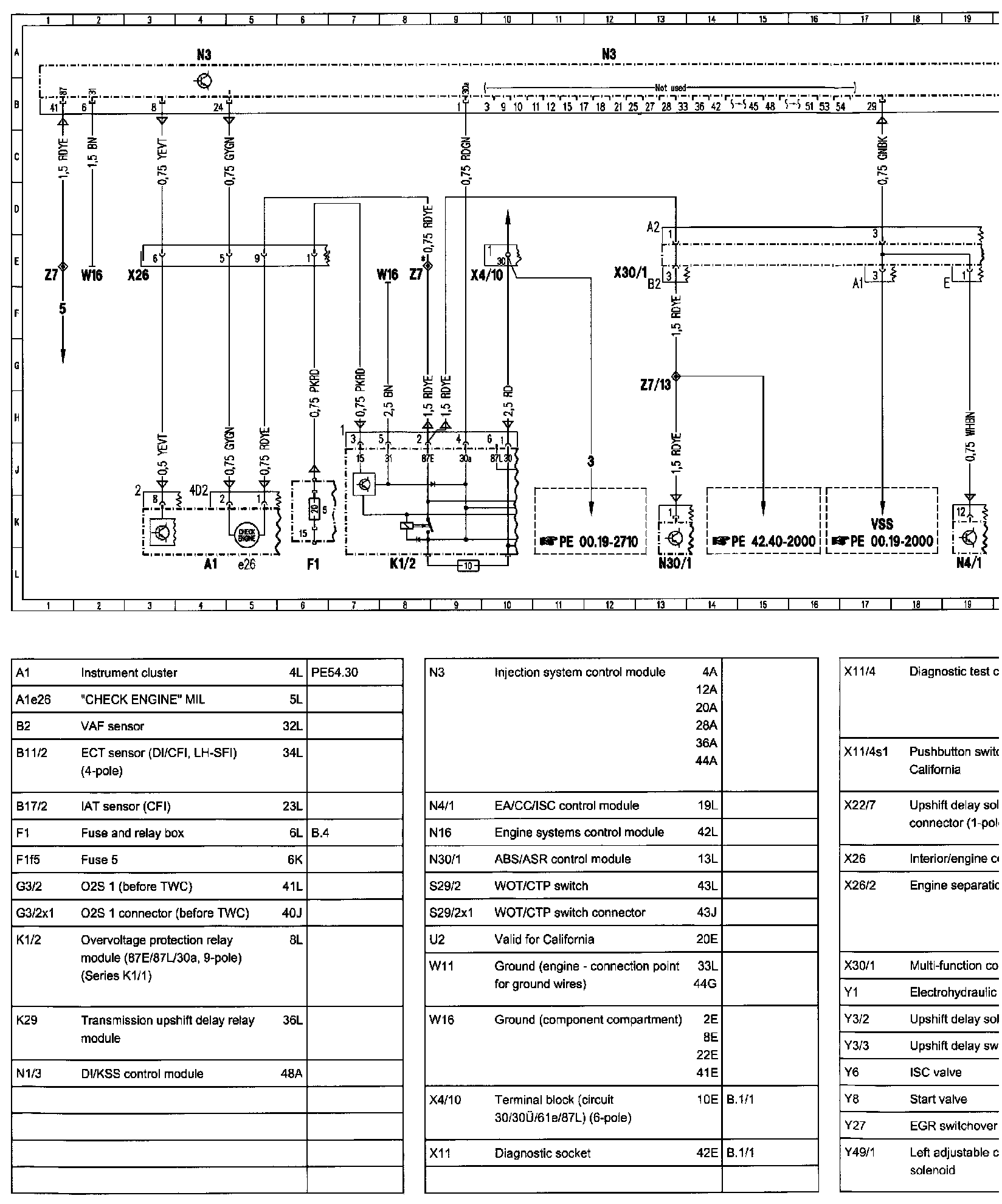

��~�PE07.32-U-2000YB - CFI Fuel Injection and Ignition System:
