Distributor Ignition/Knock Sensor System (DI/KSS) PE15.12-U-2000YB

Distributor Ignition/Knock Sensor System (DI/KSS)

wiring Diagram

d��PE15.12-U-2000YB - Distributor Ignition/Knock Sensor System (DI/KSS):

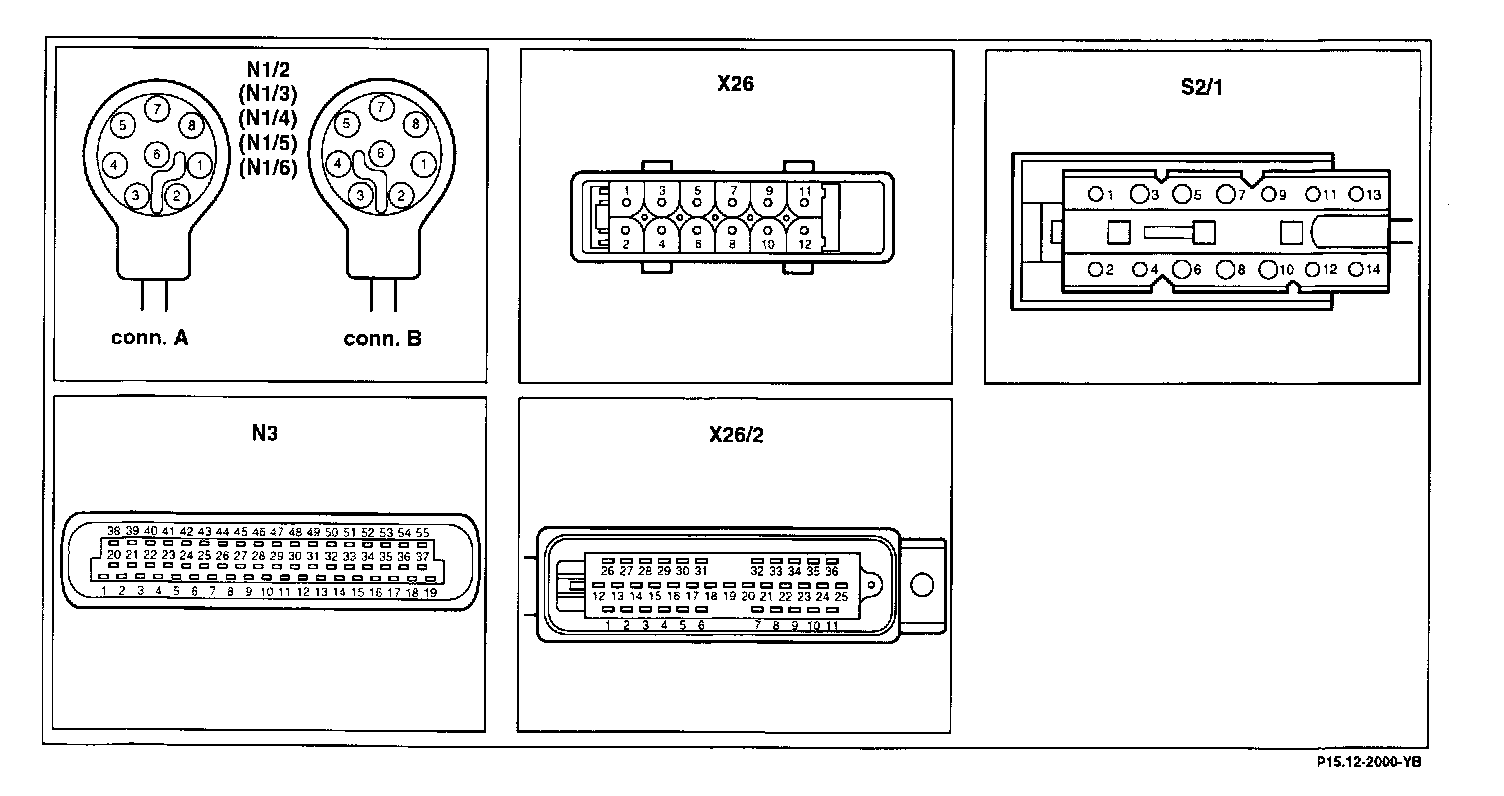

Connector Assignment:

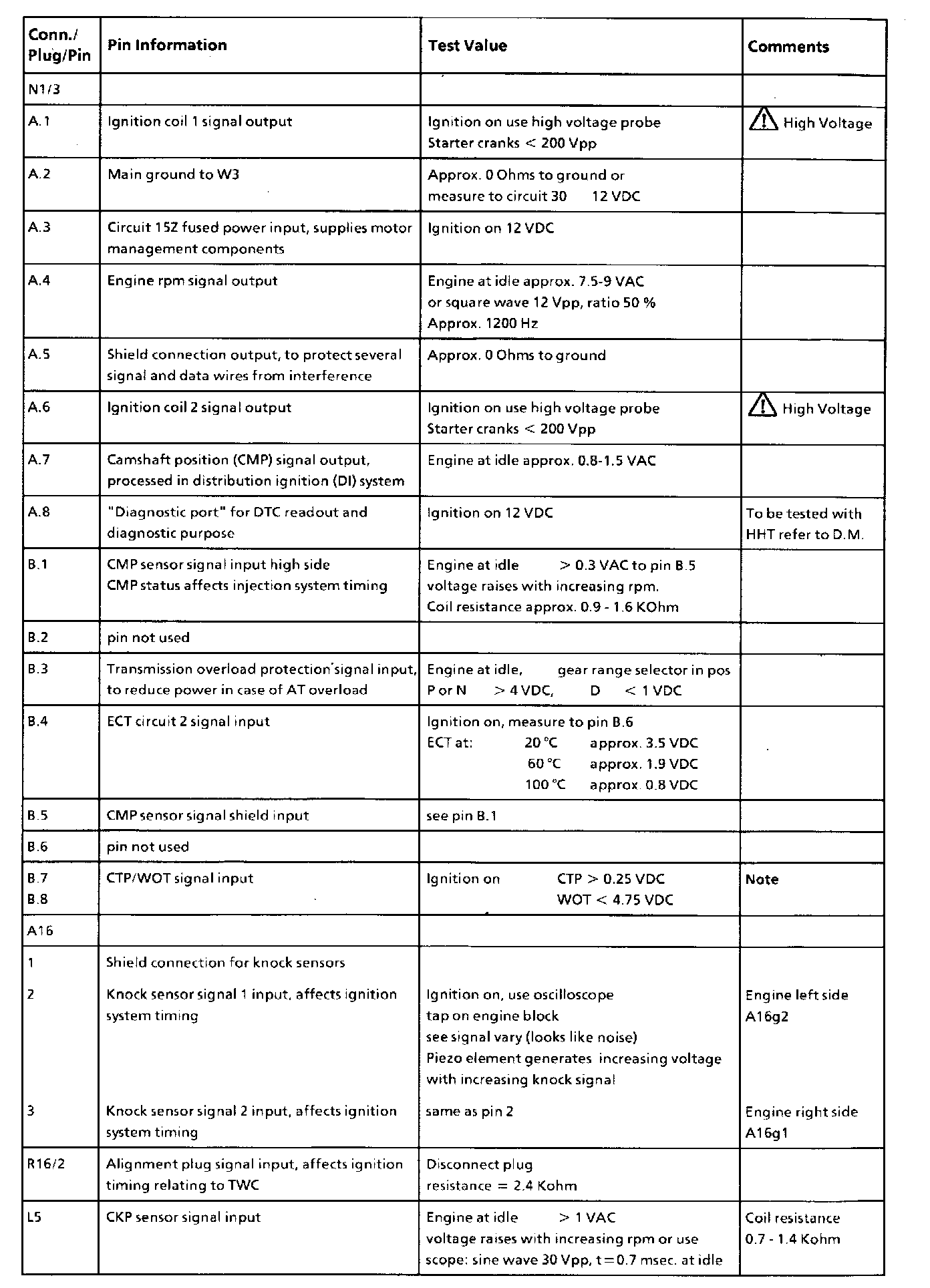

Pin Information, Part 1:

Pin Information, Part 2:

All values measured to ground unless otherwise noted.
