Component Index
>>
Except Climate Control
Except Climate Control
100 Degrees ... Blower:

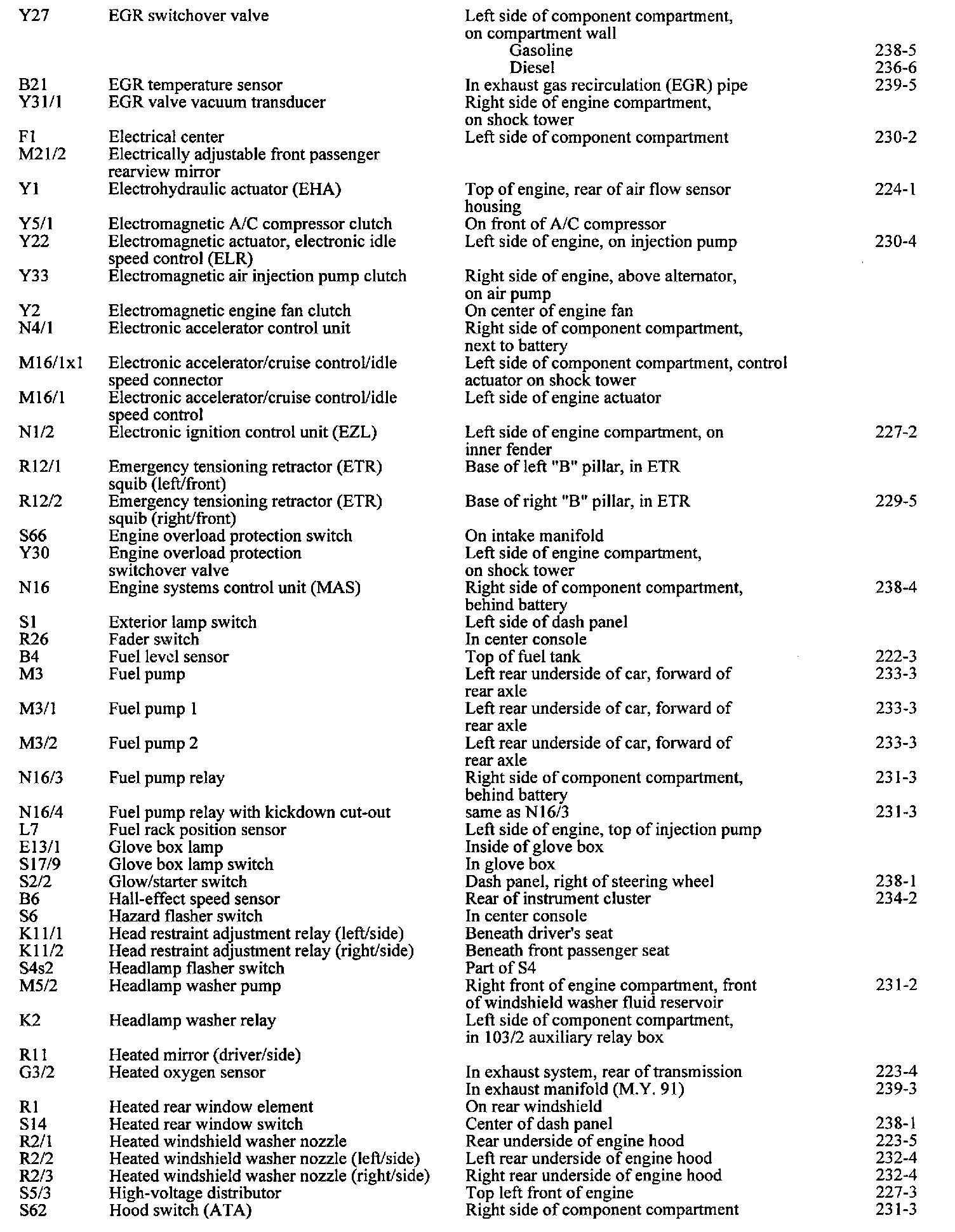

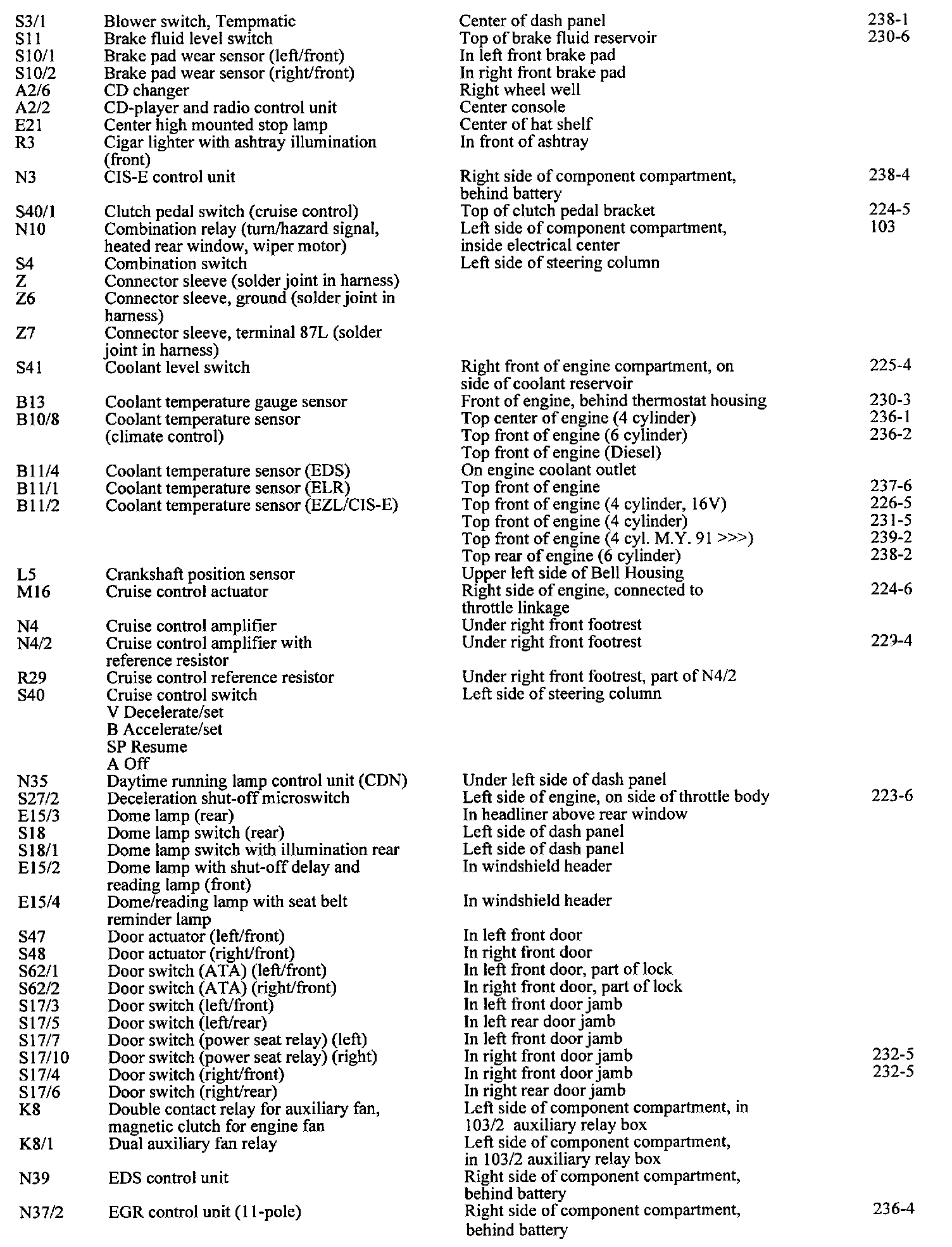

Blower Switch ... EGR:
EGR Switchover ... Hood Switch:

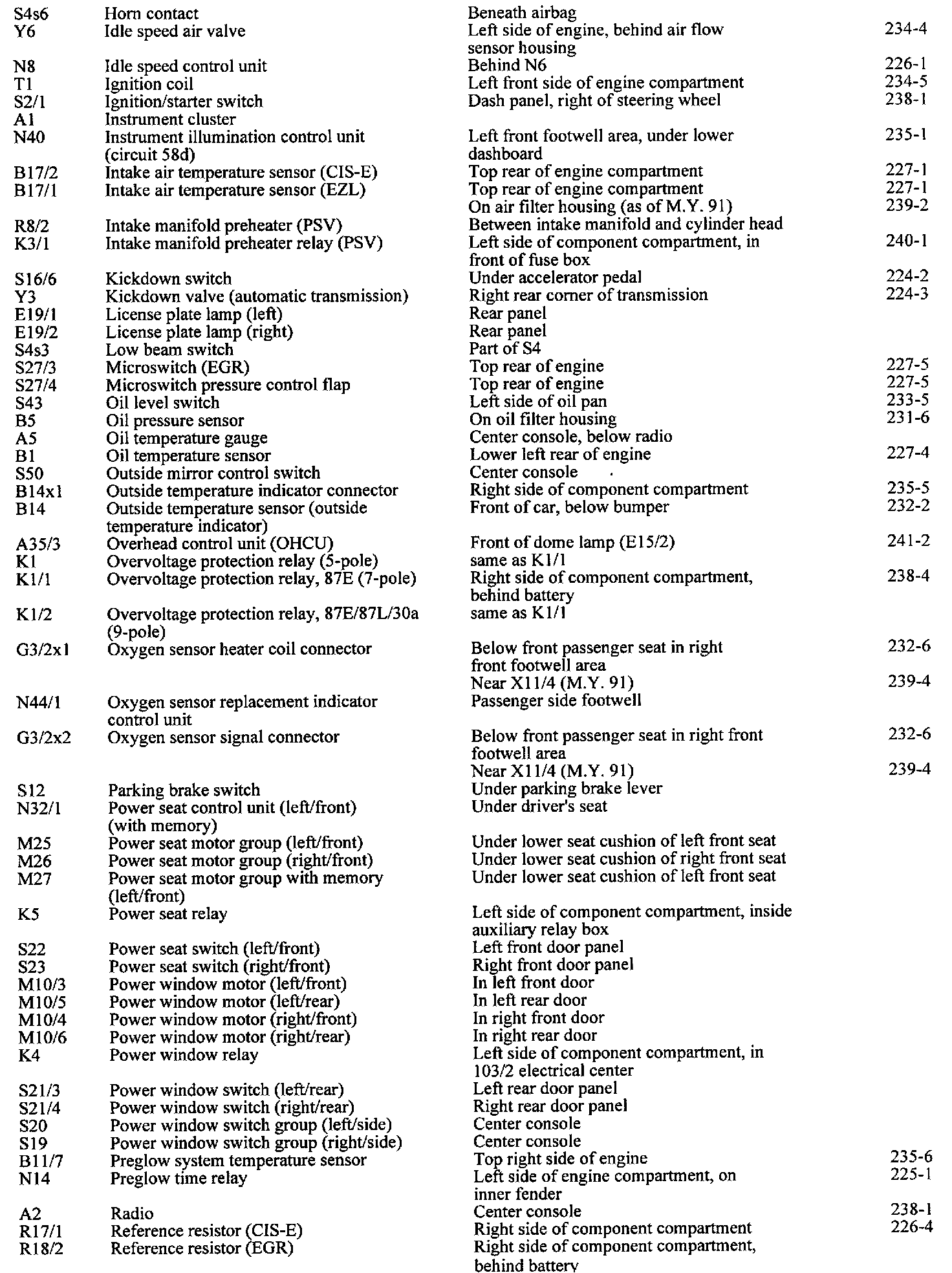

Horn ... Reference:
Reference Resistor ... Trunk:

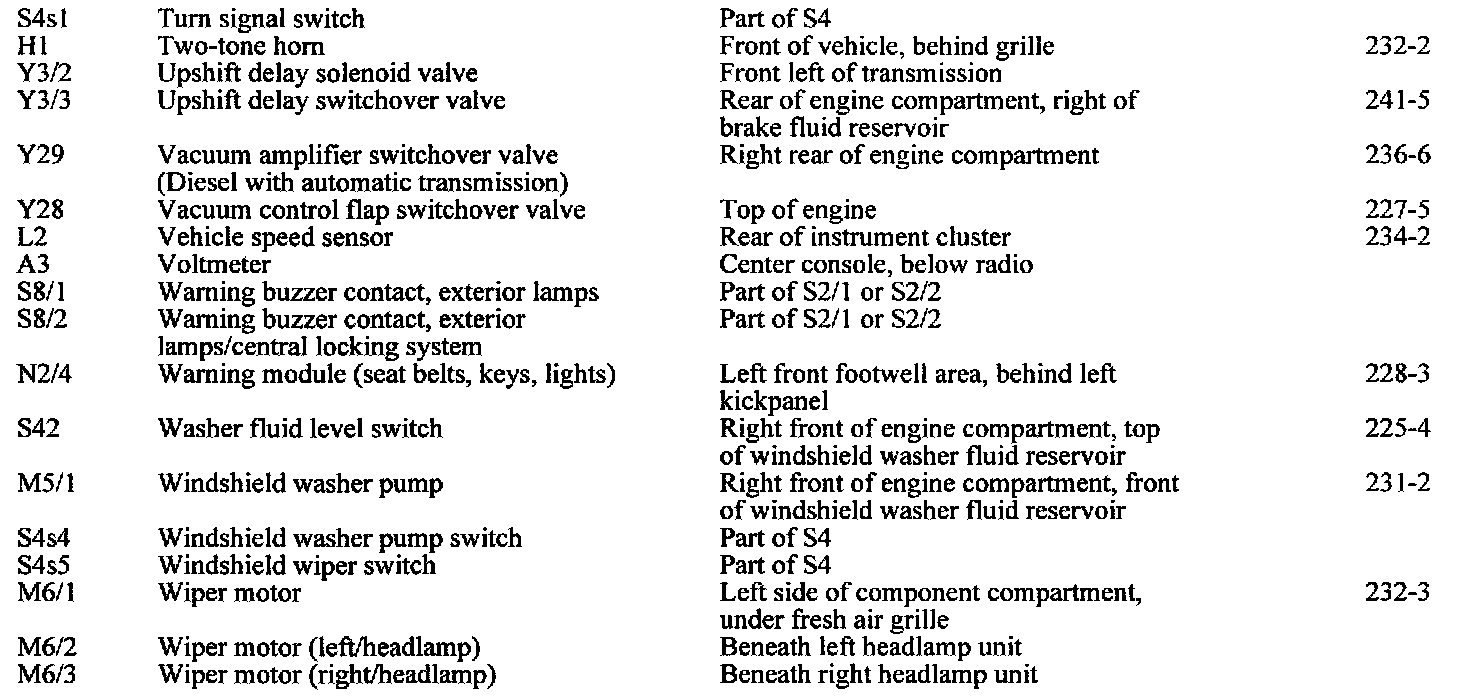

Turn ... Wiper:
