Multi Point System
Multi Point System

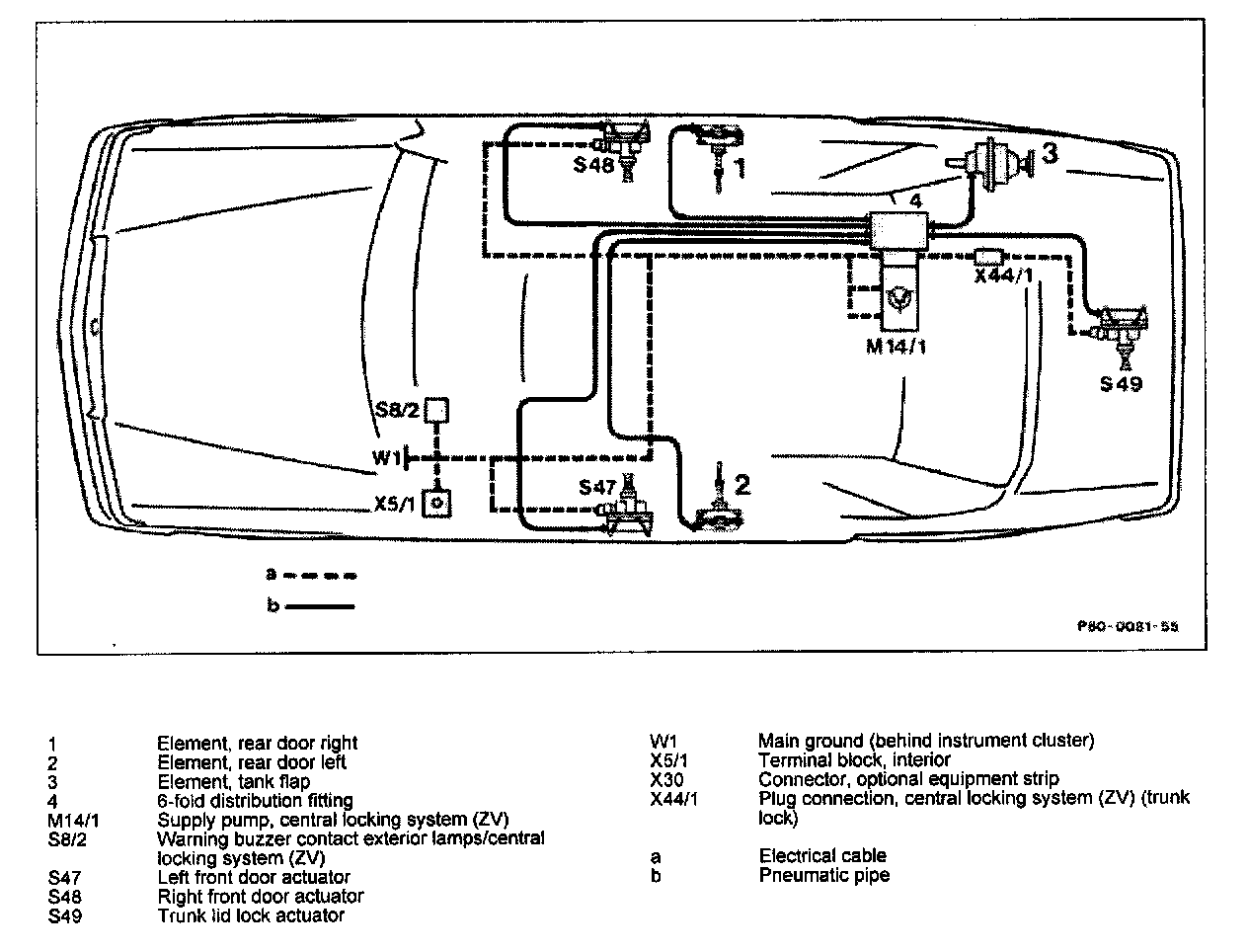

1st Version - Up To Approx. 08/90:

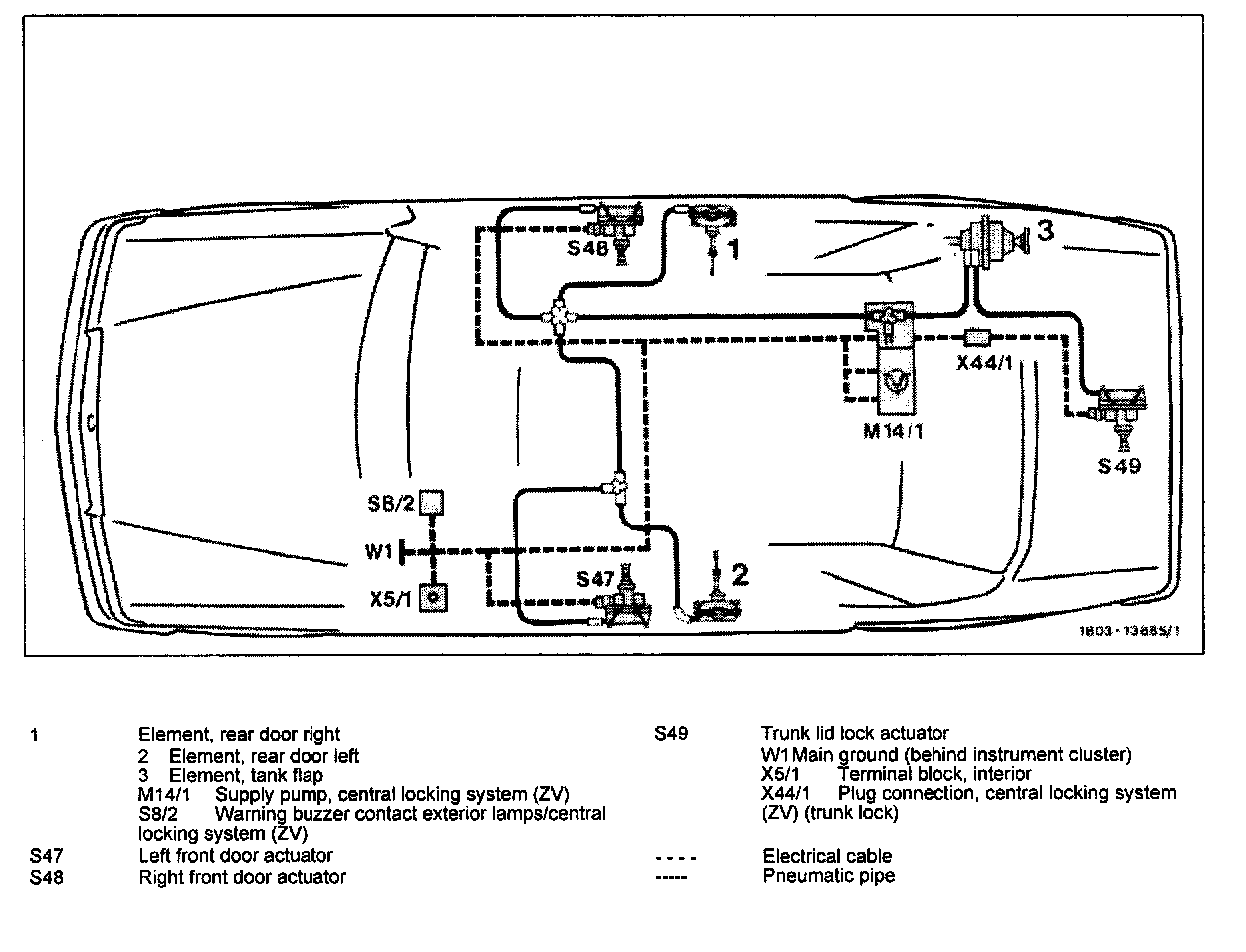

2nd Version - From Approx. 09/90:
