Tempmatic Climate Control Air Delivery
Tempmatic Climate Control Air Delivery

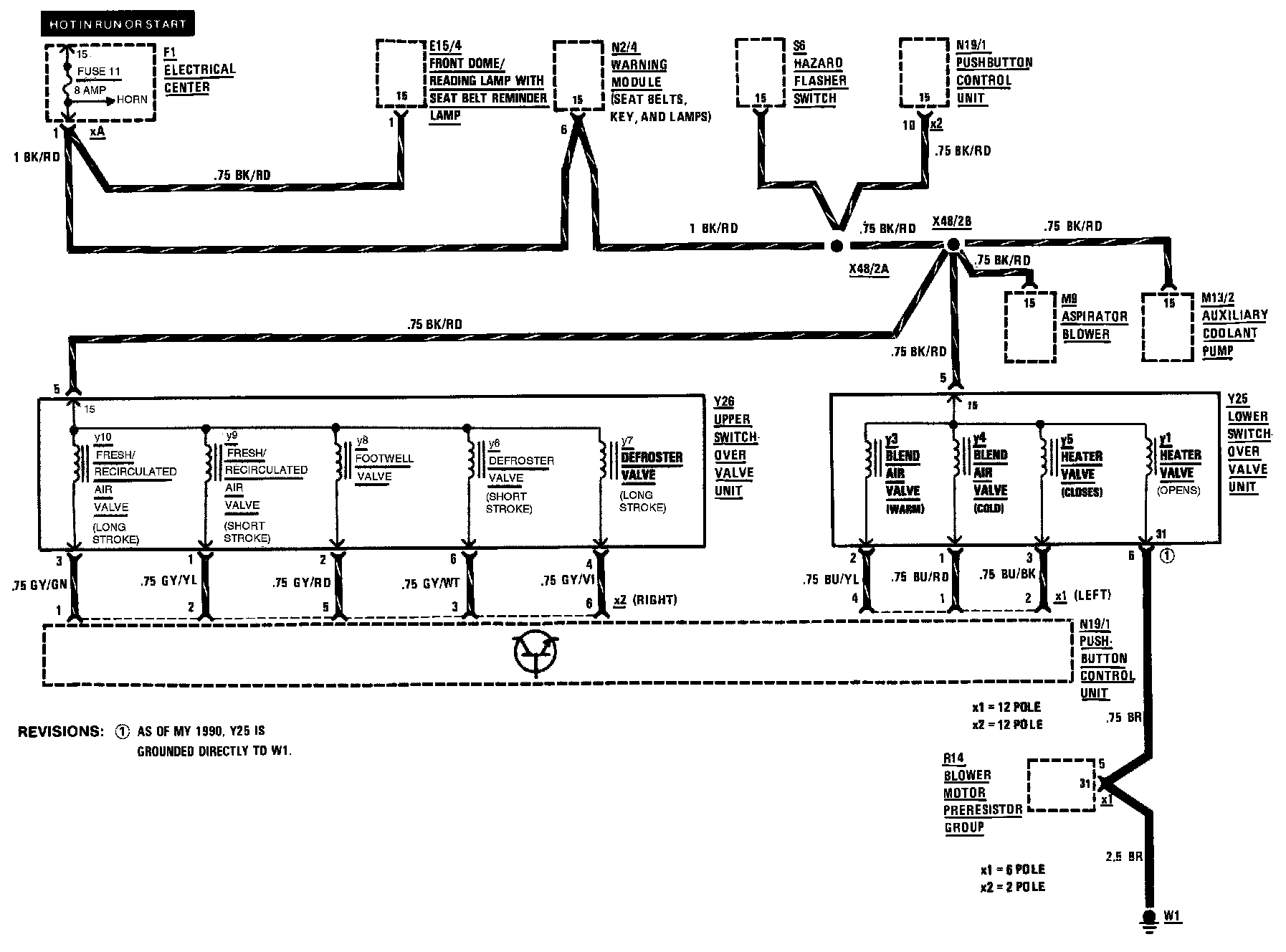

Tempmatic Climate Control Air Delivery:
