Tempmatic Climate Control Compressor Clutch Control
Tempmatic Climate Control Compressor Clutch Control

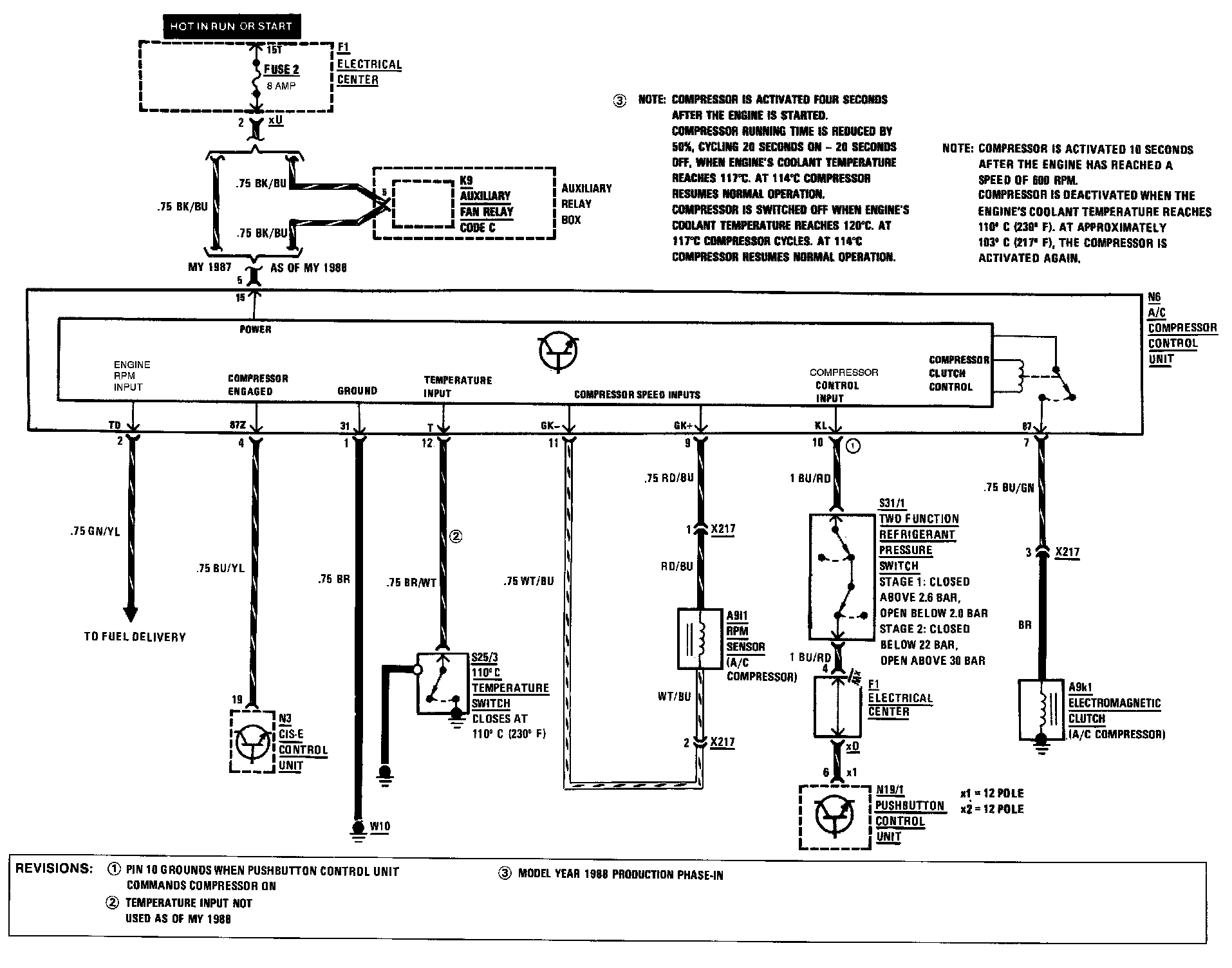

Tempmatic Climate Control Compressor Clutch Control:
