Instrument Cluster Illumination

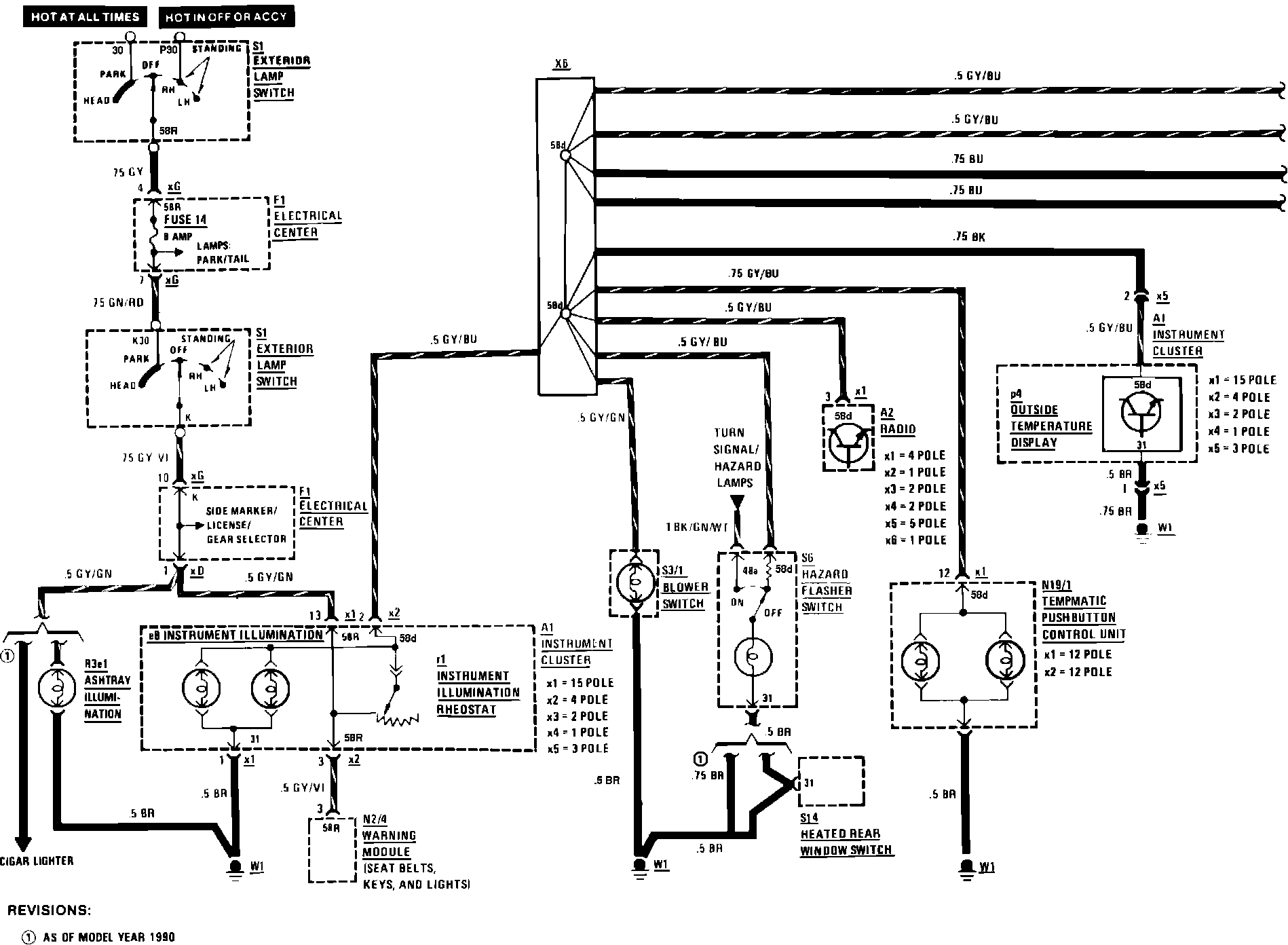

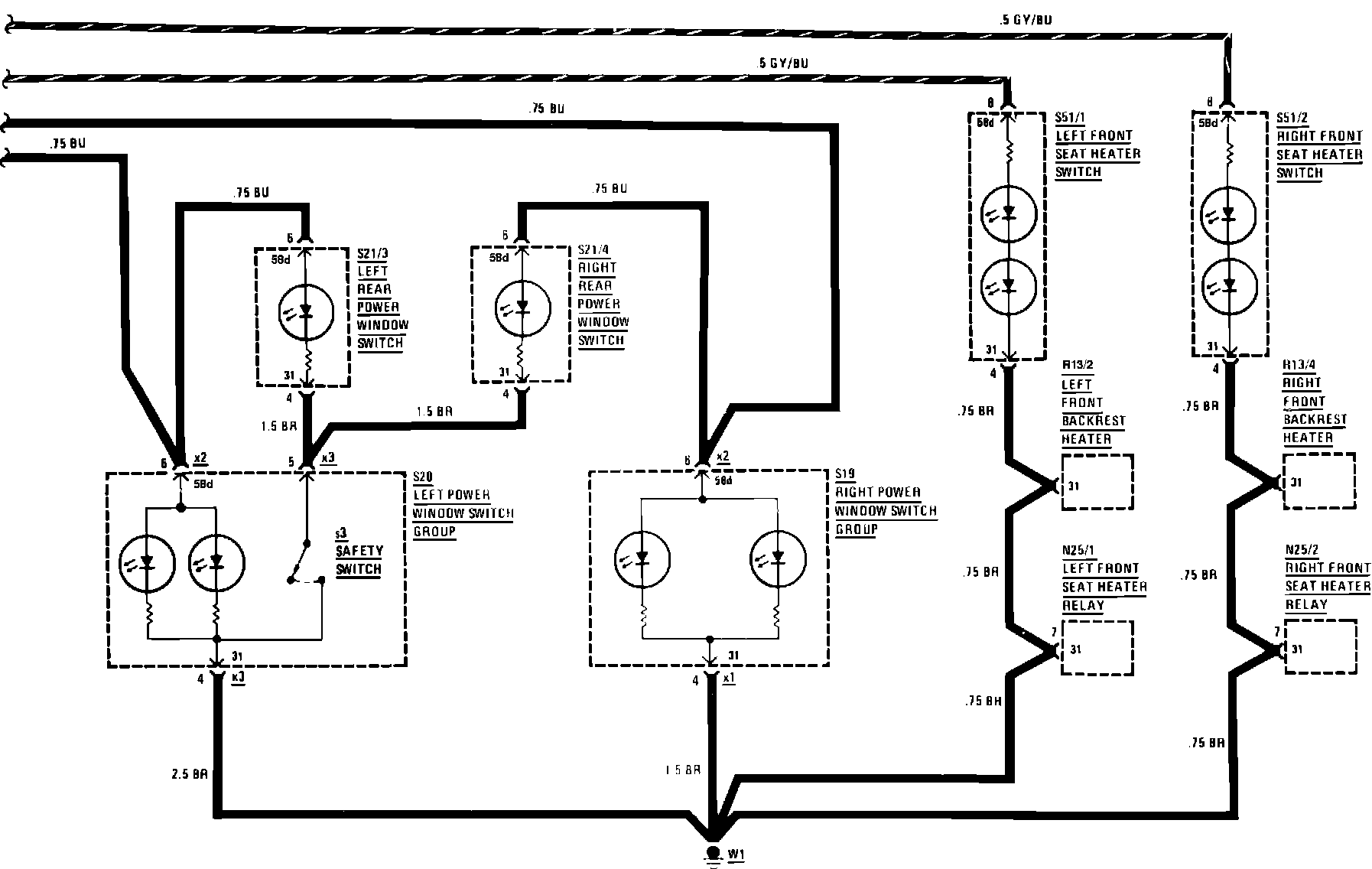

Instrument Panel/Center Console Illumination:



Instrument Panel/Center Console Illumination:
