Mercedes Benz
>>
1991
>>
190E 2.3 (201.028) L4-2.3L (102.985)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
>>
Park/Tail/Marker/License
Park/Tail/Marker/License

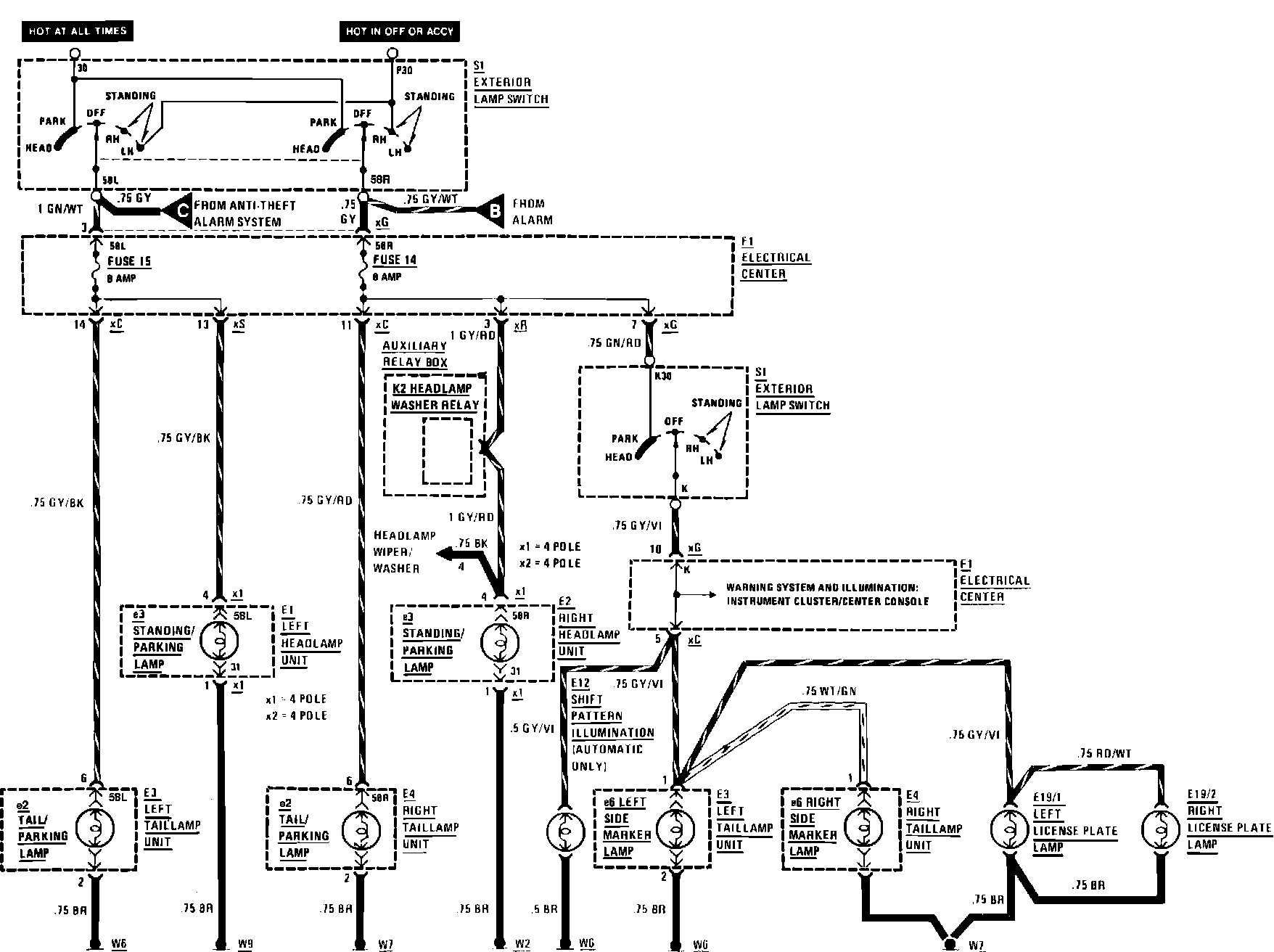

Gear Selector, License, Parking, Side Marker & Tail Lamps:
