Fuel Pump: Application and ID

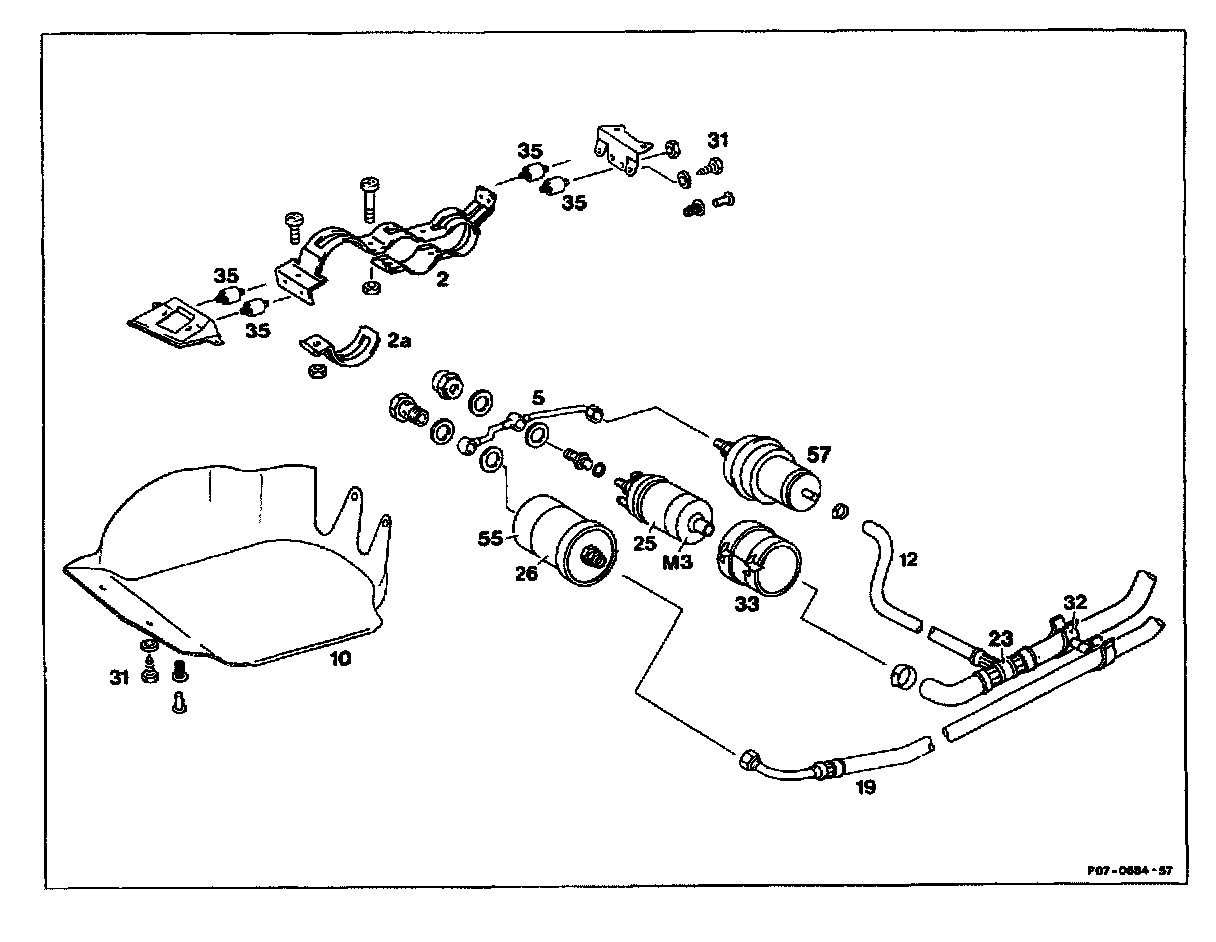

SURVEY OF FUEL PUMP SETS

Model 201







2 Bracket

2a Fuel filter bracket

5 Fuel line

10 Protective cover

12 Leak line

19 Fuel pressure hose

23 Fuel suction hose

25 Plastic sleeve

26 Plastic sleeve

31 Self-tapping screw (as of 01/85 plastic expanding rivets)

32 Clip (as of 10/83 rubber ring)

33 Spacer sleeve (as of 08/84)

35 Rubber-bonded to metal pad

55 Fuel filter

57 Fuel accumulator

M3 Fuel pump
