Suspension Control ( Automatic - Electronic ): Locations

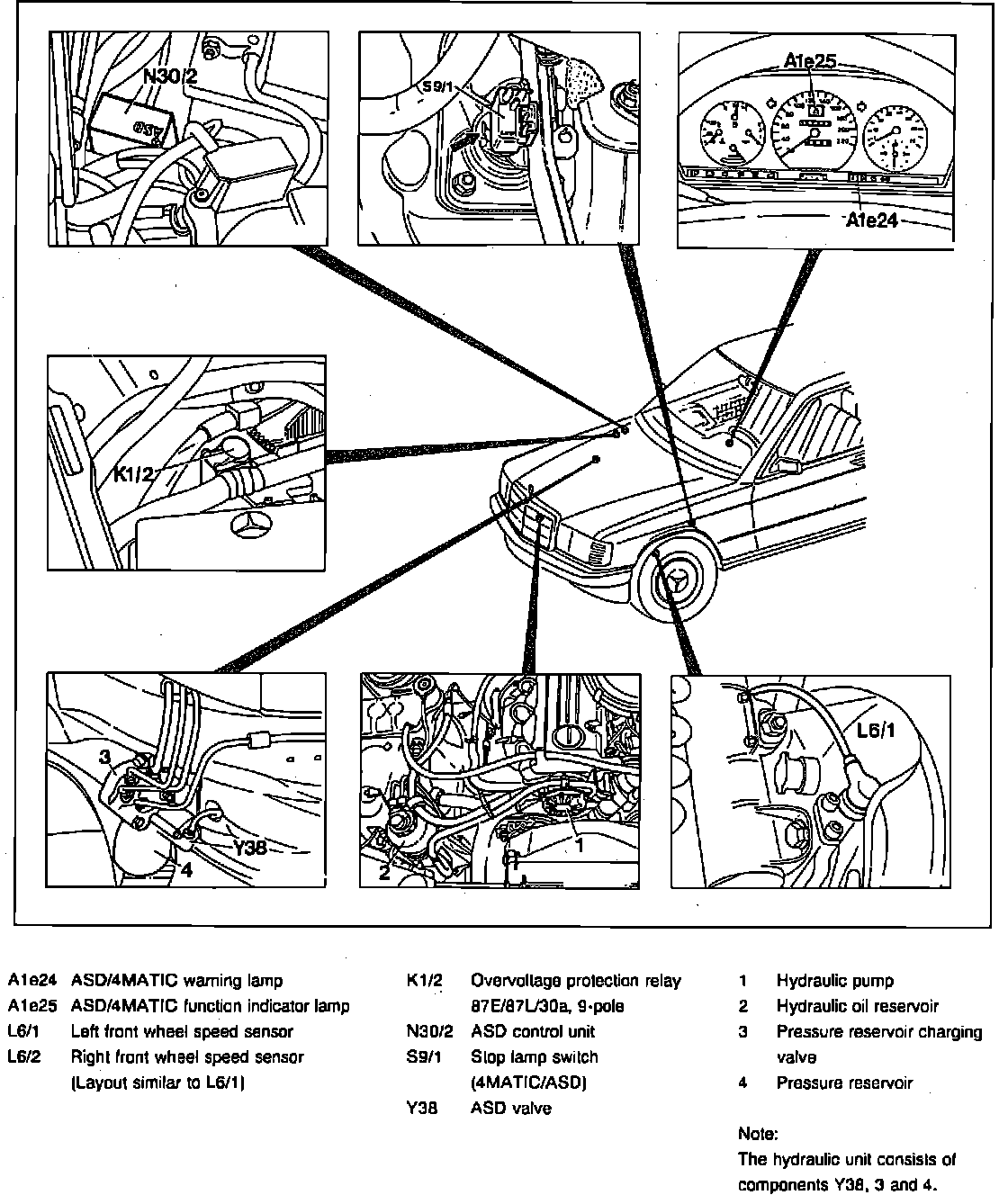

Fig. 1 ASD Component Locations (Part 1 Of 2). 190E 2.3L & 190E 2.3L 190E 2.3L & 190E 2.3L W/Man. Trans.:



Fig. 1 ASD Component Locations (Part 2 Of 2). 190E 2.3L & 190E 2.6L w/Man. Trans.:
