Water Pump - Production Change

9226mercedes01

REF. NO.
MBNA 20/10A


TO:
OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE:
March 1992


SUBJECT:
A. WATER PUMP DRAIN HOSE
B. ENGINE 102 WATER PUMP
C. ENGINE 119 SHAFT SEAL SET FOR WATER PUMP





A. WATER PUMP DRAIN HOSE

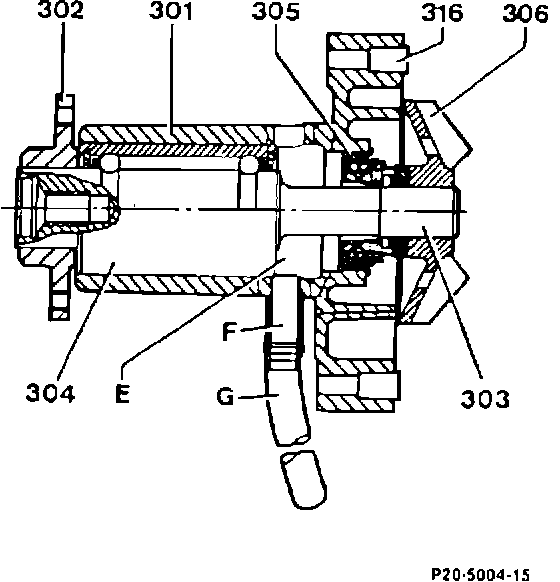

A drain tube (F) and hose (G) are installed in the water pump lower vent bore on the following models:
OM 602, 603 as of 12/90
M 102 as of 11/91
M 104.99 (W 140 only) as of 8/91
M 104.98 (R 129, C 124) as of 10/91
M 119 as of 11/91
M 120 as of 4/91
Installation of this drain on M 103 water pumps will enter production soon.

This drain hose will prevent the retention of droplets, moisture or residue at the water pump vent hole.

Note:
Traces of coolant residue or moisture are not considered "leakage." If coolant did not have to be added to the coolant reservoir between service intervals, a water pump replacement is not justified. A small amount of coolant in the groove of the pump seal is required for lubrication of the seal. Coolant droplets forming at the vent hole/drain hose dry, leaving a distinct residue from the high solid matter content of the coolant. This is particularly evident on vehicles used for short distance driving with the engine started and stopped frequently.


A water pump should only be replaced if it is clearly visible that coolant is continuously dripping from the vent hole or from the drain hose on newly built water pumps.

Water pumps returned with a claim of leaking will be checked very thoroughly, and warranty claims may be rejected if a pump is found in acceptable working order.


B. ENGINE 102 WATER PUMP

Effective April 1991 there is a new threaded hole (M14 x 1.5, previously M18 x 1.5) in the water pump housing. The temperature sensor for intake manifold preheater now threads directly into the water pump housing (previously through a reducer).

Parts Information
Part Description Part Number

Water pump, previous version 102 200 39 01
Water pump, latest version 102 200 49 01


Effective Chassis End Number

Model Engine Manual Transmission Automatic Transmission

201.028 102.985 042647 095692


C. ENGINE 119 SHAFT SEAL SET FOR WATER PUMP


After June 1991 the water pump shaft seal was improved by a modified seal material.

New version shaft seal part no.: 000 201 87 19 (Water pump part no. is not affected by the changed seal).


Effective Chassis End Number

Model Engine As of Chassis End Number

129.066 119.960 022371
140.042 119.971 001286
140.051 119.970 002922


Parts Information
Part Description Part Number


New version water pump seal 000 201 87 19
