Windshield - Change of Adhesive For Installation

90mercedes05
TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE: November 1990
REF. NO. 67/20
SUBJECT: CHANGE OF ADHESIVE FOR WINDSHIELD INSTALLATION MODEL 201
As of June 1990 production, polyurethane adhesive is used for the installation of windshields (previously butyl).

In case of repair, the windshield must be installed with the same type of adhesive used originally.

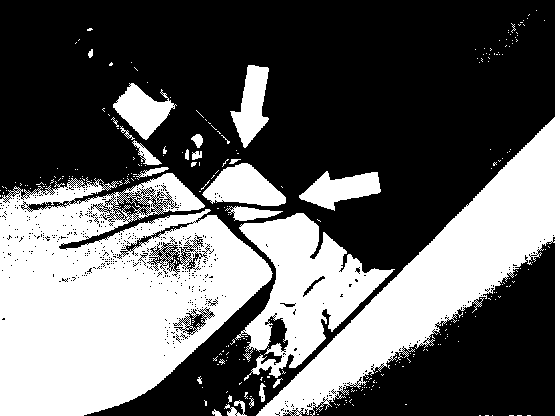

Figure 1:

Distinctive characteristic

Use the butyl adhesive repair kit if a butyl cord with copper wires is visible at the lower left-hand corner of the windshield (arrows, Figure 1).

Use the polyurethane adhesive repair kit, if a butyl cord is not present.
Parts Information

Part Name Part Number

Butyl adhesive repair kit 126 670 01 93
Polyurethane adhesive repair kit 124 670 01 93
