Fan Clutch

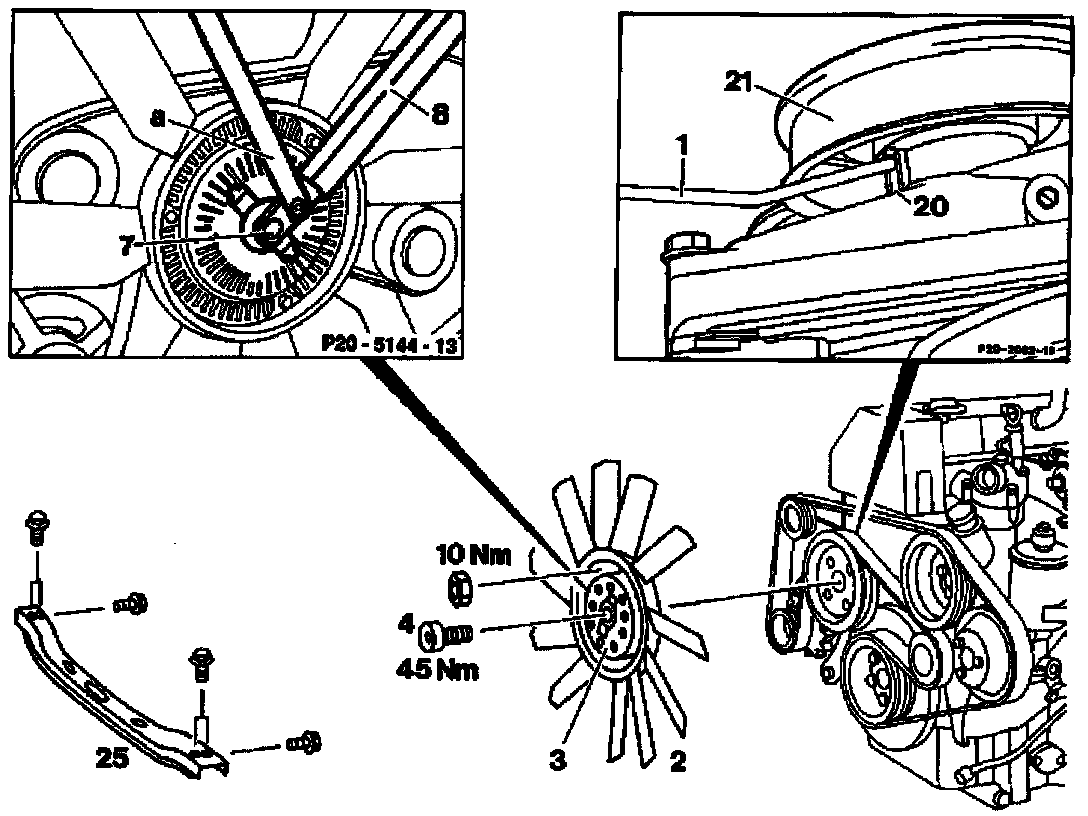

Viscous fan clutch removal / installation






Counter-holder (1)
Fan (2)
Viscous Fan Clutch (3)
Screw (4)
Wrench (7) 120 589 13 07 00
Torque wrench (8) 001 589 72 21 00
Retaining groove (20) of the fan bearing bracket
Belt pulley (21)
Radiator bridge (25)
Handle (a).

Note: The cast part number of the fan (2) must be positioned at the front (radiator side).
