Connector Locations

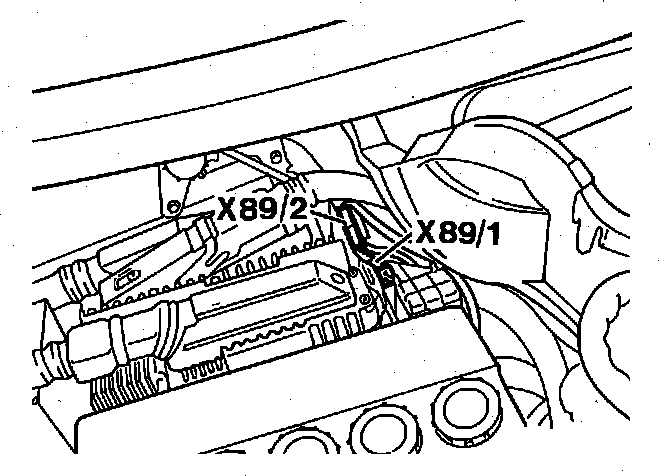

Plug Connector Location:

X89/1 Plug connector, electronic
accelerator control unit to ABS/ASR control unit 2-pole
X89/2 Electronic accelerator control
unit to engine harness, 2-pole

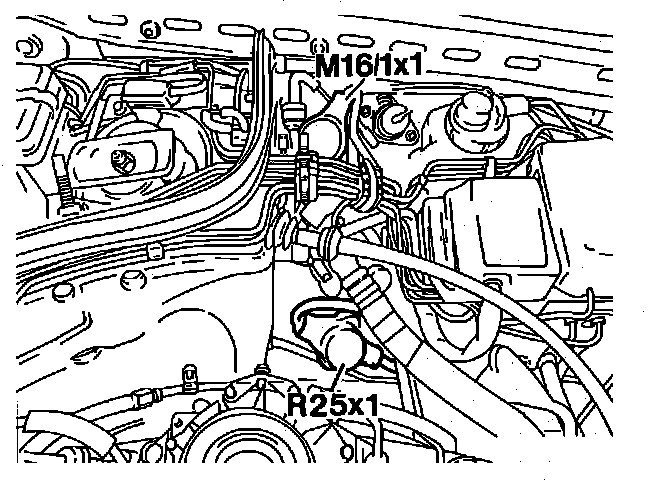

Plug Connector Location:

M16/1x1 Plug connector, electronic
accelerator throttle actuator
A25x1 Plug connector, electronic
accelerator pedal position sensor

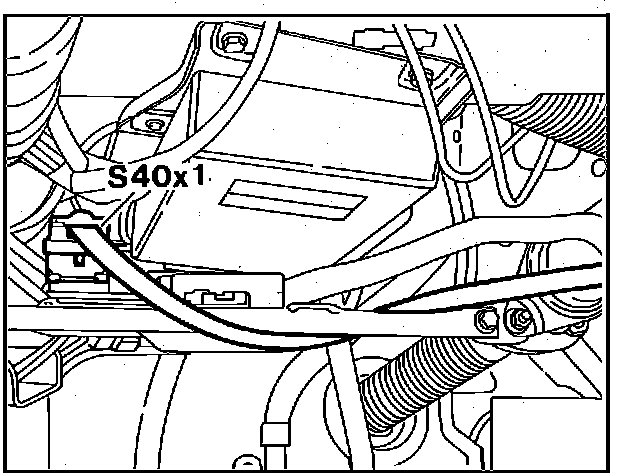

Cruise Control Switch Plug Connector:

S40/1x Cruise control switch plug connector
