System Diagram






���!4-Speed Automatic Transmission:

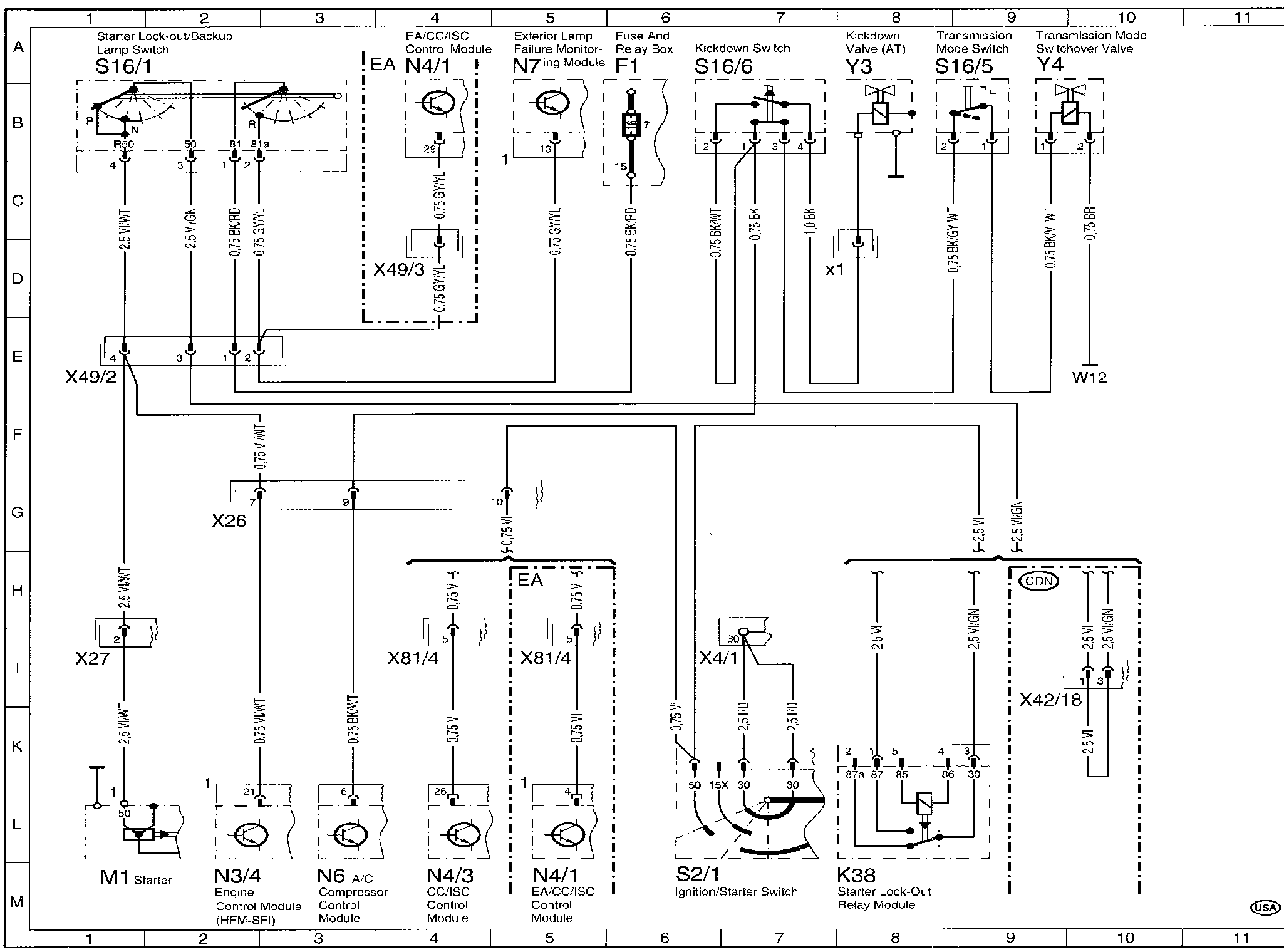

Wiring Diagram

4-Speed Automatic Transmission - Component Index:




Component Index
