HTP - Leakage [32]
HTP - Leakage [32]
Hydraulic Test Program - Leakage Test

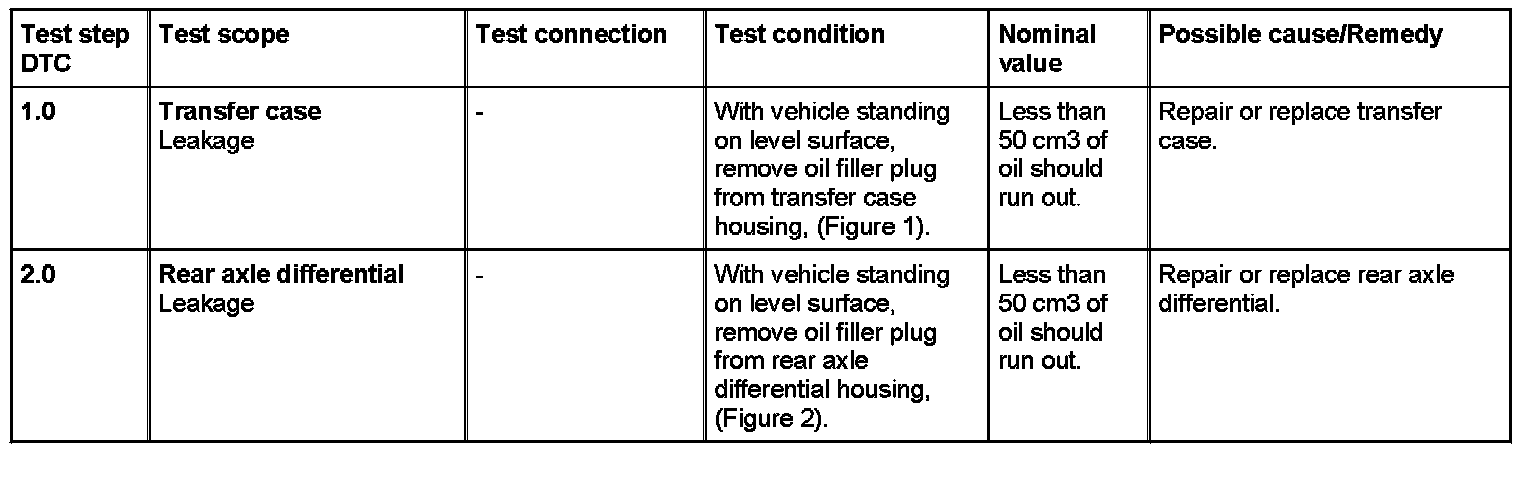

Test Steps 1.0 - 2.0:
Figure 1:
Figure 2:
