M/T - Front Cover Update & Torque Specification Change

TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE: October 1992

REF.NO. 26/25

Modified Front Transmission Cover
Models With Manual Transmissions 717.41/43/45

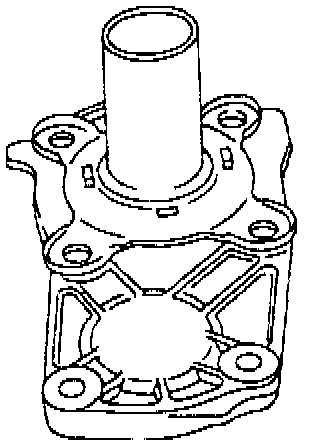

Fig. 1 - Front Transmission Cover With Bearing Tube:

As of April 1991, a modified front transmission cover (Figure 1) has been phased into production. The seal ring is now pressed into the transmission cover, and the bearing tube is bolted to the transmission housing together with the transmission cover.

The tightening torque of the bolts has been changed to 25 ± 3 Nm (previously 20 ± 3 Nm).

The modified front transmission cover may also be installed in transmissions prior to production phase in.

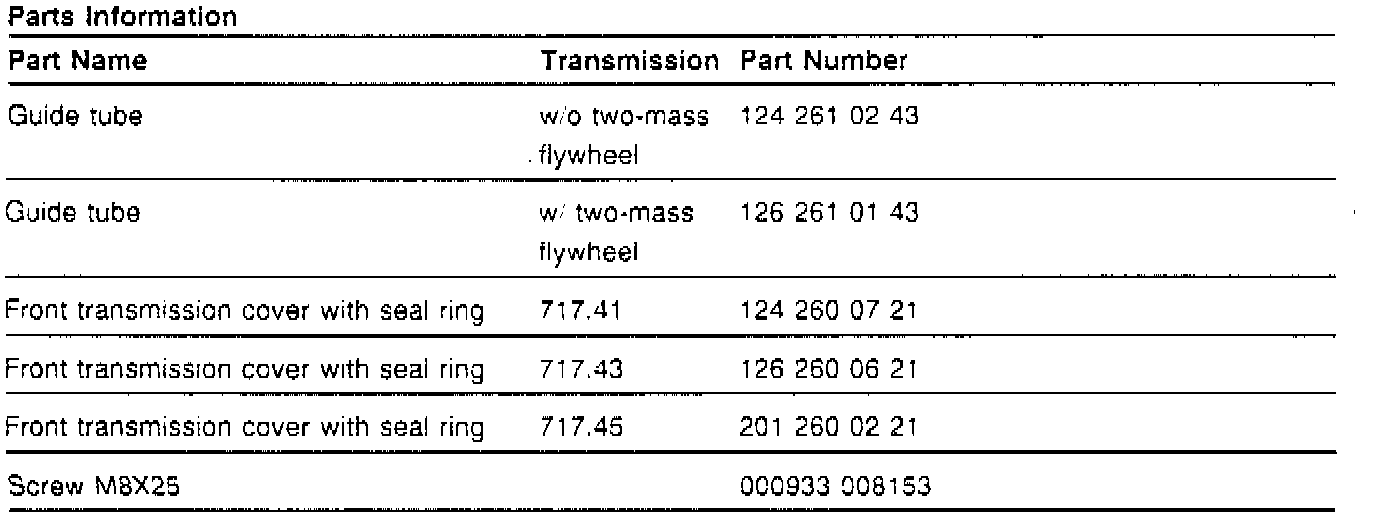

Parts Information
