Connector Locations

Plug Connector Location:

X89/1 Plug connector, electronic
accelerator pedal control unit to ABS/ASR control unit, 2-pole

Plug Connector Location:

X89/2 Plug connector, Electronic
accelerator control unit to engine wiring harness, 2-pole

Plug Connector Location:

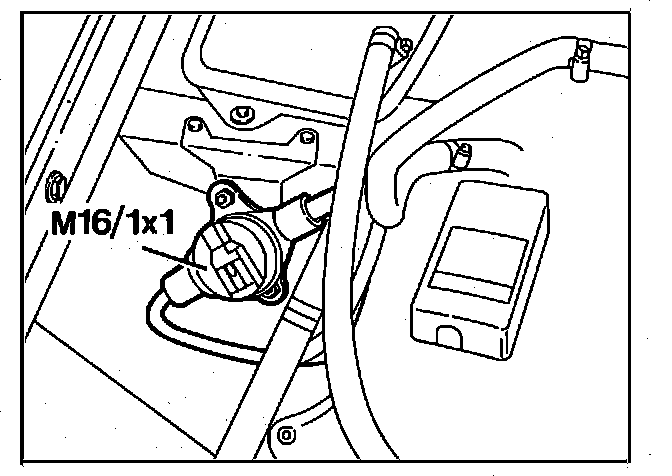

M16/1x1 Plug connector, electronic accelerator throttle actuator

Plug Connector Location:

M16/1x1 Plug connector, electronic accelerator throttle actuator

Plug Connector Location:

R25x1 Plug connector, electronic
accelerator pedal position sensor

Plug Connector Location:

R25x1 Plug connector, electronic
accelerator pedal position sensor
