Mercedes Benz
>>
1991
>>
560SEL (126.039) V8-5.6L (117.968)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

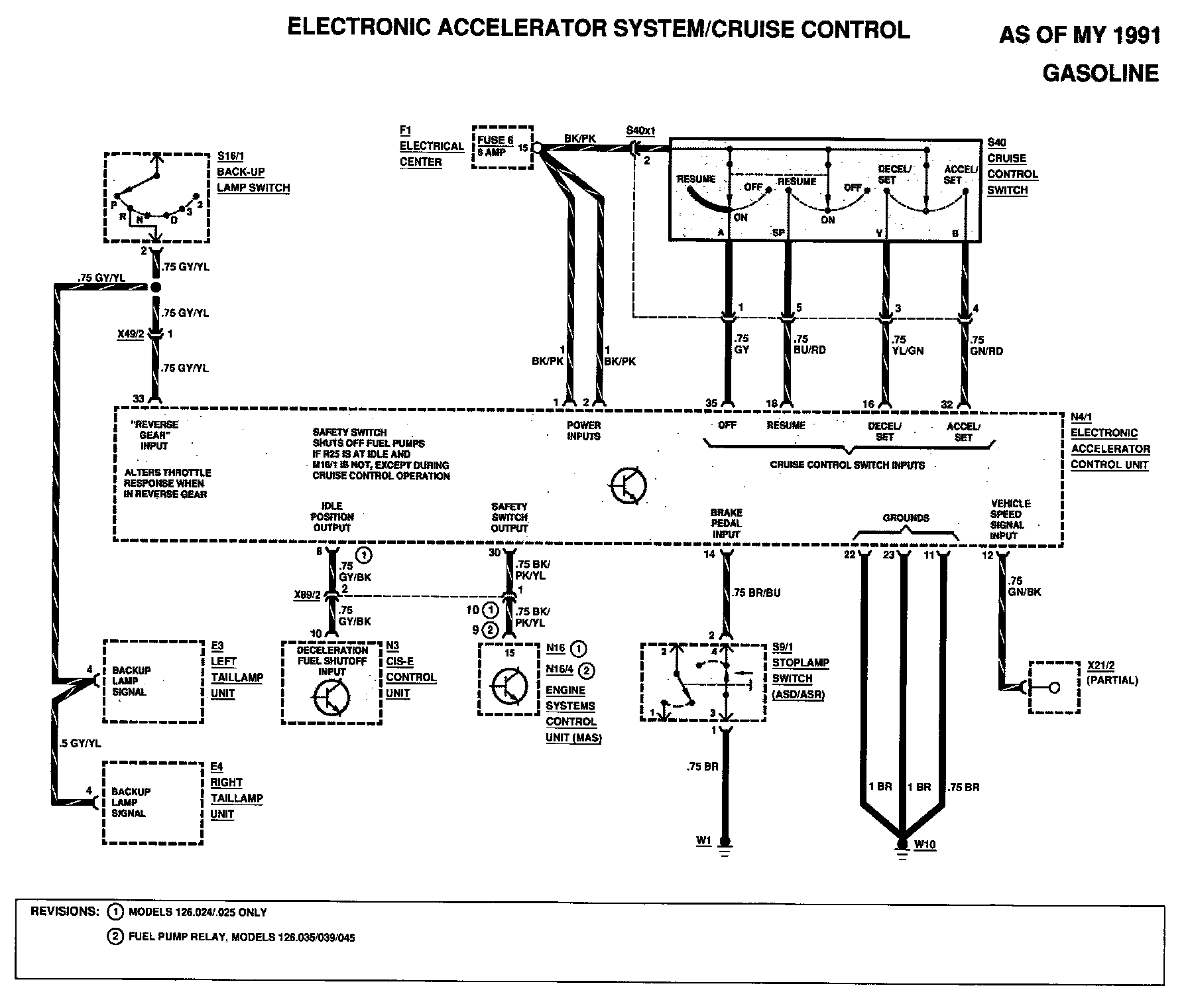

Electronic Accelerator System/Cruise Control
Electronic Accelerator System/Cruise Control
