Altitude Compensator
>>
Testing and Inspection
Altitude Compensator: Testing and Inspection

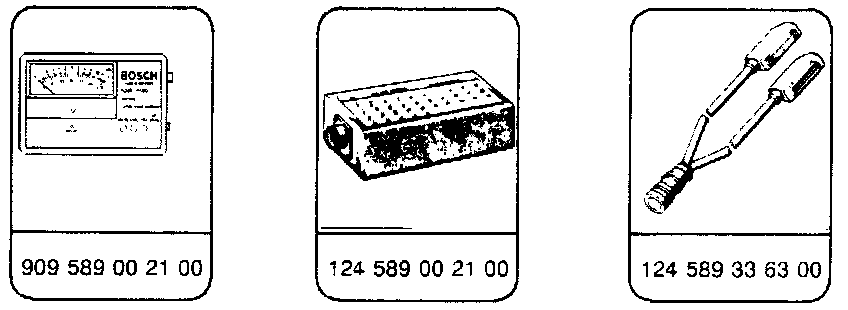

Special Tools

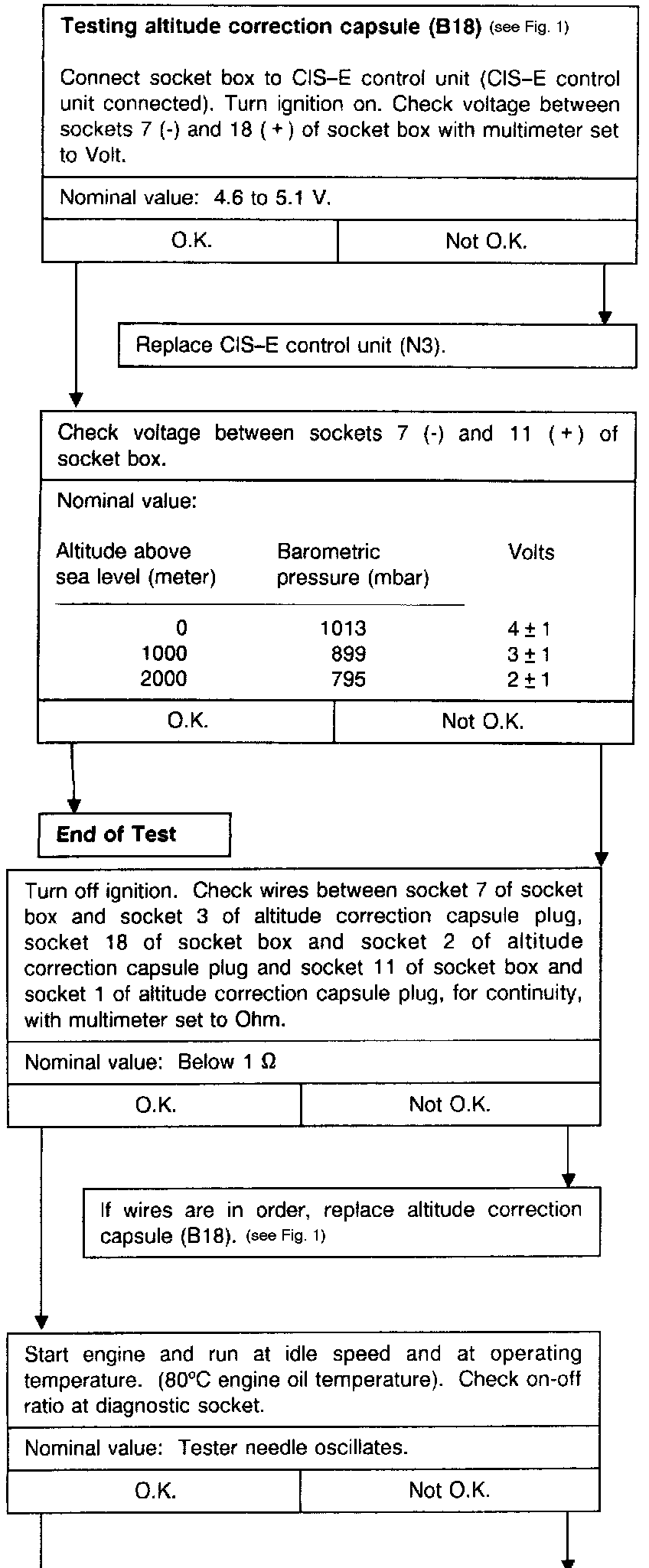

Test Procedure:
Equipment
^
Digital multimeter - SUN DMM-5, Fluke model 23
-
Available through the MBNA Standard Equipment Program
��.:
Fig. 1:
