No Upshift 1-2 or 1-3 With Full Throttle
No Upshift 1-2 or 1-3 With Full Throttle
No Upshift 1-2 or 24 with Full Throttle or Kick-down (engine regulates speed in advance).
Vehicle with engine 111
Cause/remedy:
1.

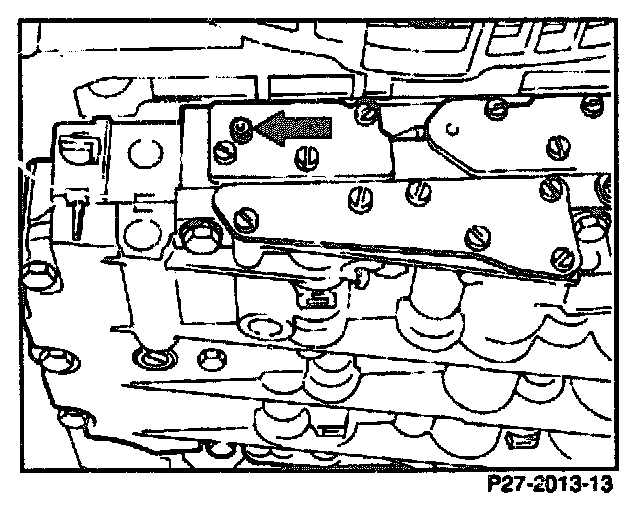

Turn grub screw (arrow) approx. 1 turn clockwise.
