Home >> Mercedes Benz >> 1992 >> 300SE (140.032) L6-3.2L (104.990) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Datalink Connector/Diagnostic Socket PE54.22-U-2000XW

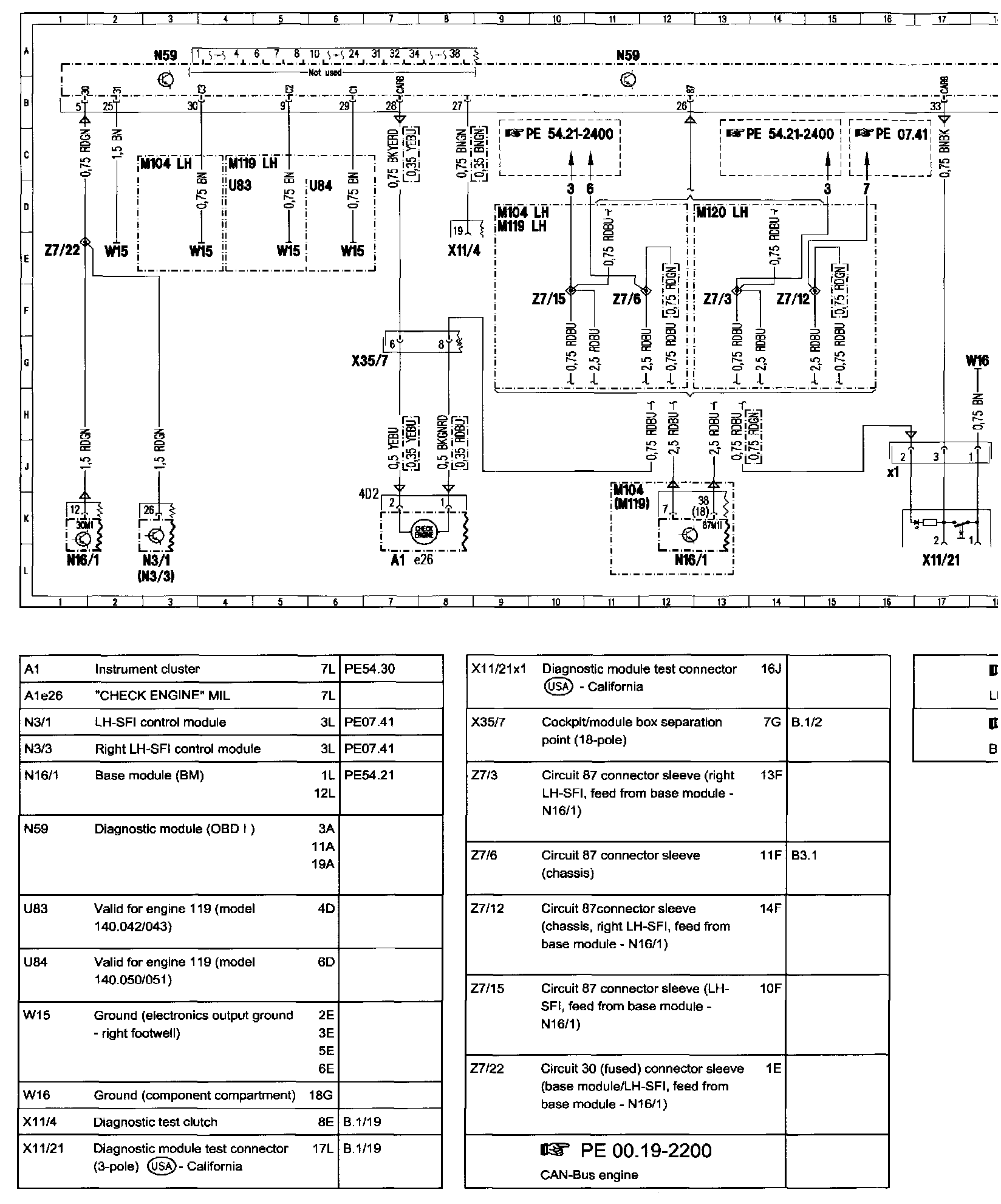

Datalink Connector/Diagnostic Socket PE54.22-U-2000XW

��PE54.22-U-2000XW - OBD I - (California Only):
