Mercedes Benz
>>
1992
>>
300SE (140.032) L6-3.2L (104.990)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>

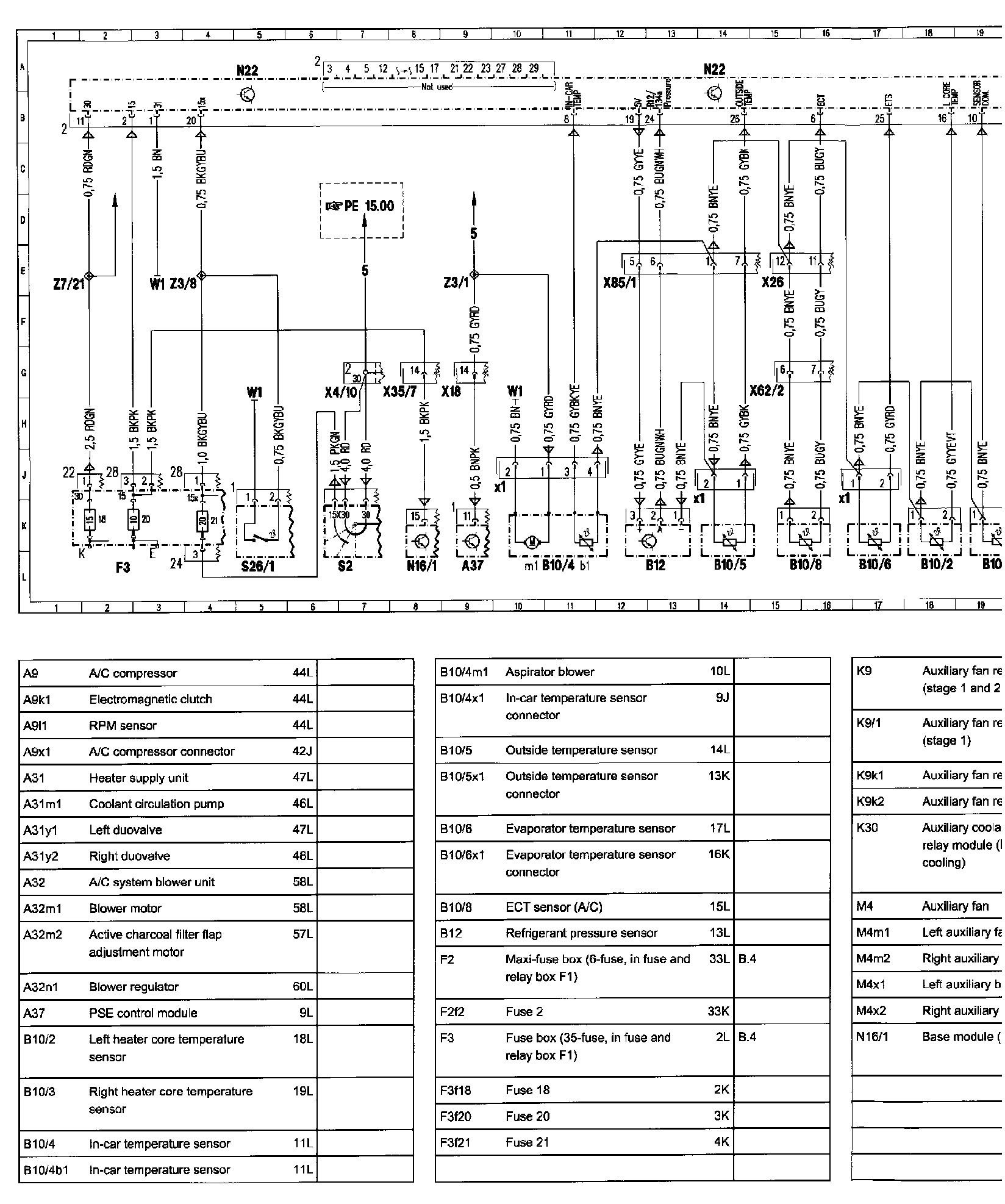

Air Conditioning (Automatic)
Air Conditioning (Automatic)
�8�8q78PE83.40-U-2000-XX - (AAC):
