Connector Locations

X11/4 - Data Link Connector (DTC readout):

X18 - Interior/Taillamp Harness Connector:

X26 - Interior/Engine Connector:

X85/1 - A/C Harness/Engine Harness Connector:

X26/2 - Engine Separation Point Connector:

X29/2 - Center Air Outlet Illumination Intermediate Connector (2 - Pole):

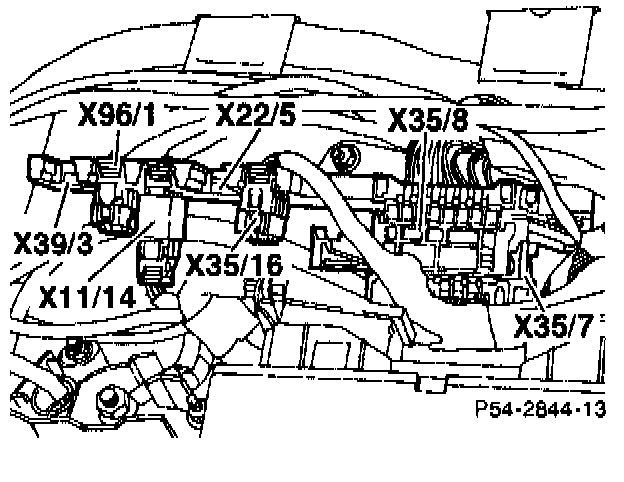

X35/7 - Cockpit/Module Box Separation Point (18 - Pole):

B10/11x1 - Rear Evaporator Temperature Sensor Connector:

N29/2 - Rear A/C Electronic Blower Regulator:

N29/2x1 - Rear A/C Electronic Blower Regulator Connector (4 - Pole):

X35/7 - Cockpit/Module Box Separation Point (18 - Pole):

Y67x1 - Rear Refrigerant Shut-off Valve Connector:
