Distributor Ignition/Knock Sensor System (DI/KSS)
Distributor Ignition/Knock Sensor System (DI/KSS)

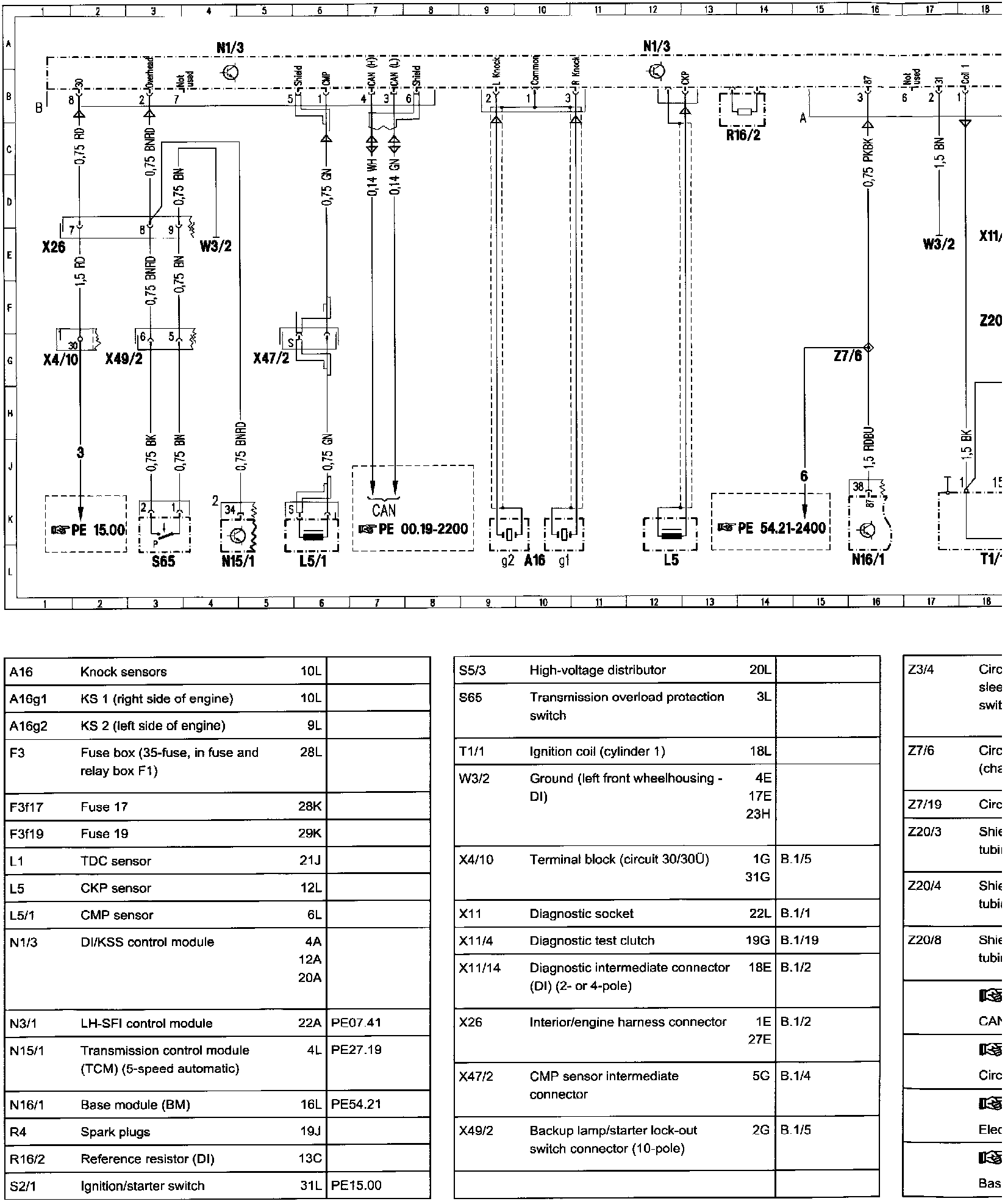

pM� PE15.12-U-2000-99XC - Distributor Ignition/Knock Sensor System (DI/KSS):
