Headlamp Cleaning System (HCS) PE82.15-U-2000XW
Headlamp Cleaning System (HCS) PE82.15-U-2000XW

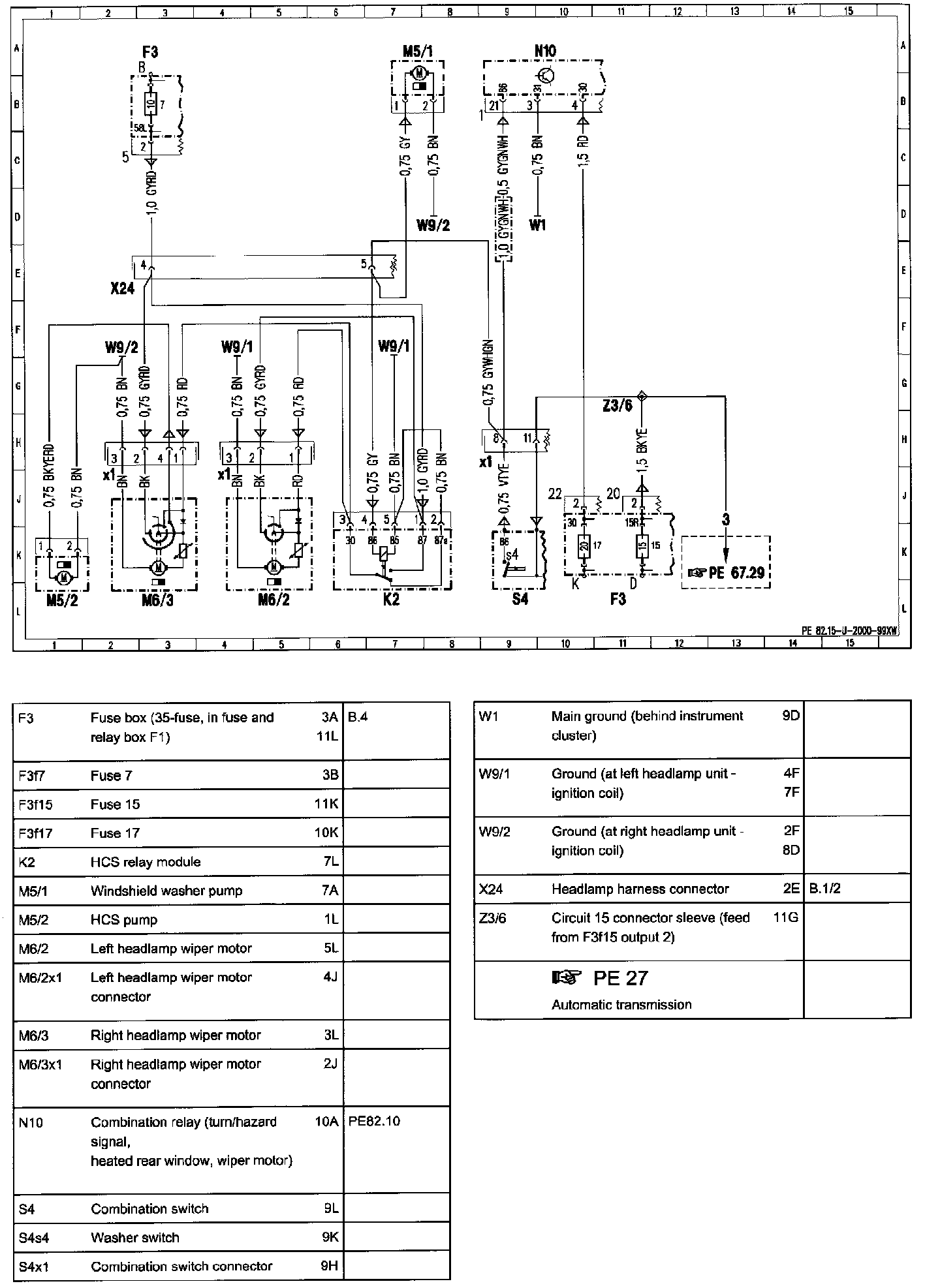

PE82.15-U-2000XW - Headlamp Cleaning System (HCS):
