Cellular Phone - Installation Instructions: Overview
REF. NO. MBNA 82/55bTO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS
DATE: December 1992 (supersedes S.I. MBNA 82/55a, Oct. 1991)
Revision:
To all W.I.'s, NAM programming for Models 129/140 and new W.I. 281.
SUBJECT:
ALL M.Y. 1992 MODELS
MERCEDES-BENZ INTEGRATED CELLULAR TELEPHONE
Included in this Service Information are four separate Work Instructions
^ W.I. 263: MODELS 124, 201
INSTALLATION OF CELLULAR TELEPHONE SYSTEM
^ W.I. 281: MODEL 124.066
INSTALLATION OF CELLULAR TELEPHONE SYSTEM
^ W.I. 264: MODELS 129, 140
INSTALLATION OF CELLULAR TELEPHONE SYSTEM
^ W.I. 266: MODELS 124, 129, 201
SUBSEQUENT INSTALLATION OF TRI-BAND ANTENNA
Copies of each guide are not included.
^ Cellular Telephone NAM Programming Guide for Model 124, 201
^ Cellular Telephone NAM Programming Guide for Model 129, 140
^ Certificate of Cellular Telephone Installation/Warranty Registration.
Form Ordering Information
Additional copies of the three items may be ordered from Service and Parts Literature via the M-B Net System.
Work Instructions # 263 and 264 describe the detailed procedure for installing a Mercedes-Benz integrated cellular telephone system in any vehicle as of M.Y. 1992.
Note:
With the introduction of model year production start-up, all M.Y. 1992 vehicles are prewired for cellular telephones. Models 129.076 (600SL), 140.057 (600SEL) and 140.076 (600SEC) are pre-equipped with a cellular telephone from the VPC and merely require NAM Programming.
Effective Serial Number

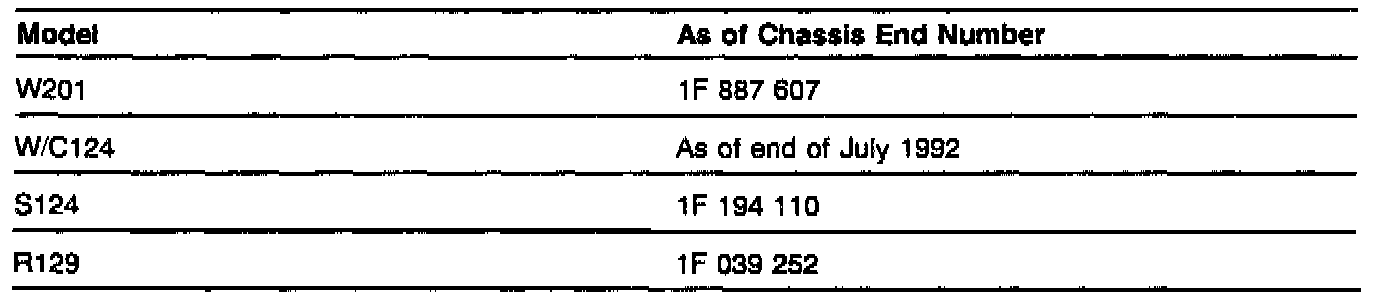

On MY 1992 vehicles up to the chassis end numbers listed in the table, the tri-band antenna was not installed in production.
Subsequent installation of the tri-band antenna should only be performed when a customer requests installation of an MB integrated cellular telephone.
Work Instruction # 266 describes the procedure for retrofitting a tri-band antenna (AM/FM/Cellular).
IMPORTANT!
The Certificate of Cellular Telephone Installation/Warranty Registration MUST BE FELLED OUT and distributed as per the instructions.
The pink copy of the Certificate of Cellular Telephone Installation/Warranty Registration must be mailed to:
Mercedes-Benz of North America, Inc.
One Mercedes Drive
Montvale NJ 07645
Attn: Warranty Department
In order to register the cellular telephone. If the card is not filled out and mailed in, future warranty claims for the telephone will be denied.
A telephone Installation Kit parts listing is included at the end of each Work Instruction.
To order individual pieces of the telephone kits for replacement purposes, please refer to the Parts Information binder.
