Cellular Phone - Updated Installation Kits
REF. NO. MBNA 82/83ADATE: May 1996
(supercedes S.I. MBNA 82/83, September 1995)
TO: ALL MERCEDES-BENZ PASSENGER CAR DEALERS
Revision:
Part number for transceiver cushion has been changed
SUBJECT:
MODELS 129, 140, MODEL YEARS 1992 - 1994 SUPERCESSIONS AND SUBSTITUTIONS FOR CELLULAR TELEPHONE (CTEL) COMPONENTS
Since the introduction of the Mercedes-Benz cellular telephone in model year 1992, there have been several changes in the telephone system due to vehicular, technological and performance improvements. Due to these changes, there are a significant number of kits and components which are either obsolete or no longer in production.
This Service Information addresses these changes, and offers the most efficient and cost-effective alternatives to replace these parts, in most cases using the latest version parts. The following tables list the model application, specify all of the parts required to install a telephone, and reference the appropriate Work Instructions. Please note that, due to an increase in the number of parts required for installations in earlier model year vehicles, the cost may be higher than the original kit price.
Note:
These kits should only be used for installations. If performing warranty repairs only replace the failed part.
Model 129, Model Year 1992-1993

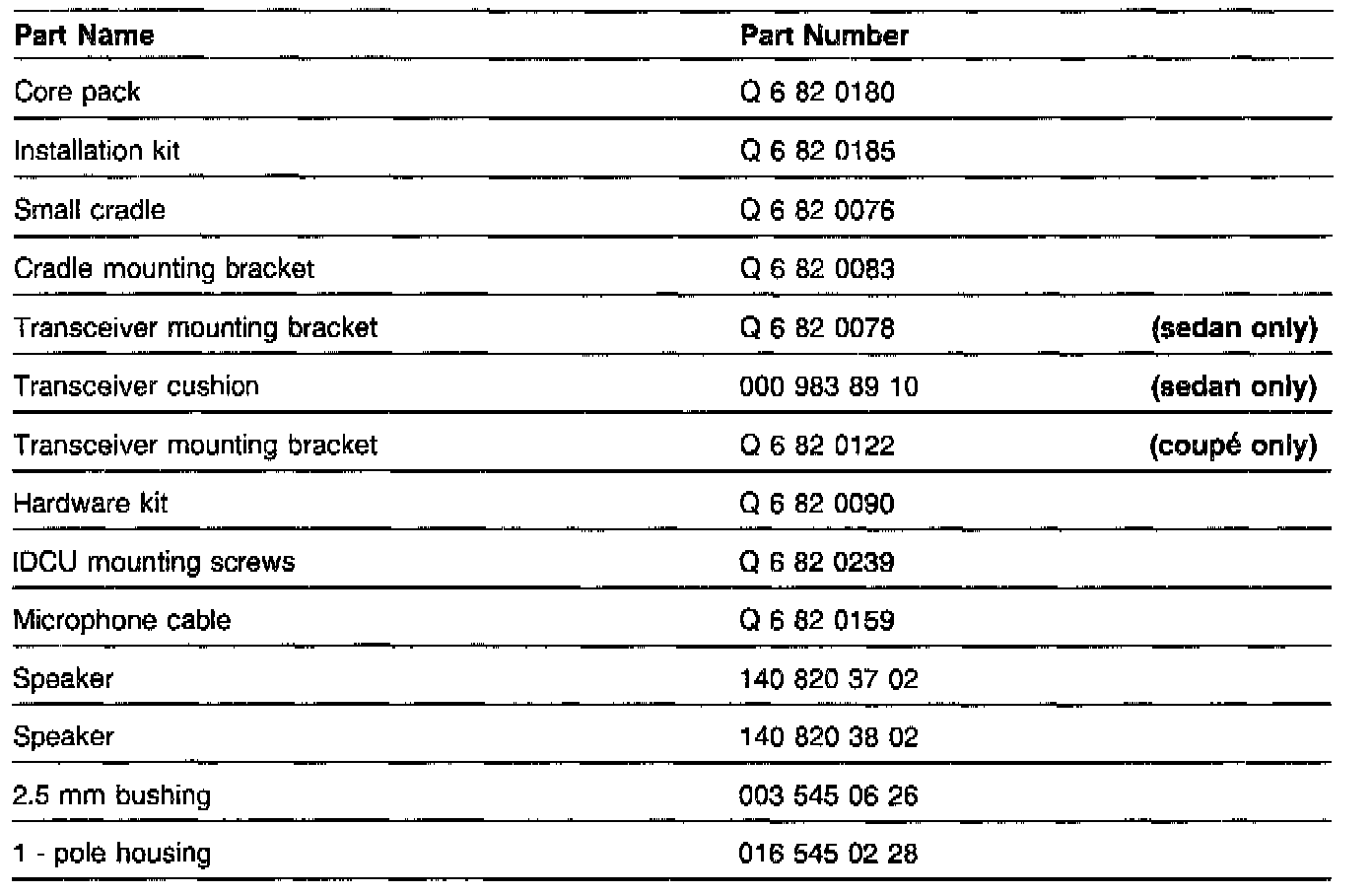

Parts Information
Refer to Work Instructions 82/284a, from December 1992 while observing the part numbers.
Note:
^ The TRU junction box is replaced by the voice recognition module, and the system will have voice activation capabilities.
^ The microphone cable must be routed from the eyeglass box, behind the instrument cluster, up the left A-pillar to the header next to the dome lamp. The larger harness connector connects to the microphone in the headliner.
^ The antenna control lead connector must be changed from the flat ISO connector to a 2.5 mm diameter round bushing.
Model 129, Model Year 1994

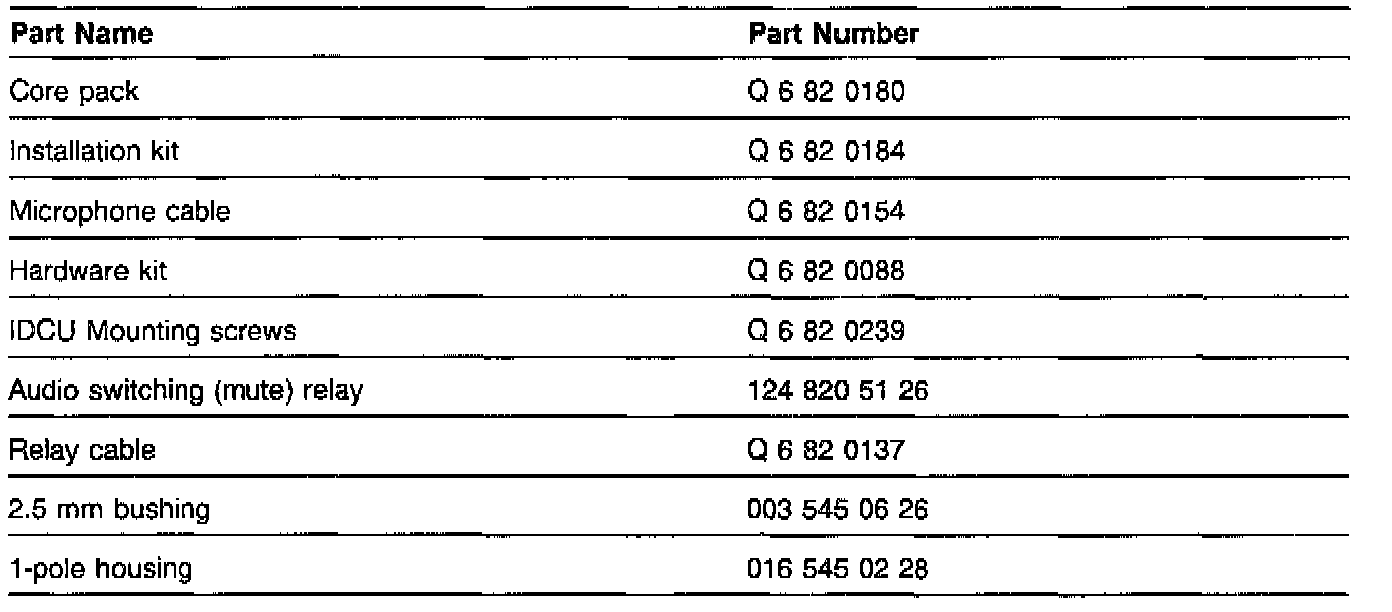

Parts Information
Refer to Work Instructions 82/302a, from November 1993 while observing the part numbers.
Model 140, Model Year 1992 (without rear A/C)
Refer to Work Instructions 82/264a from December 1992 while observing the part numbers.
Note:
^ The TRU junction box is replaced by the voice recognition module, and the system will have voice activation capabilities.
^ The microphone cable must be routed from the eyeglass box, behind the instrument cluster, up the left A-pillar to the header next to the dome lamp. The larger harness connector connects to the microphone in the headliner.
^ The antenna control lead connector must be changed from the flat ISO connector to a 2.5 mm diameter round bushing.
^ Transceiver cushion Q 6 82 0084 has been replaced by 000 983 89 10 (sold by the meter). Adhere a strip of felt to the transceiver body adjacent to the rear fender, (refer to W.I. 82/264a, page 10, step B3).
Model 140, Model Year 1992 (with rear A/C) and Model Year 1993

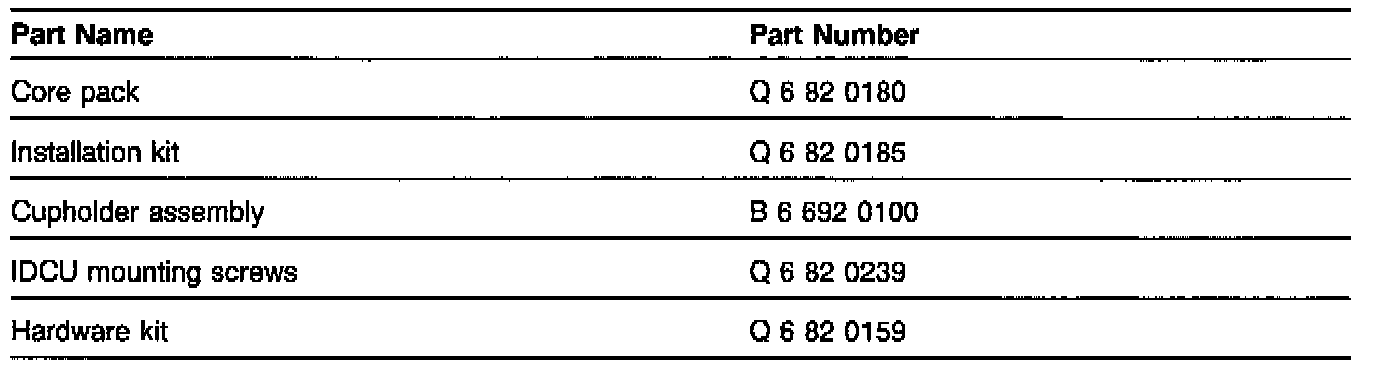

Parts Information
Refer to Work Instructions 82/264a from December 1992 while observing the part numbers.
Note:
^ The TRU junction box is replaced by the voice recognition module, and the system will have voice activation capabilities.
^ The microphone cable must be routed from the eyeglass box, behind the instrument cluster, up to the left A-pillar to the header next to the dome lamp. The larger harness connector connects to the microphone in the headliner.
^ The antenna control lead connector must be changed from the flat ISO connector to a 2.5 mm diameter round bushing.
^ Transceiver cushion Q 6 82 0084 has been replaced by 000 983 89 10 (sold by the meter). Adhere a strip of felt to the transceiver body adjacent to the rear fender, (refer to W.I. 821264a, page 10, step B3).
Model 140, Model Year 1994
Parts Information
Refer to Work Instructions 82/302a from November 1993 while observing the part numbers.
Note:
The TRU junction box is replaced by the voice recognition module, and the system will have voice activation capabilities.
